316L Stainless Steel Compression fitting to tube socket welding head

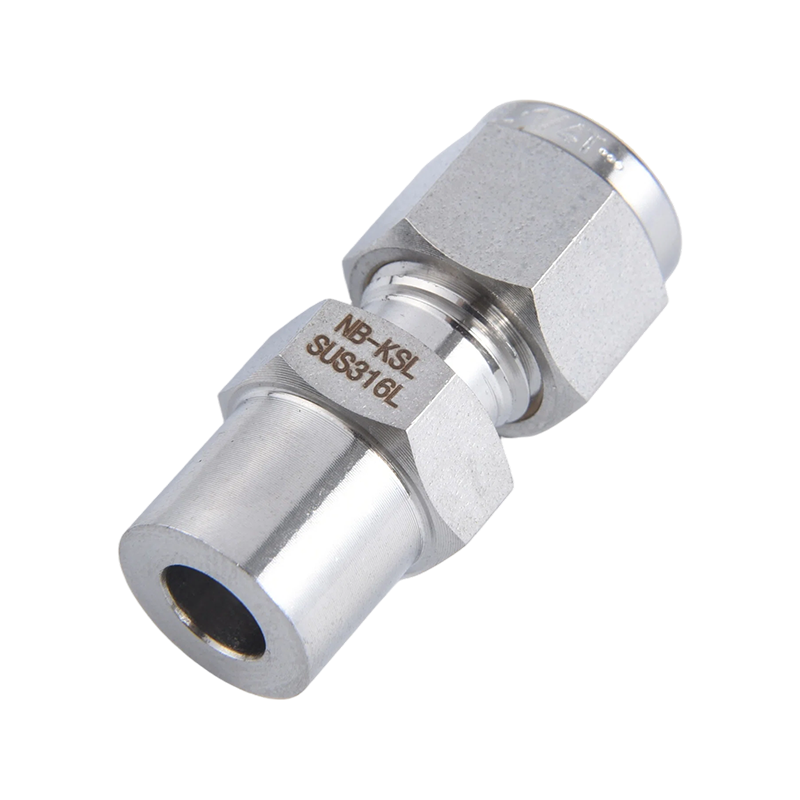

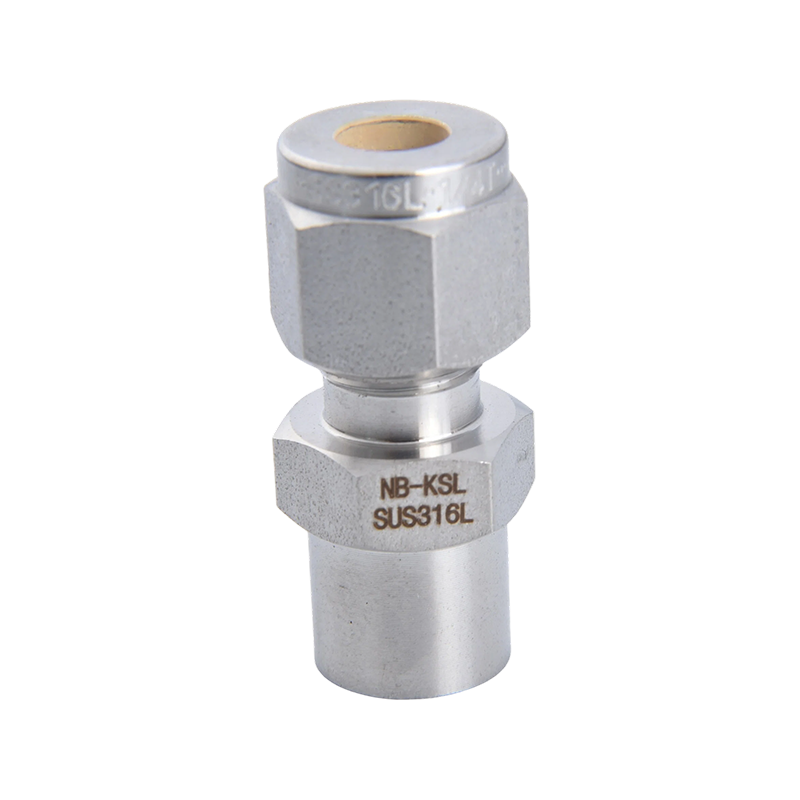

The 316L Stainless Steel Compression Fitting to Tube Socket Welding Head is a high-performance connection element designed specifically for demanding industrial piping systems. Its design combines the advantages of compression fittings and tube socket welding heads. The compression fitting section uses a nut and double inner tube rings to achieve a tight clamping and sealing of the pipe. Some models can also be equipped with fluororubber or PTFE sealing rings to enhance sealing performance, making it particularly suitable for high-pressure or high-purity media environments. The tube socket welding head section uses a high-precision welded sleeve, forming a high-strength mechanical connection to the pipe end via TIG or MIG welding processes. The internal weld seam design features a smooth transition, effectively reducing fluid turbulence and media buildup, making it suitable for systems with high cleanliness requirements.

  • Description
  • Contact Us

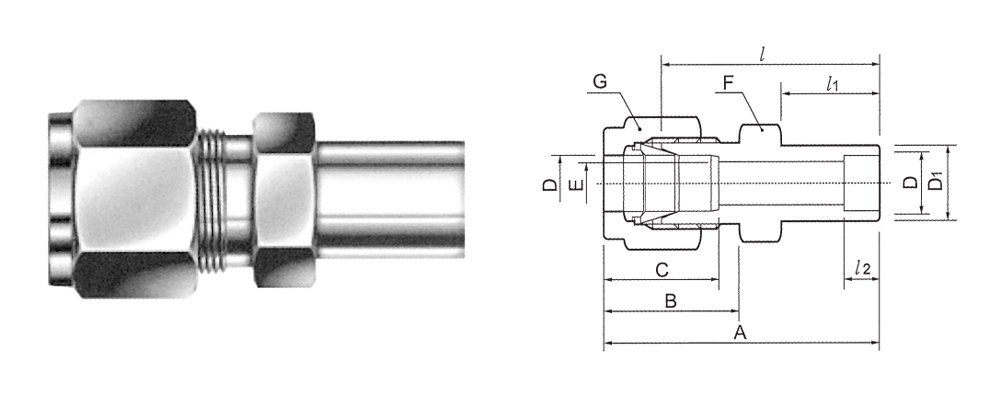

TUBE SOCKET WELD CONNECTOR

Connects fractional tube

  TUBE O.D D inch mm

D1

CATALOG
NUMBER

A

B

C

E

F

G

/1

/2

3.17

7.8

DSW-01-1

29.9

16.5

14

2.4

12

12

22.4

8.6

6.4

6.35

11.1

DSW-02-2

34

17.8

15.8

4.8

12

14

26.2

10.4

7.8

9.52

15.7

DSW-03-3

37.8

19.6

19.6

7.1

16

17

30.2

12

9.7

12.7

19

DSW-04-4

41.2

22.2

23.4

10.4

22

22

31

12

12.7

19.05

26.7

DSW-06-6

43.7

22.4

24.4

15.7

27

30

33.3

12

14.2

25.4

33.3

DSW-08-8

53.1

27

31.7

22.4

35

38

40.4

14.2

19
