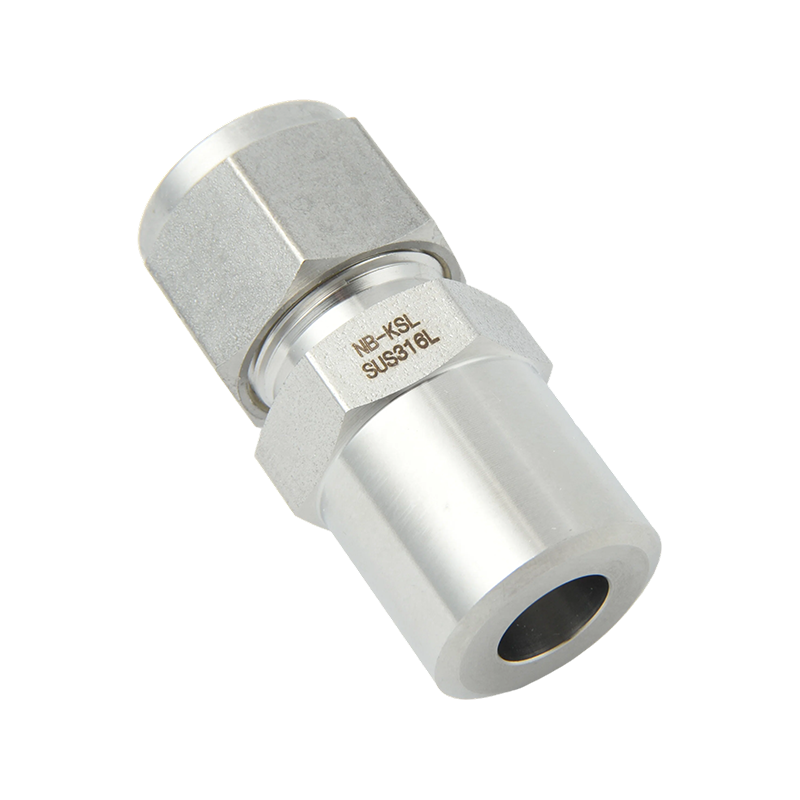

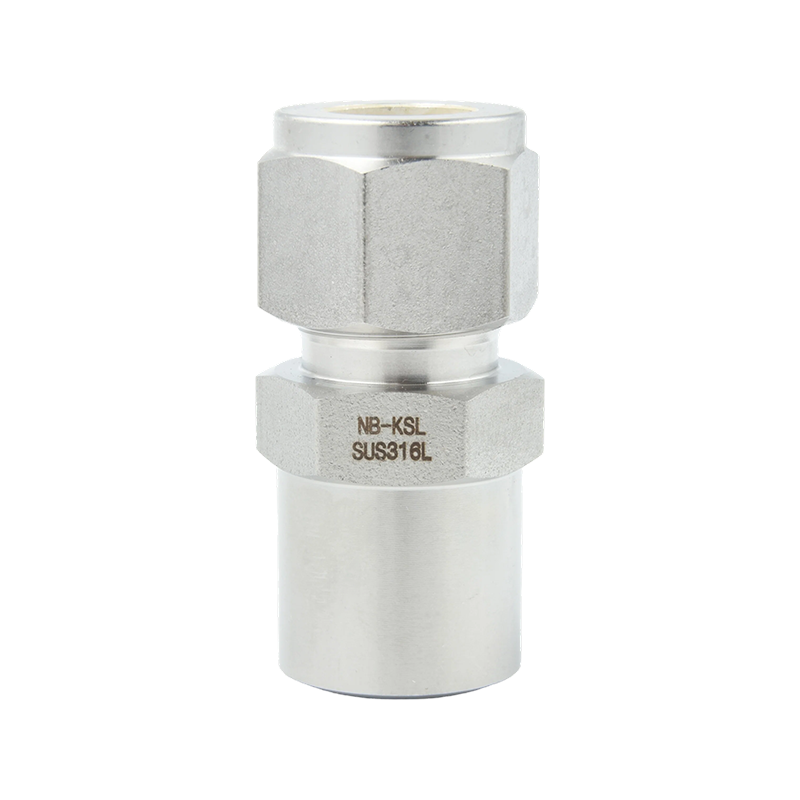

316L Stainless Steel Compression fitting to PIPE pipe butt weld joint

This product is made of 316L stainless steel, a low-carbon austenitic stainless steel (≤0.03% C). The low carbon content of 316L significantly reduces the risk of intergranular corrosion after welding, making this fitting suitable for harsh chemical processes and high-purity fluid transport systems. The compression fitting end consists of three main parts: a pressure ring that compresses the pipe through threads to form a tight metal-to-metal seal; a nut that tightens the pressure ring through threads to secure the pipe to the fitting; and an internal design with a transitional conical surface or stepped hole to ensure that the pressure ring fully compresses the pipe to form a seal when the nut is tightened, while also dispersing stress and preventing pipe deformation.

PREV：No previous product NEXT：316L Stainless Steel Compression fitting type PIPE pipe butt welding elbow

Description
Contact Us

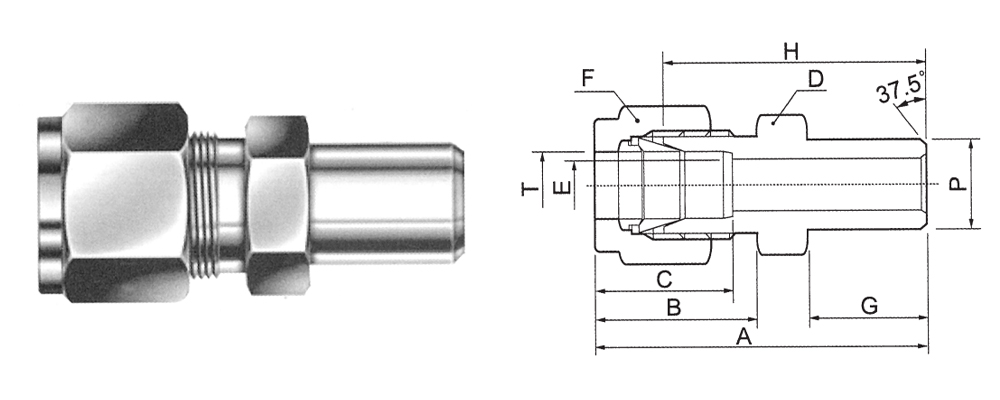

MALE PIPE WELD CONNECTOR

Connects fractional tube to pipe

T TUBE O.D.	MALE PIPE SIZI P O.D. mm	CATALOG NUMBER	A	B	C	D	E	F	G	H
1/8	10.29	ODBW-01-1P	31.4	16.5	14	12	2.4	12	9.7	23.9
1/4	10.29	ODBW-02-1P	35.9	17.8	15.8	14	4.8	14	9.7	25.7
114	13.72	ODBW-02-2P	38	17.8	15.8	14	4.8	14	14.2	30.2
3/8	10.29	ODBW-03-1P	36.6	19.6	19.6	17	5.1	17	9.7	29
3/8	13.72	ODBW-03-2P	40.1	19.6	19.6	17	7.1	17	14.2	32.5
3/8	17.15	ODBW-03-3P	40.1	19.6	19.6	19	7.1	17	14.2	32.5
3/8	21.35	ODBW-03-4P	46.5	19.6	19.6	22	7.1	17	19	38.9
1/2	13.72	ODBW-04-2P	43.5	22.2	23.4	22	7.1	22	14.2	33.3
1/2	17.15	ODBW-04-3P	43.5	22.2	23.4	22	9.5	22	14.2	33.3
1/2	21.35	ODBW-04-4P	49.1	22.2	23.4	22	10.4	22	19	38.9
1/2	26.67	ODBW-04-6P	50.5	22.2	23.4	27	10.4	22	19	40.4
3/4	21.35	ODBW-06-4P	50.7	22.4	24.4	27	10.4	30	19	40.3
3/4	26.67	ODBW-06-6P	50.7	22.4	24.4	27	15.7	30	19	40.3
1"	33.4	ODBW-08-8P	62.7	27	31.7	35	22.4	38	23.9	50

Connects metric tube to pipe

T TUBE O.D.	MALE PIPE SIZI P O.D. mm	CATALOG NUMBER	A	B	C	D	E	F	G	H
3	10.29	ODBW-3-1P	30.1	16	13.5	12	2.4	12	9.7	23.1
4	10.29	ODBW-4-1P	30.8	16.2	13.7	12	3	12	9.7	24.1
6	10.29	ODBW-6-1P	33.5	17.8	15.8	14	4.8	14	9.7	25.7
6	13.72	ODBW-6-2P	38	17.8	15.8	14	4.8	14	14.2	30.2
8	10.29	ODBW-8-1P	34.4	18.7	16.7	14	5.1	16	9.7	26.7
8	13.72	ODBW-8-2P	38.9	18.7	16.7	16	6.4	16	14.2	31.2
8	21.34	ODBW-8-4P	45	18.7	16.7	22	6.4	16	19	37.3
10	13.72	ODBW-10-2P	40.9	19.6	19.6	17	7.1	19	14.2	33.3
10	17.15	ODBW-10-3P	40.9	19.6	19.6	19	7.9	19	14.2	33.3
10	21.34	ODBW-10-4P	45.7	19.6	19.6	22	7.9	19	19	38.1
12	13.72	ODBW-12-2P	44.1	22.8	23.8	22	7.1	22	14.2	33.3
12	17.15	ODBW-12-3P	44.1	22.8	23.8	22	9.5	22	14.2	33.3
12	21.34	ODBW-12-4P	49.7	22.8	23.8	22	9.5	22	19	38.9
14	17.15	ODBW-14-3P	44.8	22.8	24.8	24	10.3	27	14.2	34
16	21.34	ODBW-16-4P	49.3	22.4	24.4	24	12.7	27	19	38.9
16	26.67	ODBW-16-6P	50.7	22.4	24.4	27	12.7	27	19	40.3
18	21.34	ODBW-18-4P	51.2	22.8	24.8	27	10.4	30	19	40.4
20	26.67	ODBW-20-6P	52.7	23.5	25.5	30	15.9	32	19	42.2

All dimensions are in millimeters unless otherwise specified, only for reference subject to change.
