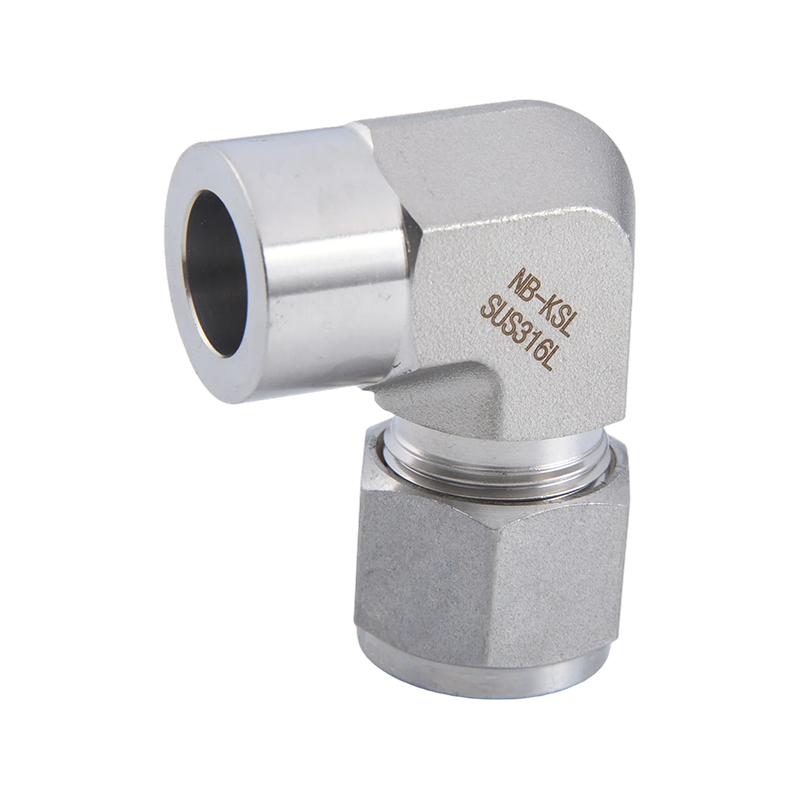

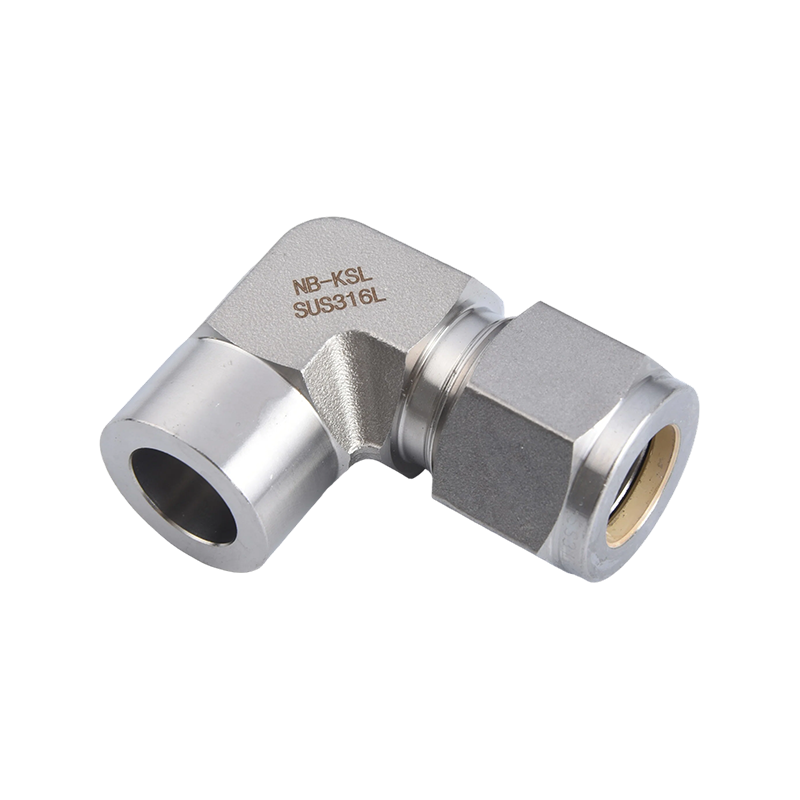

316L Stainless Steel Compression fitting type TUBE pipe socket welding elbow

The product's compression design achieves a high-precision seal through a nut and double ferrule pressure rings, ensuring no leakage under high pressure conditions. It also facilitates quick disassembly and reinstallation, making it particularly suitable for maintenance or system upgrades. The socket weld joint provides a secure, permanent connection to the pipe, suitable for high-pressure applications. It can withstand pressures of ANSI Class 1500 or PN40 and above, while exhibiting low internal fluid resistance. The smooth inner wall design reduces turbulence and pressure loss, improving fluid transport efficiency.

  • Description
  • Contact Us

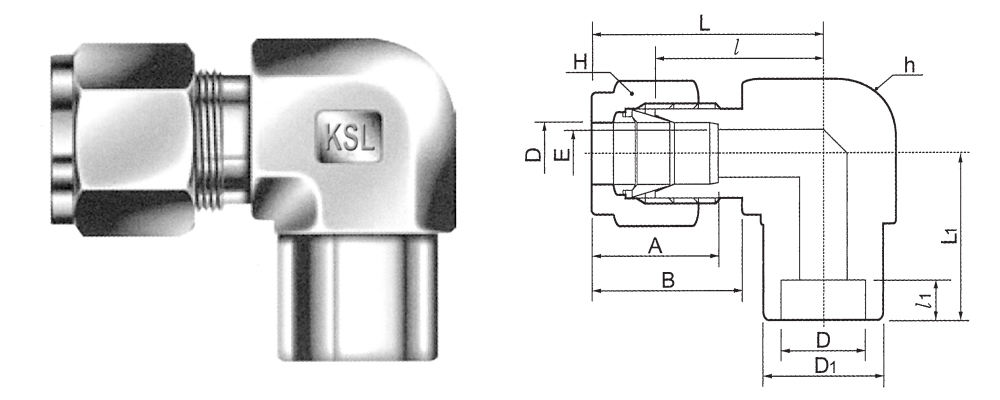

TUBE  SOCKET  WELD  ELBOW

Connects fractional tube

TUBE O.D. D

inch mm

D1

CATALOG
NUMBER

A

B

E

h

H

/

/1

L

L1

6.35

12

ESW-02-2

15.8

17.8

4.8

12

14

19.6

7.8

27.4

119.6

9.52

15.7

ESW-03-3

19.6

19.6

7.1

17

17

23.1

9.7

30.7

23.1

12.7

20.6

ESW-04-4

23.4

22.2

10.4

21

22

25.9

12.7

36.1

25.9

19.05

27

ESW-06-6

24.4

22.4

15.7

28

30

28.5

14.2

38.9

28.5

25.4

35

ESW-08-8

31.7

27

22.4

35

38

35

19

47.7

35
