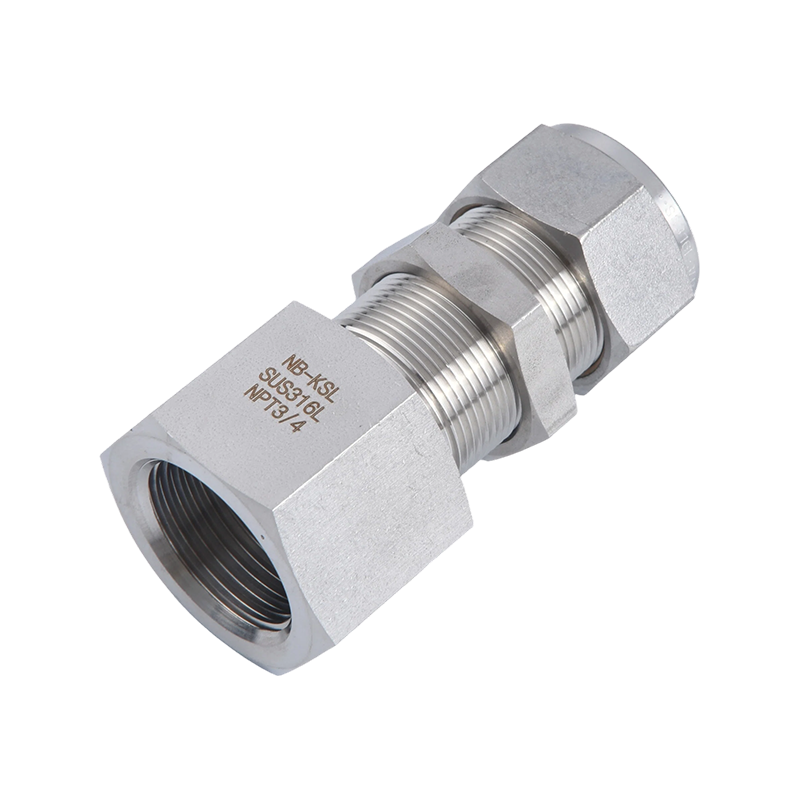

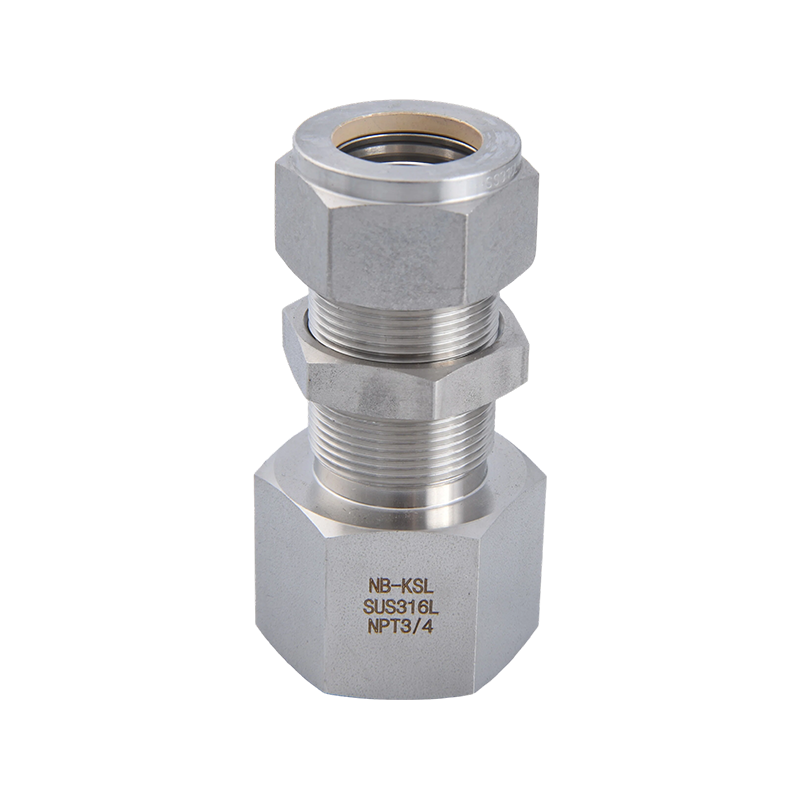

316L Stainless Steel Compression fitting internal thread through plate connector

The 316L Stainless Steel Compression Fitting Internal Thread Through Plate Connector is a professional pipe connection device that combines ferrule sealing technology with a through-plate installation structure. Its main function is to provide a stable, reliable, and leak-proof connection when pipes pass through equipment walls or control boxes, while providing an internal thread interface at the other end for connection with other pipe fittings or instrumentation. The connector body is a one-piece machined structure, with a ferrule connection end at one end and an internal thread connection end at the other, and a through-plate fixing structure in the middle. Its internal flow channels are precision machined to ensure smooth fluid passage and reduce pressure loss and turbulence; the front ferrule forms a seal against the outer wall of the pipe during installation, generating axial compression during tightening to achieve the main sealing function; the rear ferrule mainly enhances the pipe fixing force, preventing the pipe from loosening or falling off under high pressure or vibration environments by creating a radial engagement; the through-plate fixing structure is used to fix the connector to the panel or wall plate, including the external thread section and lock nut or fixing washer, ensuring a secure installation.

  • Description
  • Contact Us

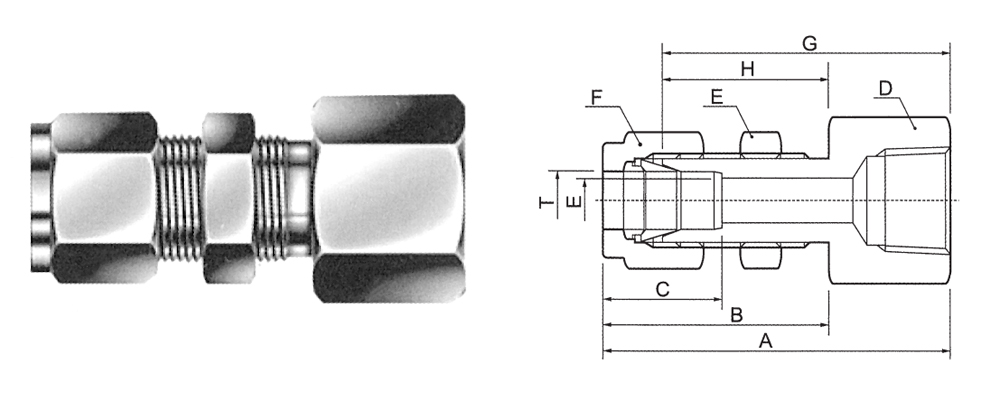

BULKHEAD FEMALE CONNECTOR

(METRIC)

CATALOG NUMBER

T TUBE O.D.

PT-NPT FEMALE PIPE SIZE

A

D

E

F

G

H

PANEL HOLE DRILL

MAX PANEL THICK

BFC-6-1

  1/8

47.4

16

4.8

14

39.6

26.2

11.5

10.2

BFC-6-2

  1/4

52.2

19

4.8

14

44.4

26.2

11.5

10.2

BFC-8-2

  1/4

54.4

19

6.4

16

46.7

28.2

13.1

11.2

BFC-10-4

10

  1/2

61.6

27

7.9

19

54.01

29.4

16.3

11.2

BFC-12-4

12

  1/2

67.2

27

9.5

22

56.4

31.8

19.5

12.7

BFC-14-4

14

  1/4

67.9

27

11.1

27

57.1

32.5

22.8

12.7

BFC-01-1

1/8

  1/8

45.6

14

2.4

12

38.1

24.2

8.3

11.2

BFC-02-1

1/4

  1/8

47.4

16

4.8

14

39.6

26.2

11.5

10.2

BFC-02-2

1/4

  1/4

52.2

19

4.8

14

44.4

26.2

11.5

10.2

BFC-03-2

3/8

  1/4

55.4

19

7.1

17

47.8

29.5

14.7

11.2

BFC-03-3

3/8

  3/8

57

22

7.9

17

49.4

29.5

14.7

11.2

BFC-04-3

1/2

  3/8

61.8

24

10.4

22

51.6

31.8

19.5

12.7

BFC-04-4

1/2

  1/2

66.6

27

10.4

22

56.4

31.8

19.5

12.7

BFC-06-6

3/4

  3/4

74

35

15.7

30

63.6

37.3

26

16.8

All dimensions are in milliliters unless otherwise specified, only for reference subject to change.
