316L Stainless Steel Compression fitting pressure gauge connector

Home / Products / Stainless Steel Tube Fittings / Tube To Female Pipe / 316L Stainless Steel Compression fitting pressure gauge connector

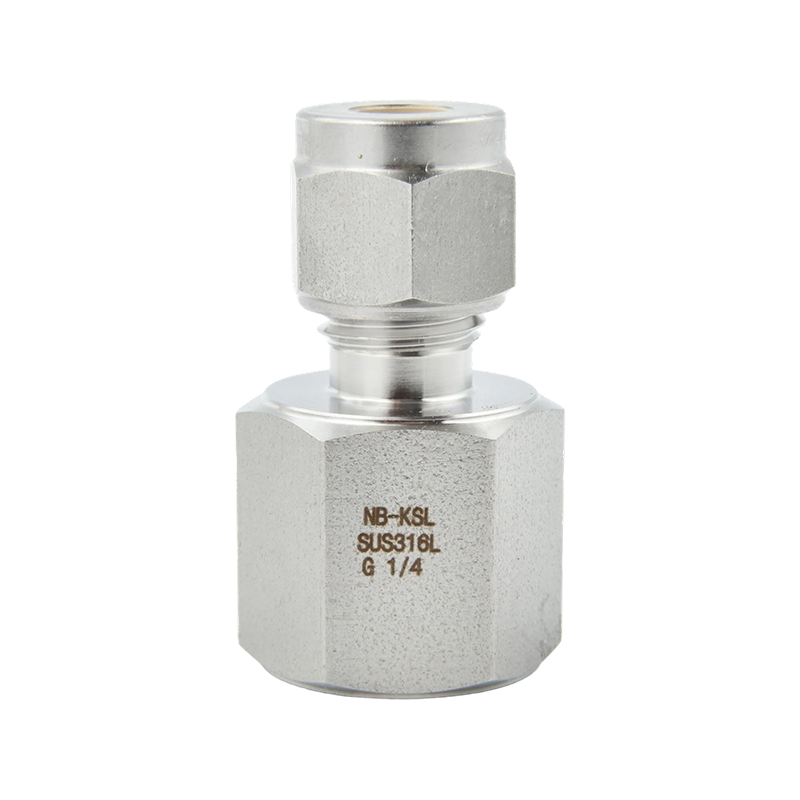

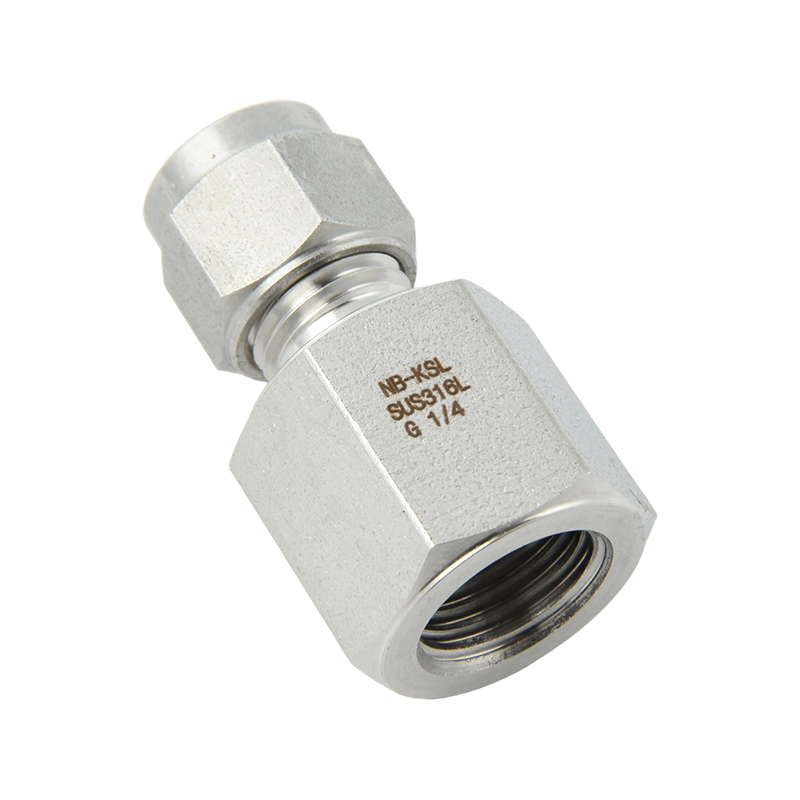

316L Stainless Steel Compression fitting pressure gauge connector

Specifically designed to integrate pressure gauges, transmitters, and other measuring instruments into piping systems, this pressure gauge connector (also known as a gauge adapter) is a critical junction. Manufactured from 316L high-purity stainless steel, it serves as the reliable link between precision instruments and high-pressure tubing.

Core Product Advantages

Instrument-Grade Precision Fit:
The female threaded end is optimized for pressure gauge interfaces (such as G/Parallel or NPT threads). It often features a flat-bottom design to accommodate sealing washers, ensuring easy gauge orientation and a leak-tight seal.

Superior Vibration and Pulsation Dampening:
The double-ferrule mechanical locking technology effectively absorbs mechanical vibrations and pressure transients within the line. This prevents gauge loosening or measurement errors caused by vibration, significantly extending the service life of sensitive instruments.

Ultimate 316L Corrosion Resistance:
The low-carbon 316L material provides excellent resistance to pitting and chemical attack. Its high-cleanliness internal bore prevents particle accumulation that could otherwise contaminate the instrument’s sensing elements.

High-Pressure Safety and Integrity:
With a design pressure rating of up to 6000 psig, the one-piece forged body offers a high safety margin. It ensures an airtight seal even under overpressure conditions, preventing the leakage of hazardous media.

Contact Us Contact Us
PREV：316L Stainless Steel Compression fitting internal thread connector NEXT：316L Stainless Steel Compression fitting internal thread through plate connector
  • Description
  • Contact Us

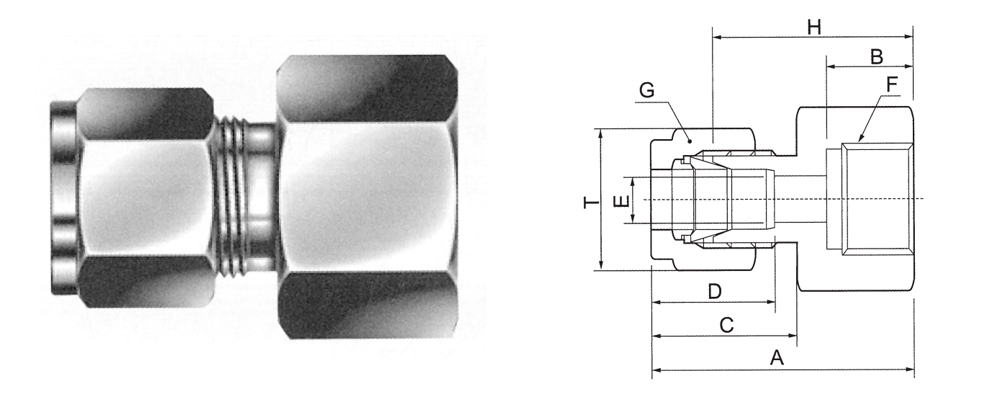

(METRIC) Connects metric tube to ISO parallel thread (gauge)

CATALOG NUMBER

T TUBE O.D.

R(PF)
FEMALE
PIPE SIZE

A

B

D

E

F

G

H

FCG-3-2G

3

1/8

34

14

13.5

2.4

19

12

27

FCG-6-2G

6

1/4

36.2

14

15.8

4.8

19

14

28.4

FCG-6-3G

6

3/8

38

15

15.8

4.8

22

14

30.2

FCG-6-4G

6

1/2

40.9

19

15.8

4.8

27

14

33.1

FCG-8-2G

8

1/4

38.7

14

16.7

5.5

19

16

31

FCG-8-3G

8

3/8

38.7

15

16.7

6.4

22

16

31

FCG-8-4G

8

1/2

43.5

20

16.7

6.4

27

16

35.8

FCG-10-2G

10

1/4

39.4

14

19.6

5.5

19

19

31.8

FCG-10-3G

10

3/8

39.4

15

19.6

6.5

22

19

31.8

FCG-10-4G

10

1/2

44.2

19

19.6

7

27

19

36.6

FCG-12-2G

12

1/4

42.6

14

23.8

5.5

22

22

31.8

FCG-12-3G

12

3/8

42.6

15

23.8

6.5

22

22

31.8

FCG-12-4G

12

1/2

48.9

19

23.8

7

27

22

38.1

FCG-20-4G

20

1/2

54.7

19

25.5

7

30

32

44.2

FCG-22-4G

20

1/2

54.7

19

25.5

7

30

32

44.2


(FRACTIONAL) Connects metric tube to ISO parallel thread (gauge)

FCG-02-1G

1/4

1/8

31.7

10

15.8

4.8

14

14

23.9

FCG-02-2G

1/4

1/4

36.2

14

15.8

4.8

19

14

28.4

FCG-02-3G

1/4

3/8

38

15

15.8

4.8

22

14

30.2

FCG-02-4G

1/4

1/2

40.9

19

15.8

4.8

27

14

33.1

FCG-03-2G

3/8

1/4

39.4

14

19.6

5.5

19

17

31.8

FCG-03-3G

3/8

3/8

44.2

15

19.6

6.5

22

17

36.6

FCG-03-4G

3/8

1/2

44.2

19

19.6

7

27

17

36.6

FCG-04-2G

1/2

1/4

42

14

23.4

5.5

22

22

31.8

FCG-04-3G

1/2

3/8

42

15

23.4

6.5

24

22

31.8

FCG-04-4G

1/2

1/2

48.3

19

23.4

7

27

22

38.1


(FRACTIONAL) Connects metric tube to ISO parallel thread (gauge)

FC-3-M14*1.5

3

M14x1.5

34

15

13.5

2.4

19

12

27

FC-6-M14*1.5

6

M14x1.5

38

15

15.8

4.8

19

14

30.2

FC-8-M14*1.5

8

M14x1.5

37.8

15

16.7

5.5

19

16

31

FC-10-M14*1.5

10

M14x1.5

39.4

15

19.6

5.5

19

19

31.8

FC-12-M14*1.5

12

M14x1.5

42.6

15

23.8

5.5

22

22

31.8

FC-6-M16*1.5

6

M16x1.5

38

16

15.8

6.5

22

14

30.2

FC-8-M16*1.5

8

M16x1.5

38.7

16

16.7

6.4

22

16

31

FC-10-M16*1.5

10

M16x1.5

39.4

16

19.6

6.4

22

19

31.8

FC-12-M16*1.5

12

M16x1.5

42.6

16

23.8

6.5

22

22

31.8

FC-8-M18*1.5

8

M18x1.5

41.3

16

16.7

6.4

24

16

33.6

FC-12-M18*1.5

12

M18x1.5

44.4

16

23.8

7

24

22

33.6

FC-6-M20*1.5

6

M20x1.5

40.3

16

15.8

4.8

27

14

32.5

FC-8-M20*1.5

8

M20x1.5

41.2

16

16.7

6.4

27

16

33.5

FC-10-M20*1.5

10

M20x1.5

42.1

16

19.6

7

27

19

34.5

FC-12-M20*1.5

12

M20x1.5

45.3

16

23.8

7

27

22

34.5
