316L Stainless Steel Compression fitting type PIPE pipe butt welding elbow

Home / Products / Stainless Steel Tube Fittings / Tube To Weld End / 316L Stainless Steel Compression fitting type PIPE pipe butt welding elbow

316L Stainless Steel Compression fitting type PIPE pipe butt welding elbow

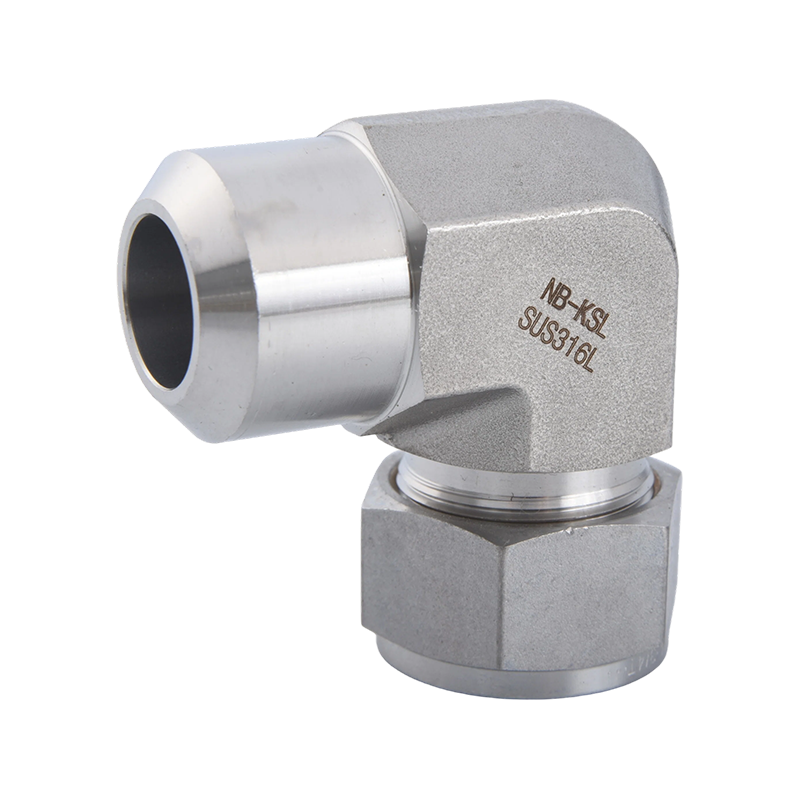

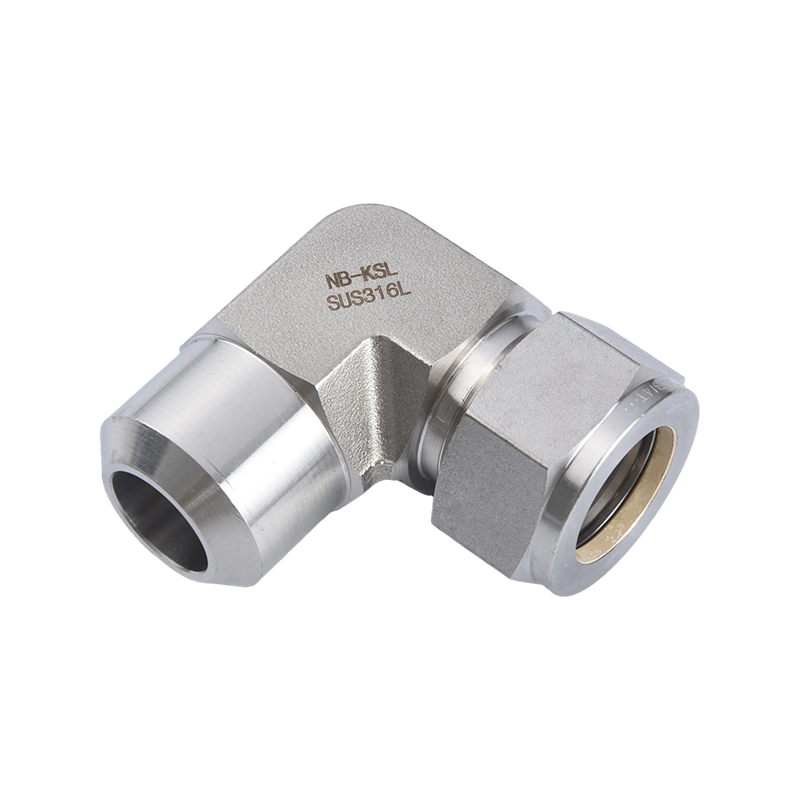

This product is a high-performance connector designed specifically for demanding fluid transport systems. This elbow is a pipe fitting used to change the flow direction of a pipeline, with angles of 45 degrees or 90 degrees, and a 180-degree return elbow is also available. Its structural features significantly distinguish it from ordinary elbows: the pipe butt end is designed for full-penetration butt welding to the main pipeline. Its ends undergo precision beveling to ensure weld penetration and weld quality; the compression connection end is designed for quick, weld-free connections. This end has a specific tapered sealing surface or ferrule structure internally, which, in conjunction with a nut and compression components (such as ferrules, O-rings, or metal pressure rings), deforms the sealing element through the axial compressive force generated by tightening the nut.

  • Description
  • Contact Us

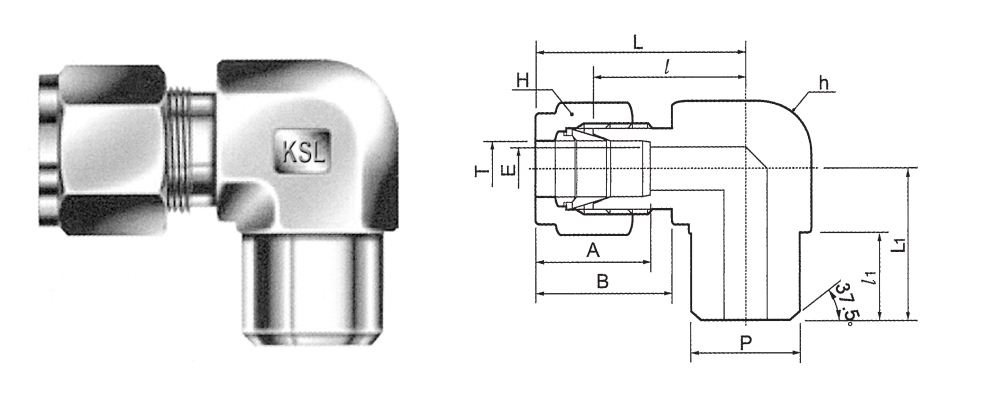

TUBE SOCKET WELD ELBOW

Connects fractional tube to pipe

T TUBE O.D.

MALE PIPE SIZI P

CATALOG NUMBER

A

B

E

h

H

/

/1

L

L1

1/8

10.29

EBW-01-1P

14

16.5

2.4

12.7

12

18.6

10

26.1

19.1

1/4

10.29

EBW-02-1P

15.8

17.8

4.8

15

14

19.6

10

27.1

21.1

1/4

13.72

EBW-02-2P

15.8

17.8

4.8

15

14

23.2

14.2

30.7

23.2

3/8

13.72

EBW-03-2P

19.6

19.6

7.1

15

17

21.3

14.2

27.8

24

1/2

21.34

EBW-044P

23.4

22.2

10.4

23

22

26.5

17

36.5

31

3/4

26.67

EBW-06-6P

24.4

22.4

15.7

28

30

29.7

19

40.1

38.8


Connects fractional tube to pipe

T TUBE O.D.

MALE PIPE SIZI P

CATALOG NUMBER

A

B

  E

h

H

/

L

L1

10.29

EBW-8-1P

16.7

18.7

6.4

15

16

21.3

10

28

21.1

13.72

EBW-8-2P

16.7

18.7

6.4

15

16

21.3

14.2

28

24

17.15

EBW-8-3P

16.7

18.7

6.4

17.5

16

23.1

14.2

29.8

26

21.34

EBW-8-4P

16.7

18.7

6.4

23

16

25.5

17

32.2

31

10

13.72

EBW-10-2P

19.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

10

17.15

EBW-10-3P

16.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

12

13.72

EBW-12-2P

23.8

22.8

9.5

23

22

26.5

14.2

37

28.2

12

17.15

EBW-12-3P

23.8

22.8

9.5

23

22

26.5

14.2

37.3

28.2

12

21.34

EBW-12-4P

23.8

22.8

9.5

23

22

26.5

17

37.3

31

14

21.34

EBW-14-4P

24.8

22.8

11.1

23

27

26.5

17

37.3

31

16

21.34

EBW-16-4P

24.4

22.4

12.7

23

27

26.5

17

36.9

31

16

26.67

EBW-16-6P

24.4

22.4

12.7

28

27

29.7

19

40.1

38.8

20

21.34

EBW-20-4P

25.5

23.5

15.8

28

32

32

17

42.5

38.5

20

26.67

EBW-20-6P

25.5

23.5

15.8

28

32

32

19

42.5

38.5

25

26.67

EBW-25-6P

31.7

27

21.8

35

38

36.8

19

50.5

41.7
