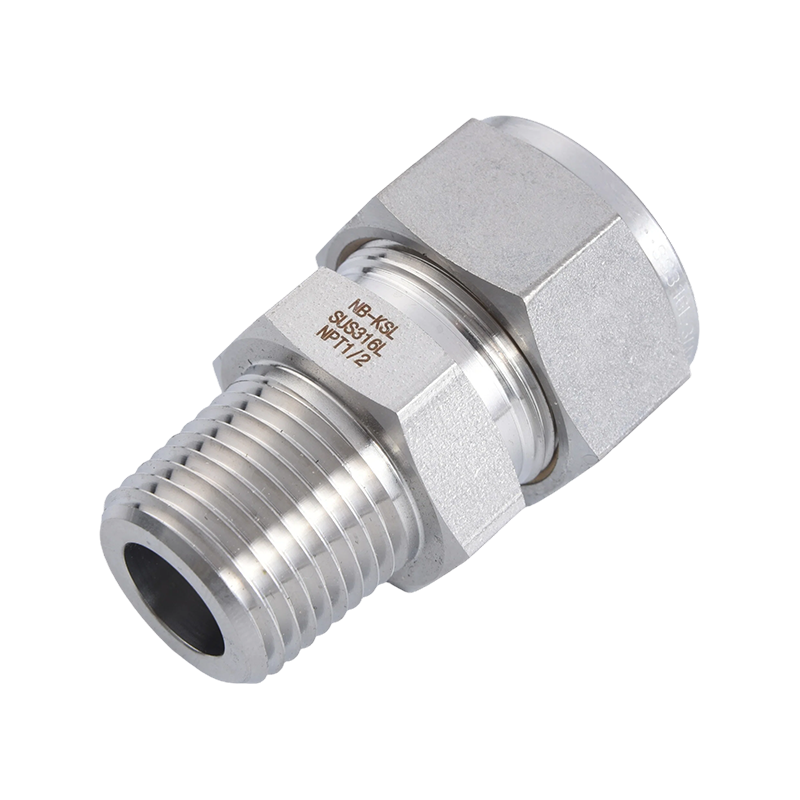

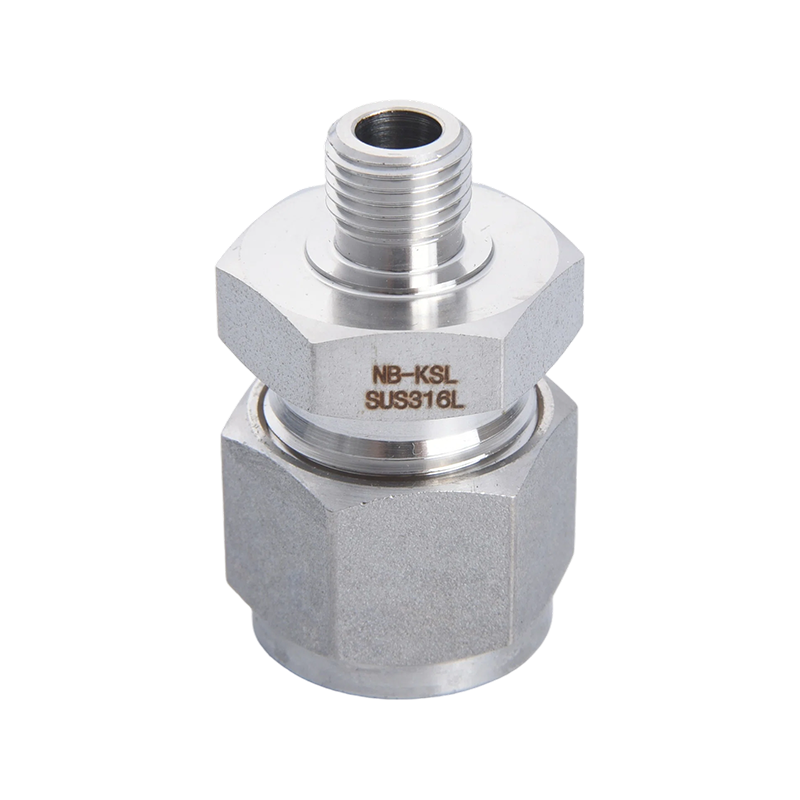

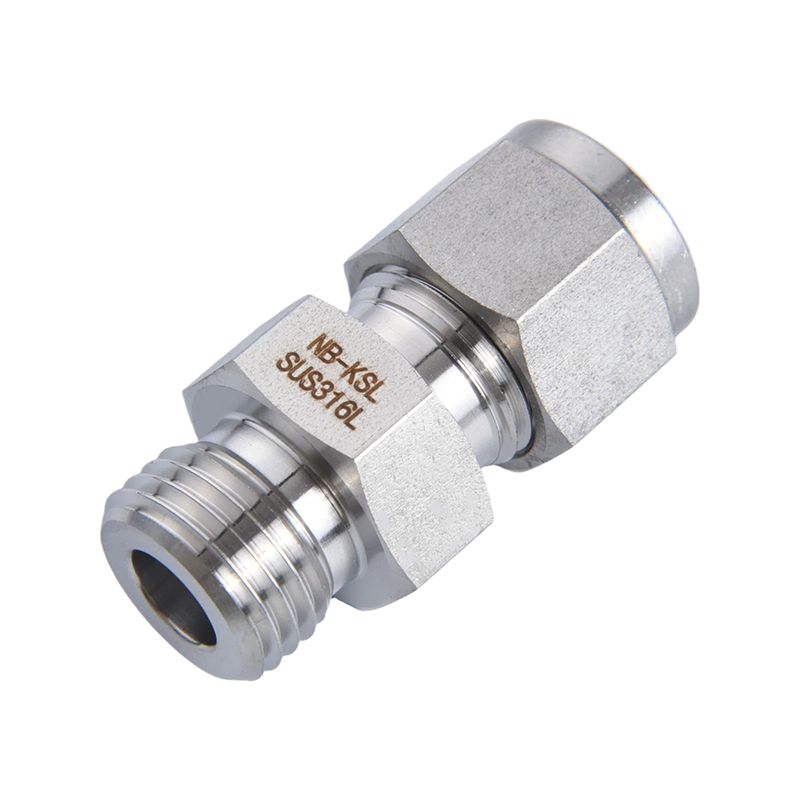

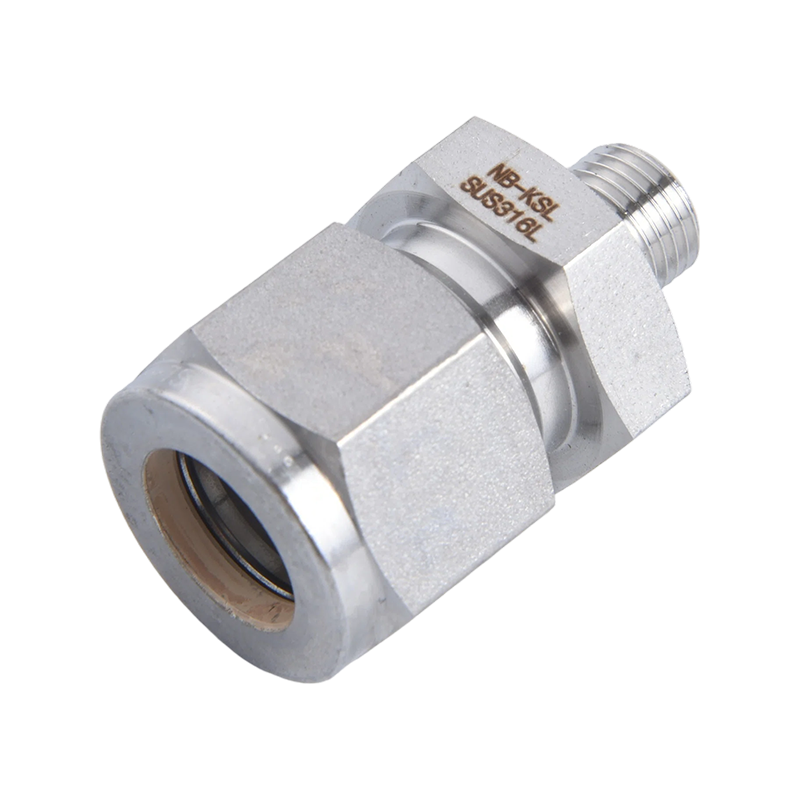

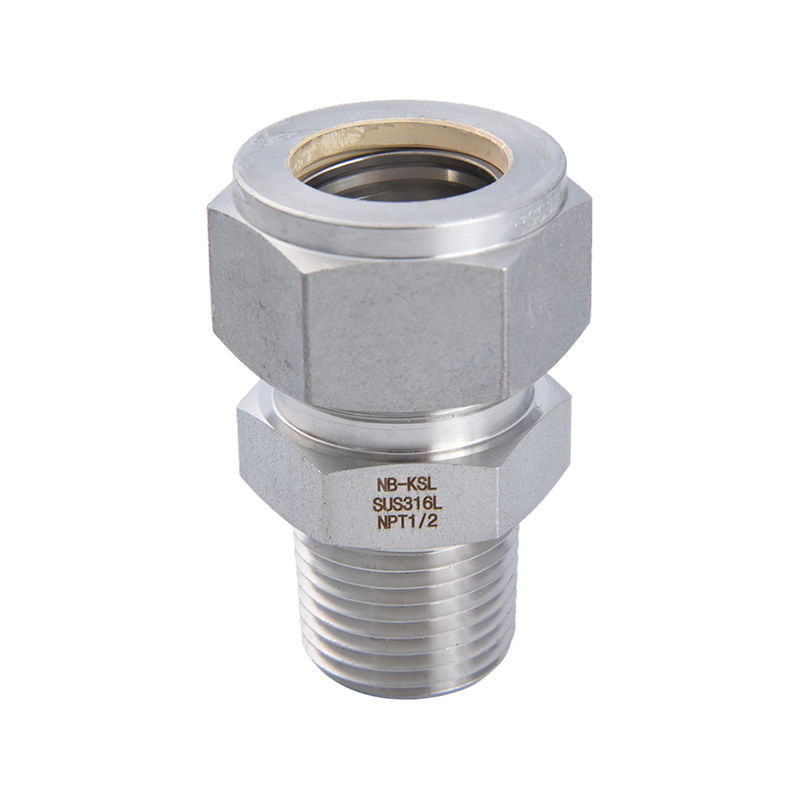

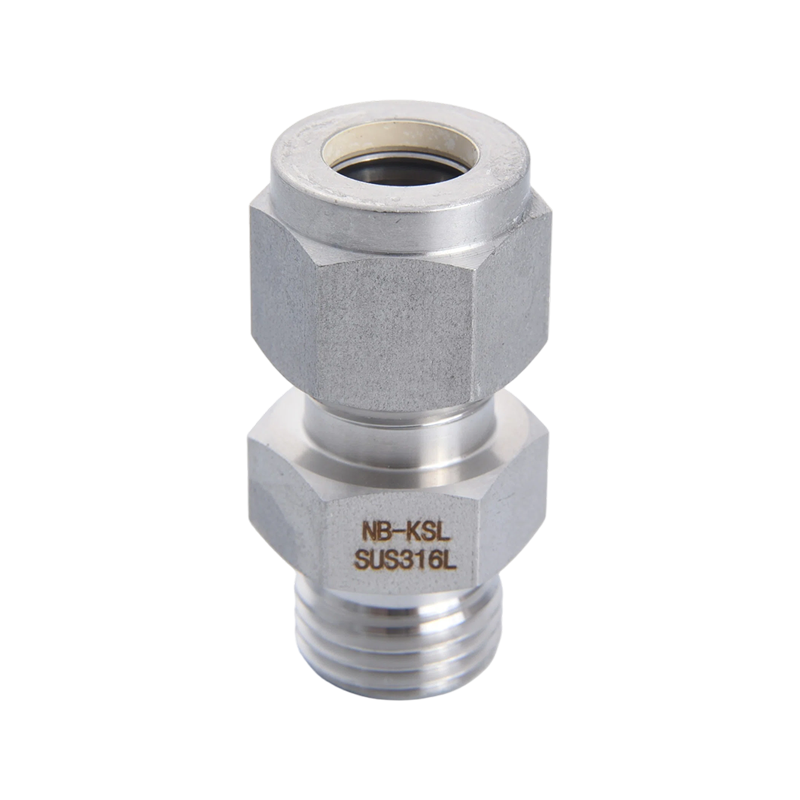

316L Stainless Steel Compression fitting external thread connector

Home / Products / Stainless Steel Tube Fittings / Tube To Male Pipe / 316L Stainless Steel Compression fitting external thread connector

316L Stainless Steel Compression fitting external thread connector

At every entry and exit point of a fluid system, the reliability of the connection determines the safety of the entire production line. Our 316L Stainless Steel Male Connector is specifically engineered to bridge the gap between instrumentation tubing and equipment such as valves, pumps, pressure vessels, or distribution manifolds.

Why Is This Connector the Engineer’s Top Choice?

Extreme Corrosion Resistance for Harsh Conditions:
Crafted from premium 316L low-carbon stainless steel, this connector offers exceptional resistance to pitting and performs robustly against acidic media and salt spray. Compared to standard materials, its service life is extended by over 30%, significantly reducing downtime and maintenance costs.

Gas-Tight High-Pressure Sealing:
Utilizing advanced double-ferrule swaging technology paired with precision-machined external threads (NPT/ISO/BSP), it creates a dual-layer defense. Whether facing high-pressure surges up to 6000 psi or the challenges of light gas permeation, it maintains a rock-solid seal.

Precision Threads for Seamless Installation:
Every external thread undergoes specialized grinding and hardening processes to effectively eliminate thread galling. Even in confined spaces, installation is fast and smooth, drastically improving on-site assembly efficiency.

Full-Flow Design for Maximum Efficiency:
The optimized internal bore ensures minimal flow resistance. This enhances the overall energy efficiency of your system and provides superior flow stability for sensitive applications.

Contact Us Contact Us
PREV：No previous product NEXT：316L Stainless Steel Compression fitting external thread through plate connector
  • Description
  • Contact Us

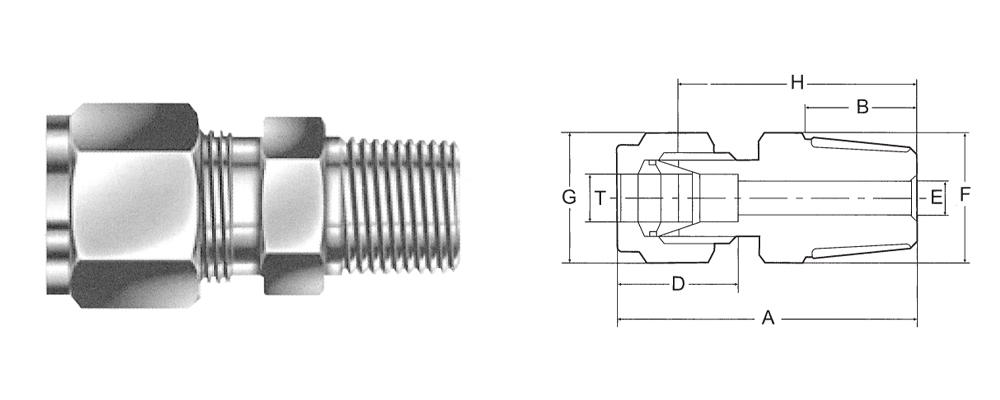

CATALOG NUMBER

T TUBE O.D.

PT-NPT MALE PIPE SIZE

A

B

D

E

F

G

H

MC-3-1

3

1/8

32

10

13.5

2.4

12

12

25

MC-3-2

3

1/4

37

14

13.5

2.4

14

12

30

MC-4-1

4

1/8

32.2

10

13.7

3

12

12

25.5

MC-4-2

4

1/4

36.7

14

13.7

3

14

12

30

MC-6-1

6

1/8

33.8

10

15.8

4.8

14

14

26

MC-6-2

6

1/4

38.8

14

15.8

4.8

14

14

31

MC-6-3

6

3/8

38.8

14

15.8

4.8

17

14

31

MC-6-4

6

1/2

45.1

19

15.8

4.8

22

14

37.3

MC-8-1

8

1/8

34.7

10

16.7

4.8

14

16

27

MC-8-2

8

1/4

39.7

14

16.7

6

14

16

32

MC-8-3

8

3/8

39.7

14

16.7

6.4

17

16

32

MC-8-4

8

1/2

45.8

19

16.7

6.4

22

16

38.1

MC-10-1

10

1/8

36.6

10

19.6

4.8

17

19

29

MC-10-2

10

1/4

40.6

14

19.6

7.1

17

19

33

MC-10-3

10

3/8

40.6

14

19.6

9.5

17

19

33

MC-10-4

10

1/2

46.5

19

19.6

7.9

22

19

38.9

MC-10-6

10

3/4

48

19

19.6

7.9

27

19

40.4

MC-12-1

12

1/8

39.8

10

23.8

4.8

19

22

29

MC-12-2

12

1/4

44.1

14

23.8

7.1

19

22

33.3

MC-12-3

12

3/8

44.1

14

23.8

9.5

19

22

33.3

MC-12-4

12

1/2

49.7

19

23.8

9.5

22

22

38.9

MC-12-6

12

3/4

51.2

19

23.8

9.5

27

22

40.4

MC-12-8

12

1"

57.8

22

23.8

9.5

35

22

47

MC-14-3

14

3/8

44.8

14

24.8

9.5

24

27

34

MC-14-4

14

1/2

49.7

19

24.8

11.1

24

27

38.9

MC-14-6

14

3/4

51.2

19

24.8

11.1

27

27

40.4

MC-16-3

16

3/8

44.4

14

24.4

9.5

24

27

34

MC-16-4

16

1/2

49.3

19

24.4

11.9

24

27

38.9

MC-16-6

16

3/4

50.8

19

24.4

12.7

27

27

40.4

MC-18-3

18

3/8

46.2

14

24.8

9.5

27

30

35.4

MC-18-4

18

1/2

51.2

19

24.8

11.9

27

30

40.4

MC-18-6

18

3/4

51.2

19

24.8

15.1

27

30

40.4

MC-18-8

18

1"

57.8

22

24.8

15.1

35

30

47

MC-20-4

20

1/2

52.7

19

25.5

11.9

30

32

42.2

MC-20-6

20

3/4

52.7

19

25.5

15.9

30

32

42.2

MC-22-4

22

1/2

52.7

19

25.5

11.9

30

32

42.2

MC-22-6

22

3/4

52.7

19

25.5

15.9

30

32

42.2

MC-22-8

22

1"

57.5

22

25.5

18.3

35

32

47

MC-25-4

25

1/2

57.9

19

31.7

11.9

35

38

45.2

MC-25-6

25

3/4

57.9

19

31.7

15.9

35

38

45.2

MC-25-8

25

1"

62.7

22

31.7

21.8

35

38

50

(METRIC)

CATALOG NUMBER

T TUBE O.D.

PT-NPT MALE PIPE SIZE

A

B

D

E

F

G

H

MC-01-1

1/8

1/8

32.5

10

14

2.4

12

12

25

MC-01-2

1/8

1/4

37.5

14

14

2.4

14

12

30

MC-01-3

1/8

3/8

37.5

14

14

2.4

14

12

30

MC-01-4

1/8

1/2

43.8

19

14

2.4

22

12

36.3

MC-02-1

1/4

1/8

33.8

10

15.8

4.8

14

14

26

MC-02-2

1/4

1/4

38.8

14

15.8

4.8

14

14

31

MC-02-3

1/4

3/8

38.8

14

15.8

4.8

17

14

31

MC-02-4

1/4

1/2

45.1

19

15.8

4.8

22

14

37.3

MC-02-6

1/4

3/4

46.1

19

15.8

4.8

27

14

38.3

MC-03-1

3/8

1/8

36.6

10

19.6

4.8

17

17

29

MC-03-2

3/8

1/4

40.1

14

19.6

7.1

17

17

32.5

MC-03-3

3/8

3/8

40.1

14

19.6

7.1

17

17

32.5

MC-03-4

3/8

1/2

46.5

19

19.6

7.1

22

17

38.9

MC-03-6

3/8

3/4

47.9

19

19.6

7.1

27

17

40.3

MC-04-1

1/2

1/8

39.2

10

23.4

4.8

19

22

29

MC-04-2

1/2

1/4

43.2

14

23.4

7.1

19

22

33

MC-04-3

1/2

3/8

43.5

14

23.4

9.5

19

22

33.3

MC-04-4

1/2

1/2

49.1

19

23.4

10.4

22

22

38.9

MC-04-6

1/2

3/4

50.5

19

23.4

10.4

27

22

40.3

MC-04-8

1/2

1"

57.2

22

23.4

10.4

35

22

47

MC-05-3

5/8

3/8

44.4

14

24.4

9.5

24

27

34

MC-05-4

5/8

1/2

49.3

19

24.4

11.9

24

27

38.9

MC-05-6

5/8

3/4

50.7

19

24.4

12.7

27

27

40.3

MC-06-4

3/4

1/2

50.7

19

24.4

11.9

27

30

40.3

MC-06-6

3/4

3/4

50.7

19

24.4

15.7

27

30

40.3

MC-06-8

3/4

1"

57.4

22

24.4

15.7

35

30

47

MC-08-4

1"

1/2

57.9

19

31.7

11.9

35

38

45.2

MC-08-6

1"

3/4

57.9

19

31.7

15.9

35

38

45.2

MC-08-8

1"

1"

62.7

22

31.7

22.4

35

38

50

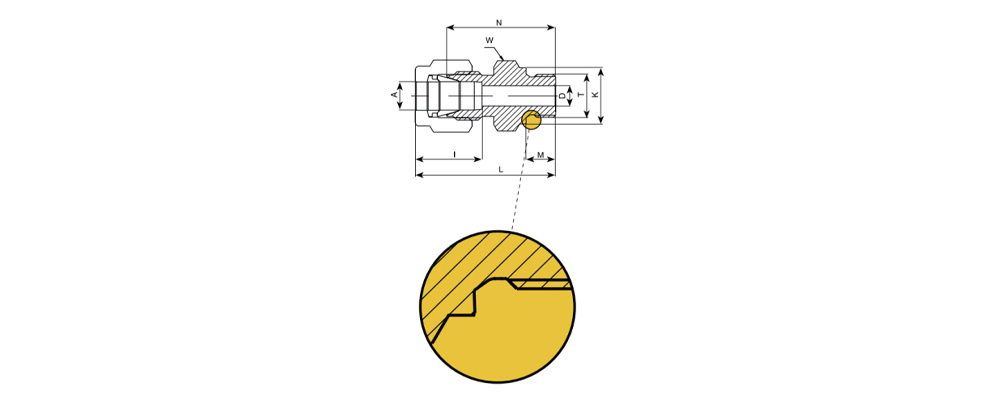

(FRACTIONAL)

CATALOG
NUMBER

A

T

L

M

I

D

W

K

N

MC-01-01

1/8

G1/8

30.9

7.1

14

2.4

14

13.8

23.4

MC-01-02

1/8

G1/4

36.7

11.2

14

2.4

19

18

29.2

MC-02-01

1/4

G1/8

32.8

7.1

17.8

4.8

14

13.8

25

MC-02-02

1/4

G1/4

38

11.2

17.8

4.8

19

18

30.2

MC-02-03

1/4

G3/8

39.3

11.2

17.8

4.8

22

21.8

31.5

MC-02-04

1/4

G1/2

45.1

14.2

17.8

4.8

27

26

37.3

MC-03-01

3/8

G1/8

35.7

7.1

19.6

4.8

17

13.8

28.1

MC-03-02

3/8

G1/4

39.4

11.2

19.6

6.4

19

18

31.8

MC-03-03

3/8

G3/8

40.3

11.2

19.6

7.1

22

21.8

33

MC-03-04

3/8

G1/2

46.5

14.2

19.6

7.1

27

26

38.9

MC-03-06

3/8

G3/4

50.3

15.7

19.6

7.1

35

32

42.7

MC-04-01

1/2

G1/8

38.6

7.1

23.4

4.8

19

13.8

28.4

MC-04-02

1/2

G1/4

42.7

11.2

23.4

4.8

19

18

32.5

MC-04-03

1/2

G3/8

43.2

11.2

23.4

7.9

22

21.8

33

MC-04-04

1/2

G1/2

49.1

14.2

23.4

10.4

27

26

38.9

MC-04-06

1/2

G3/4

52.9

15.7

23.4

10.4

35

32

42.7

MC-04-08

1/2

G1"

55.4

18.3

23.4

10.4

41

39

45.2

MC-06-04

3/4

G1/2

49.3

14.2

24.4

11.9

27

26

38.9

MC-06-06

3/4

G3/4

53.1

15.7

24.4

15.9

35

32

42.7

MC-06-08

3/4

G1"

55.6

18.3

24.4

15.9

41

39

45.2

MC-08-04

1"

G1/2

56.2

14.2

31.7

11.9

35

26

43.5

MC-08-06

1"

G3/4

57

15.7

31.7

15.9

35

32

44.3

MC-08-08

1"

G1"

60.5

18.3

31.7

19.8

41

39

47.8

All Dimensions Are in Millimeters. Unless Otherwise Specified. Only for Reference Subject to Change.

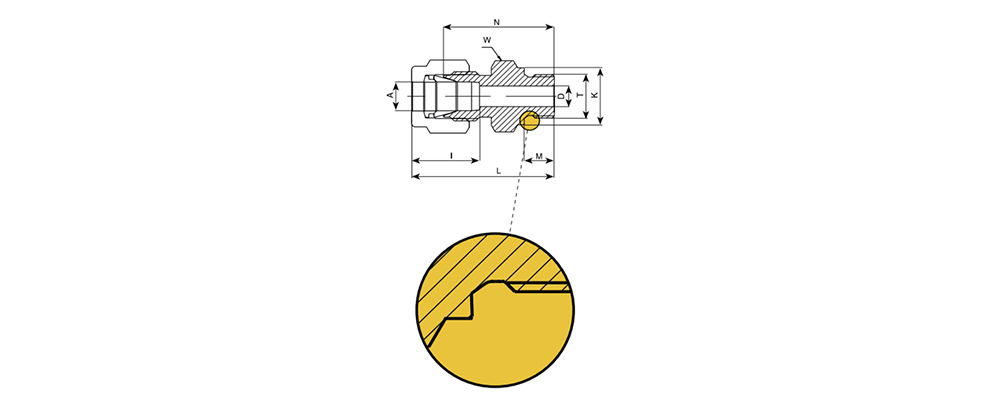

(FRACTIONAL)

CATALOG NUMBER

A

T

M

l

D

W

K

N

MC-3-01

3

1/8

30.9

7.1

14

2.4

14

13.8

23.4

MC-3-02

3

1/4

36.7

11.2

14

2.4

19

18

29.2

MC-6-01

6

1/8

32.8

7.1

15.8

4.8

14

13.8

25

MC-6-02

6

1/4

38

11.2

15.8

4.8

19

18

30.2

MC-6-03

6

3/8

39.3

11.2

15.8

4.8

22

21.80

31.5

MC-6-04

6

1/2

45.1

14.2

15.8

4.8

27

26

37.3

MC-8-01

8

1/8

33.7

7.1

16.7

4.8

14

13.8

26

MC-8-02

8

1/4

38.9

11.2

16.7

6.4

19

18.00

31.2

MC-8-03

8

3/8

40

11.2

16.7

6.4

22

21.8

32.3

MC-8-04

8

1/2

45.8

14.2

16.7

6.4

27

26.00

38.1

MC-10-01

10

1/8

35.7

7.1

19.6

4.8

17

13.8

28.1

MC-10-02

10

1/4

39.4

11.2

19.6

6.4

19

18

31.8

MC-10-03

10

3/8

40.6

11.2

19.6

7.9

22

21.80

33

MC-10-04

10

1/2

46.5

14.2

19.6

7.9

27

26

38.9

MC-12-01

12

1/8

39.2

7.1

23.8

4.8

19

13.80

28.4

MC-12-02

12

1/4

43.3

11.2

23.8

6.4

19

18

32.5

MC-12-03

12

3/8

43.8

11.2

23.8

7.9

22

21.80

33

MC-12-04

12

1/2

49.7

14.2

23.8

9.5

27

26

38.9

MC-12-06

12

3/4

53.5

15.7

23.8

9.5

35

32.00

42.7

MC-14-03

14

3/8

44.6

11.2

24.8

7.9

22

21.8

33.8

MC-14-04

14

1/2

49.7

14.2

24.8

11.1

27

26.00

38.9

MC-15-04

15

1/2

49.7

14.2

24.4

11.9

27

26

38.9

MC-16-03

16

3/8

44.2

11.2

24.4

7.9

22

21.80

33.8

MC-16-04

16

1/2

49.3

14.2

24.4

11.9

27

26

38.9

MC-18-04

18

1/2

49.7

14.2

24.8

11.9

27

26.00

38.9

MC-22-06

22

3/4

53.2

15.7

25.5

15.9

35

32

42.7

MC-25-06

25

3/4

57

15.7

31.7

15.9

35

32.00

44.3

All Dimensions Are in Millimeters. Unless Otherwise Specified. Only for Reference Subject to Change.

Recommended Products

About Us
Ningbo Keshengli Stainless Steel Valve Co., Ltd.
Ningbo Keshengli Stainless Steel Valve Co., Ltd.

Our company specializes in the manufacturing and sales of stainless steel pipe fittings and valves in national (GB), American (ANSI/ASME), and British (BS) standards. We are equipped with advanced CNC machining centers, material testing and heat treatment facilities, a skilled technical team, and a robust production workforce. With a sound quality management system and excellent after-sales service, we sincerely serve customers worldwide.

Our main products include: ferrule-type fittings, threaded fittings, instrument fittings, instrument needle valves, instrument ball valves, ferrule needle valves, ferrule ball valves, compact high-pressure instrument needle valves, compact high-pressure instrument ball valves, and high-pressure check valves. The primary material is SS316 stainless steel. These products are widely used in petrochemical, petroleum, electric power, pharmaceutical, food, papermaking, marine, and general machinery industries.

We strictly control product quality at every stage and are committed to delivering superior quality through advanced technology and professional management. Adhering to the business philosophy of "Quality First, Customer Supreme, Integrity Foremost," we strive to build the "NB-KSL" brand image, better serve our customers, and work together with you to create a prosperous future.

Certificate Of Honor
News
  • NB-KSL® INSTALLATION INSTRUCTIONS

    NB-KSL® fittings are supplied assembled and finger tight. Disassembly before use can allow the entry of dirt or other particles.

    READ MORE
  • NB-KSL® HOW DOES IT WORK?

    The NB-KSL® tube fitting is a mechanism used both to seal and to grip tubing. The mechanical advantage and geometry of this type of fitting produce a leak-tight assembly. To assemble, simply insert th...

    READ MORE
  • NB-KSL® TUBE FITTINGS DESCRIPTION

    NB-KSL® has produced high quality tube and pipe fittings in various materials for high-pressure applications since its establishment in 2007. As a result of tremendous efforts in research and developm...

    READ MORE
