316L Stainless Steel BV right-angle valves

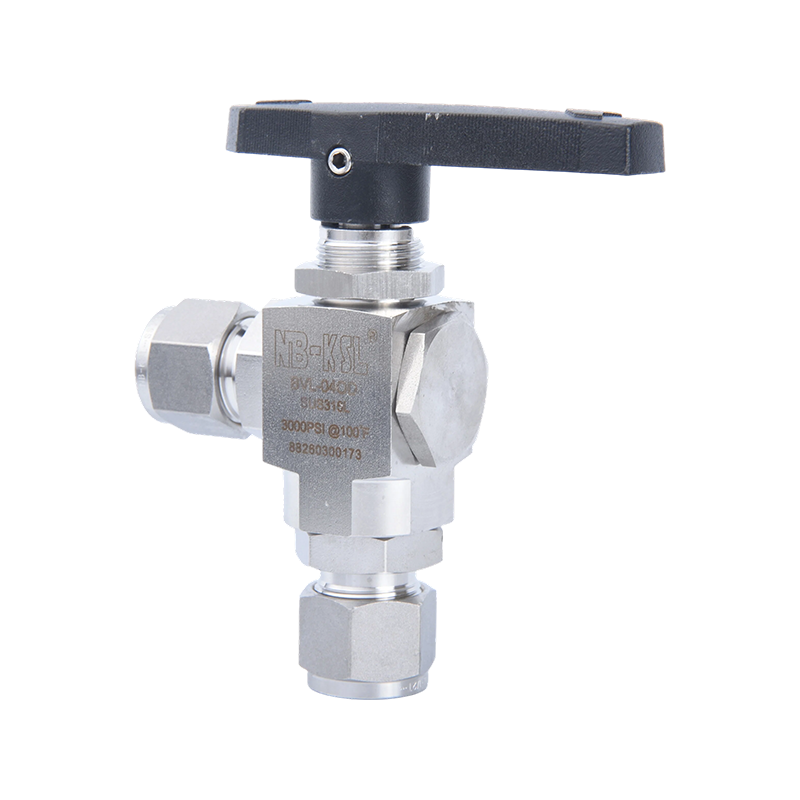

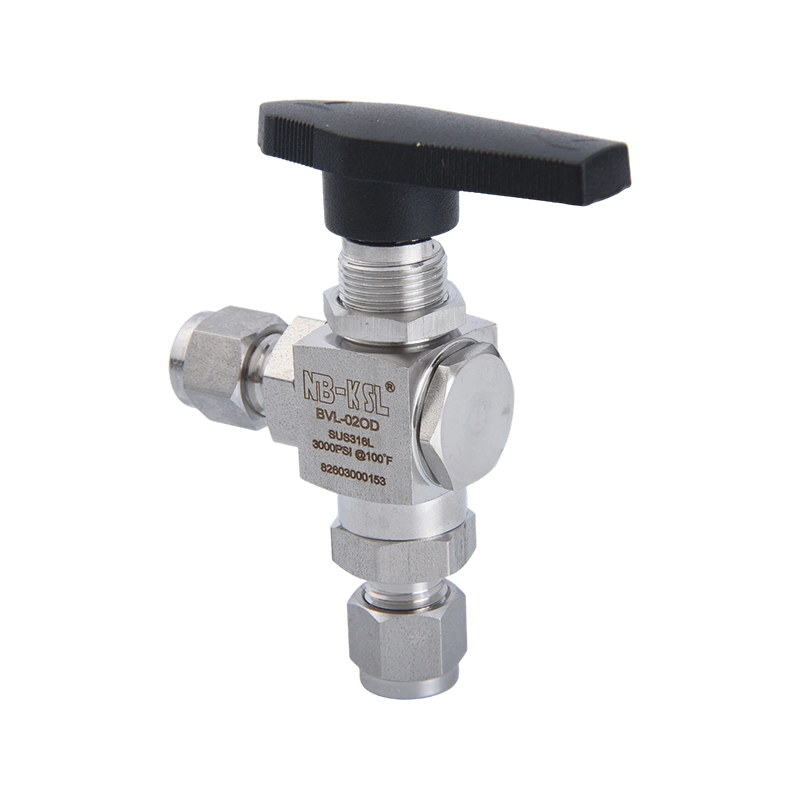

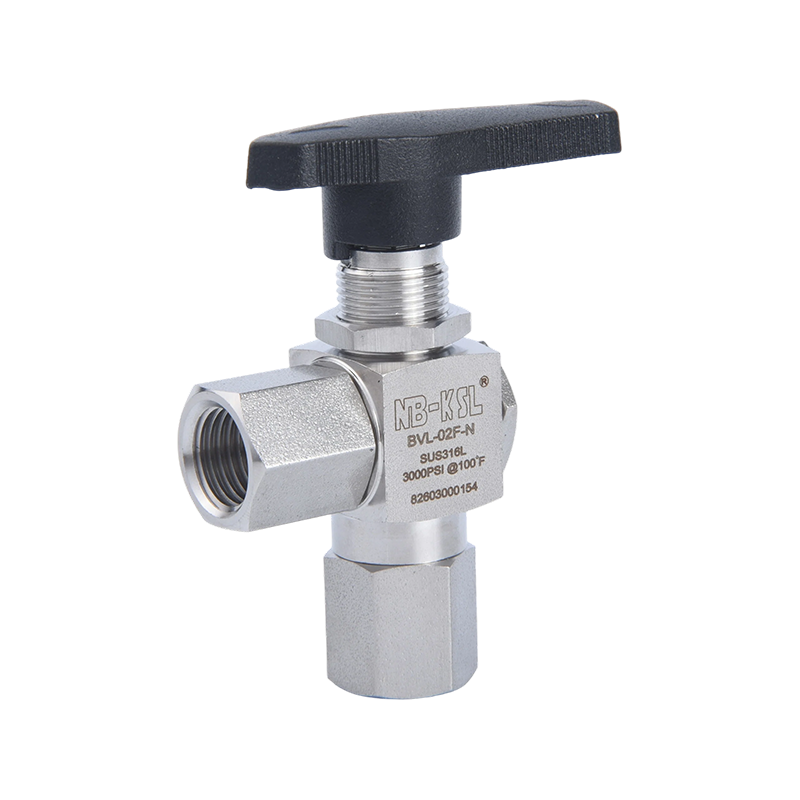

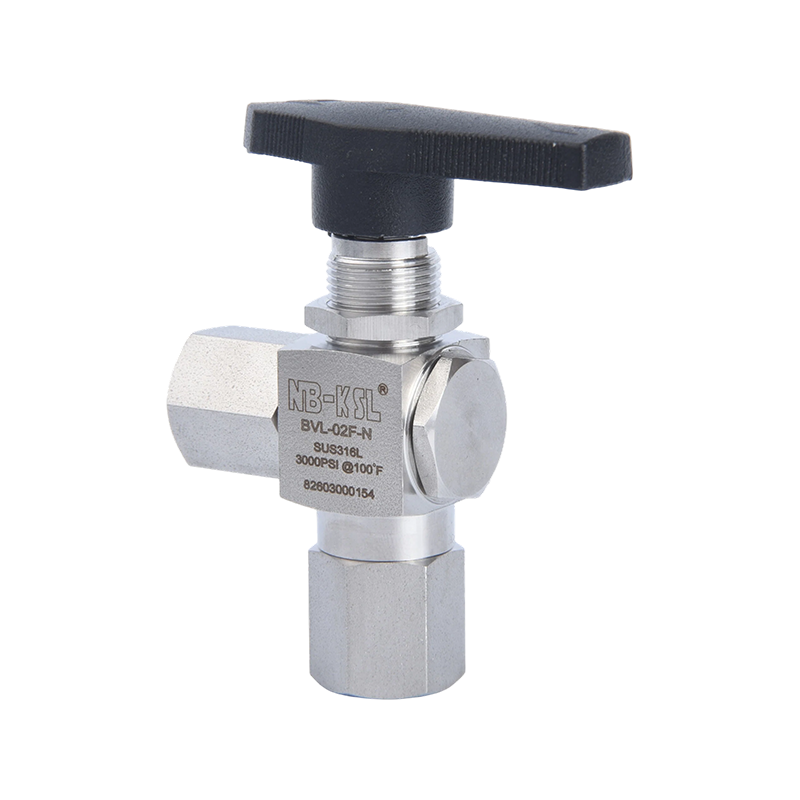

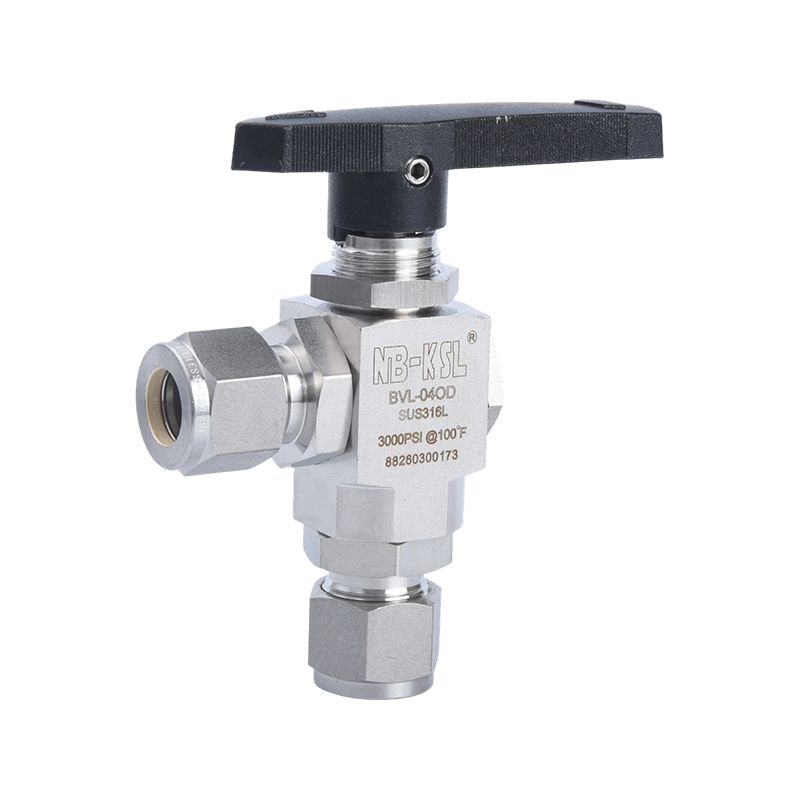

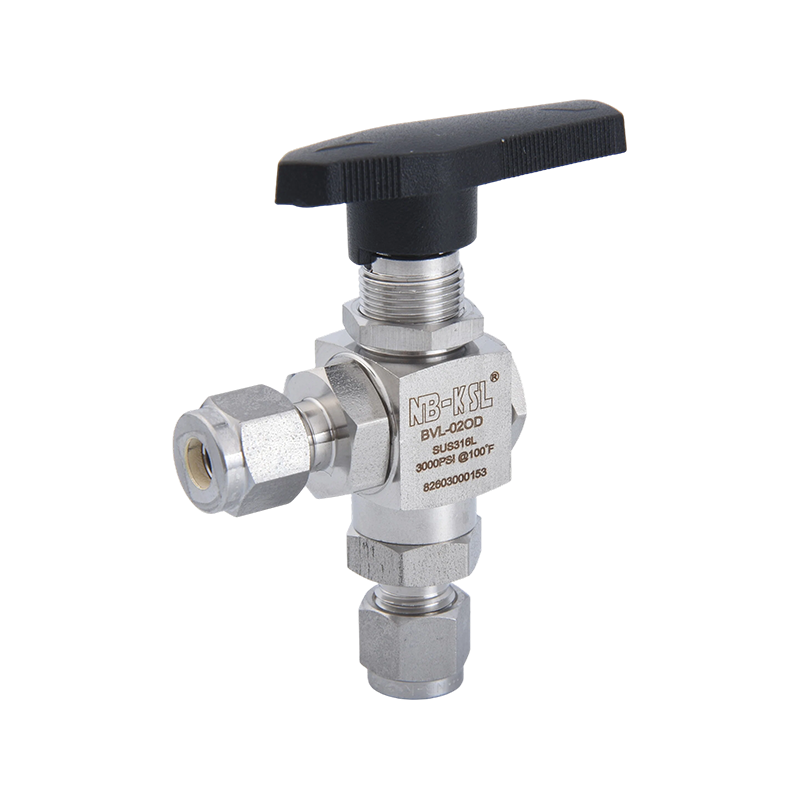

These valves are primarily used to regulate, distribute, or cut off the flow of liquid and gaseous media. BV-type right-angle valves and three-way valves, with their unique fluid path design, allow for more flexible pipeline system layouts, more compact installation spaces, and simple and convenient operation. The valve body is precision-machined internally to ensure minimal pressure loss during fluid flow. The BV-type right-angle valve features a 90° bend in its fluid passage. This compact design offers exceptional installation flexibility in environments with limited space or complex pipeline layouts, effectively saving installation space and reducing pipeline stress. Both types of valves employ a streamlined internal structure design, with a tight fit between the valve seat and valve core, minimizing pressure loss during fluid flow. This also optimizes hydrodynamic performance, reduces dead zones and liquid accumulation, and ensures efficient and stable flow control.

  • Description
  • Contact Us

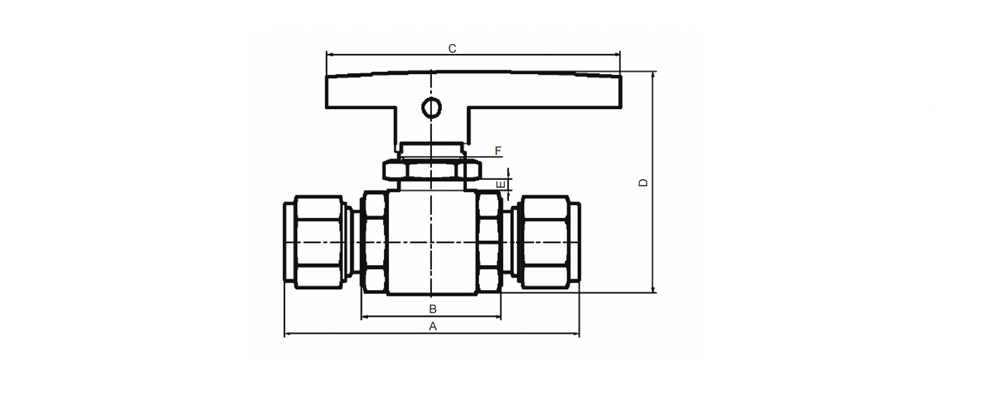

Direct ball valve

Specifications

A

B

D1 inner hole through-hole

C

D

E

F

BV-01OD

1/8LOK

63

31

2.4

50

47

14

BV-02OD

1/4LOK

66.4

31

50

47

14

BV-03OD

3/8LOK

70.5

31

50

47

14

BV-04OD

1/2LOK

86

40

10

84

62

19

BV-06OD Small body

3/4LOK

91

46.4

10

84

62

19

BV-08OD

1"LOK

115.5

61.5

14

81

81

27

BV-3OD

3mmLOK

63

31

2.4

50

47

14

BV-4OD

4mmLOK

63

31

50

47

14

BV-6OD

6mmLOK

66.4

31

50

47

14

BV-8OD

8mmLOK

68.4

31

50

47

14

BV-10OD

10mmLOK

70.5

31

50

47

14

BV-12OD

12mmLOK

86

40

10

84

62

19

BV-14OD

14mmLOK

85

40

10

84

62

19

BV-16OD

16mmLOK

85

40

10

84

62

19

BV-18OD

18mmLOK

91

46.4

10

84

62

19

BV-20OD

20mmLOK

106.8

61.5

14

81

81

27

BV-22OD

22mmLOK

106.8

61.5

14

81

81

27

BV-25OD

25mmLOK

115.5

61.5

14

81

81

27

Direct ball valve

NPT/PT

A

B

D1 inner hole through-hole

C

D

E

F

  BV-01F

1/8

46

/

50

47

14

  BV-02F

1/4

54

/

50

47

14

  BV-03F

3/8

64

10

84

62

19

  BV-04F

1/2

66

10

84

62

19

  BV-06F

3/4

87

14

81

81

27

  BV-08F

1"

109.5

14

81

81

27
