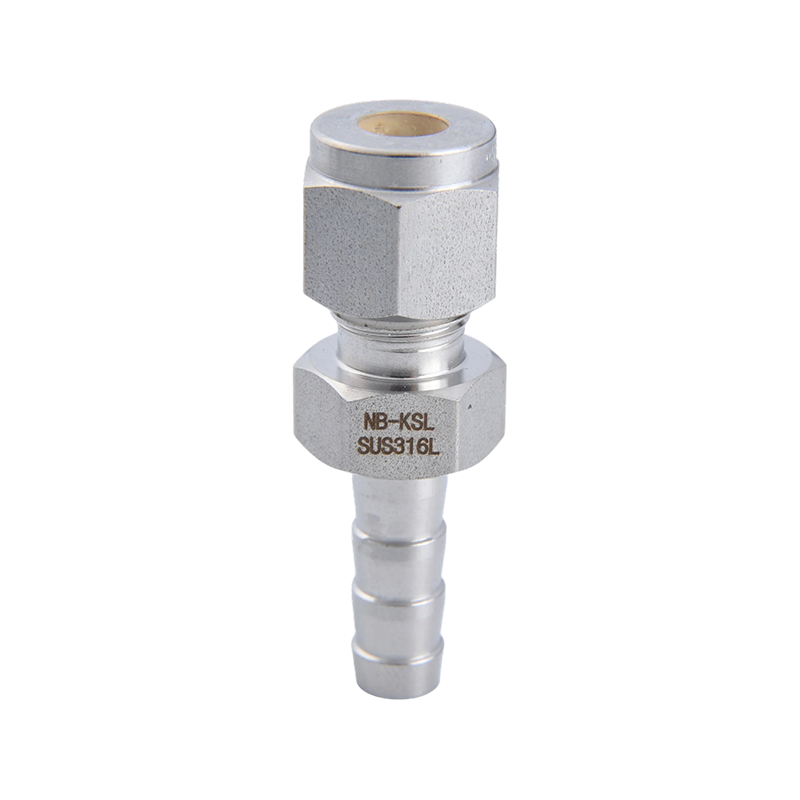

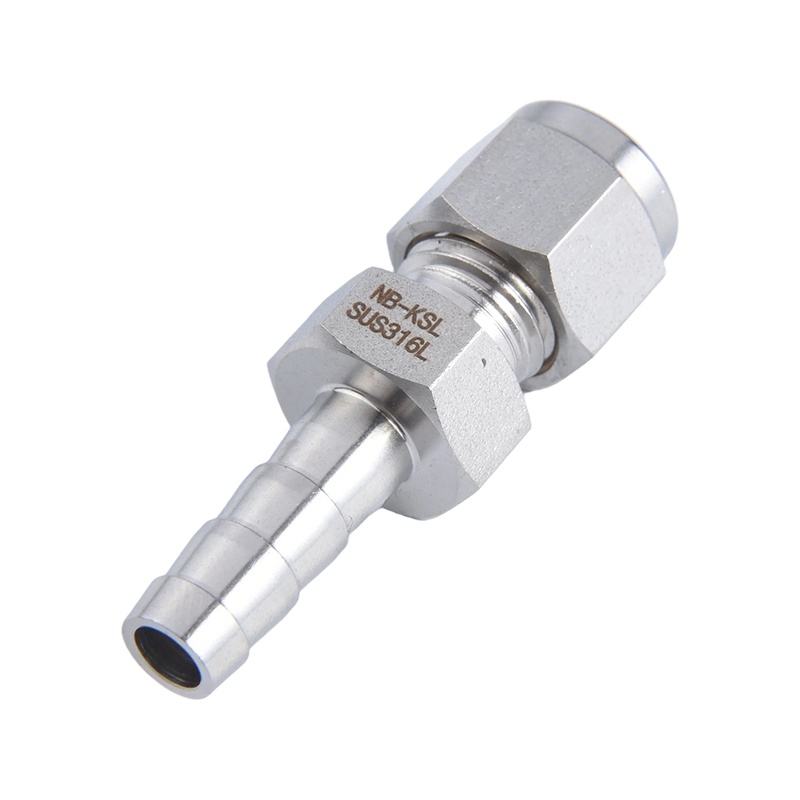

316L Stainless Steel Card sleeve pagoda connector

The 316L Stainless Steel Card sleeve pagoda connector is a specialized adapter for fluid piping systems. Its core function is to achieve an efficient and sealed connection between rigid pipes (such as metal pipes) and flexible pipes (such as rubber or plastic hoses). The product body is made of 316L austenitic stainless steel, combining compression fitting hard-seal technology with a pagoda-style mechanical clamping structure. It requires no welding or flaring; a permanent seal on the metal pipe is achieved simply by mechanical tightening. Simultaneously, the barb structure allows for quick assembly and disassembly of the flexible hose, making it a key component in high-precision, high-corrosion, and high-cleanliness piping systems. This end is designed to connect hoses of different materials, with a stepped, annular protrusion at the connector end, resembling a pagoda. These barbs are not simple rings but are designed with specific entry and exit angles. The barb tips are hardened or rely on the inherent hardness of 316L to slightly penetrate the inner surface of the flexible hose.

  • Description
  • Contact Us

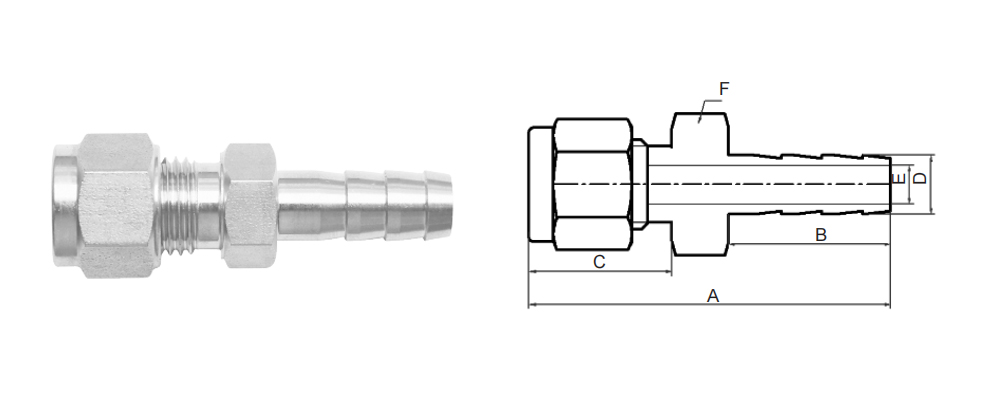

HOSE CONNECTOR

Connects metric tube to pipe

CATALOG
NUMBER

T

A

B

C

E

D

F

1/4-6mm

PJOD-02-6

1/4

44.9

20.1

17.8

4.8

7.27

12

1/4-8mm

PJOD-02-8

1/4

46.8

22.1

17.8

6

9

12

3/8-6mm

PJOD-03-6

3/8

46.2

20.1

19.6

4.8

7.27

16

3/8-8mm

PJOD-03-8

3/8

48.2

22.1

19.6

6

9

16

6mm-6mm

PJOD-6-6

6

44.9

20.1

17.8

4.8

7.27

12

8mm-8mm

PJOD-8-8

8

47.8

22.1

18.7

6

9

14

8mm-1/2

PJOD-8-04

8

49.5

23.8

18.7

6.4

15.12

17

12mm-1/2

PJOD-12-04

12

55.1

23.8

22.8

9.7

15.12

22
