316L Stainless Steel External thread pagoda connector

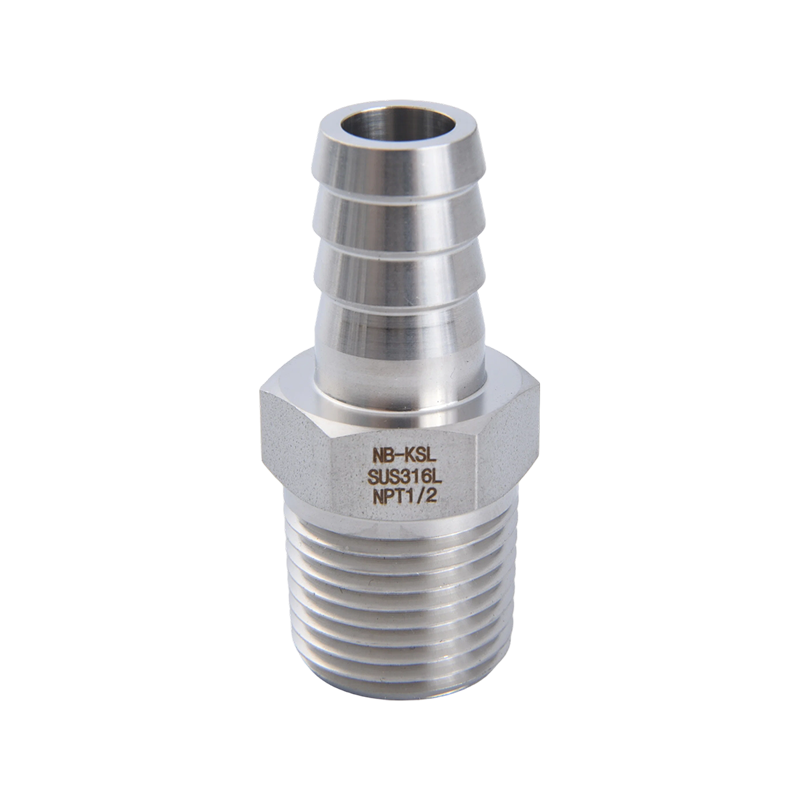

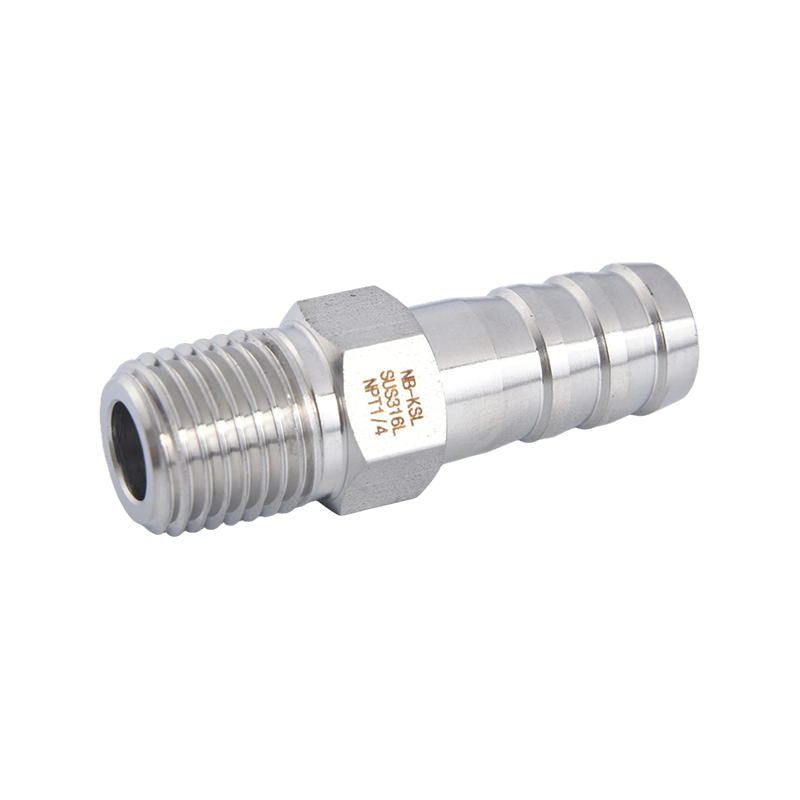

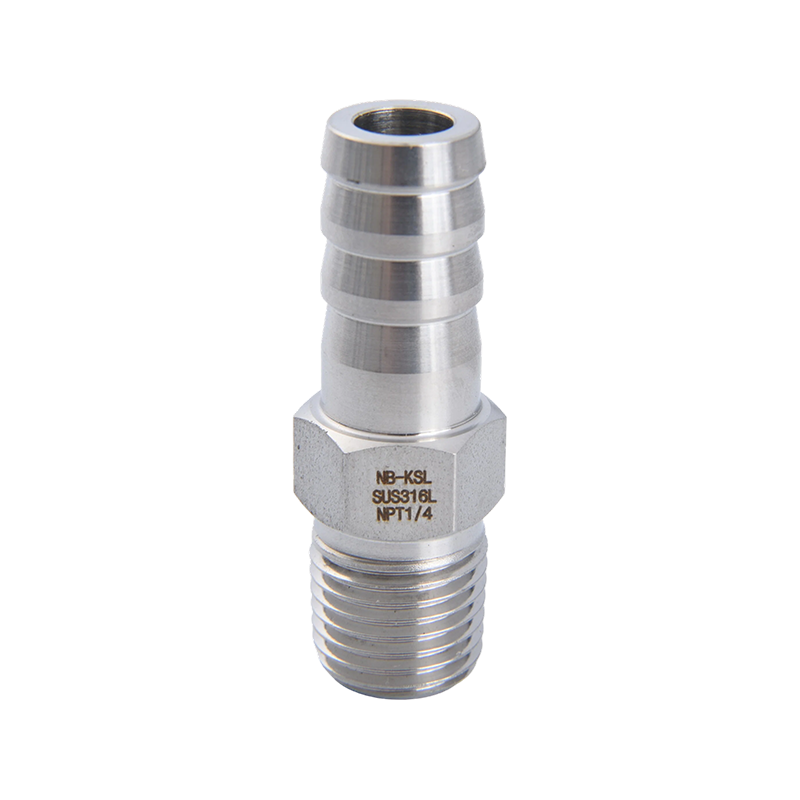

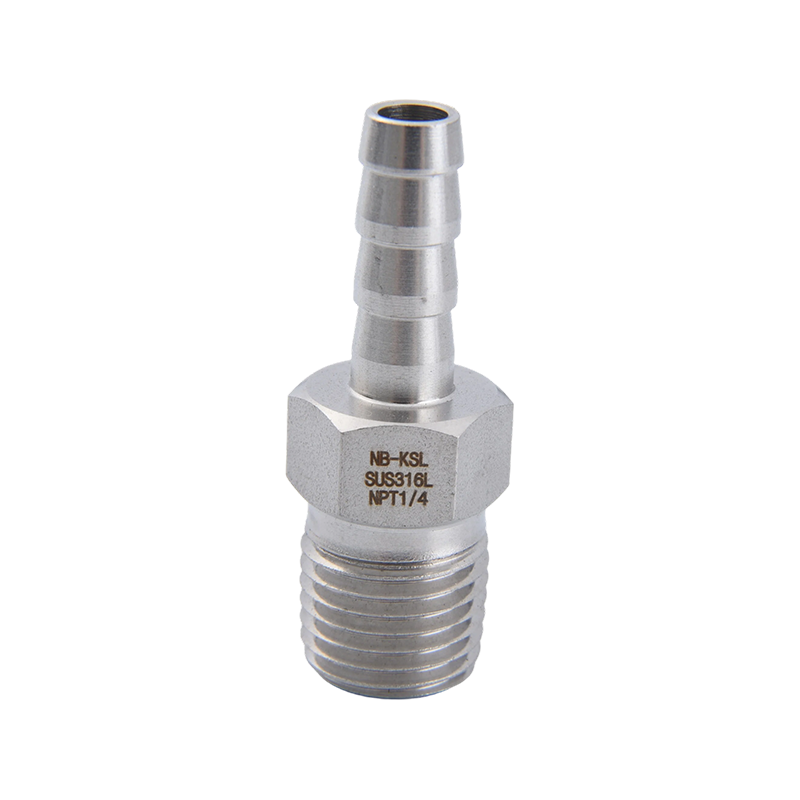

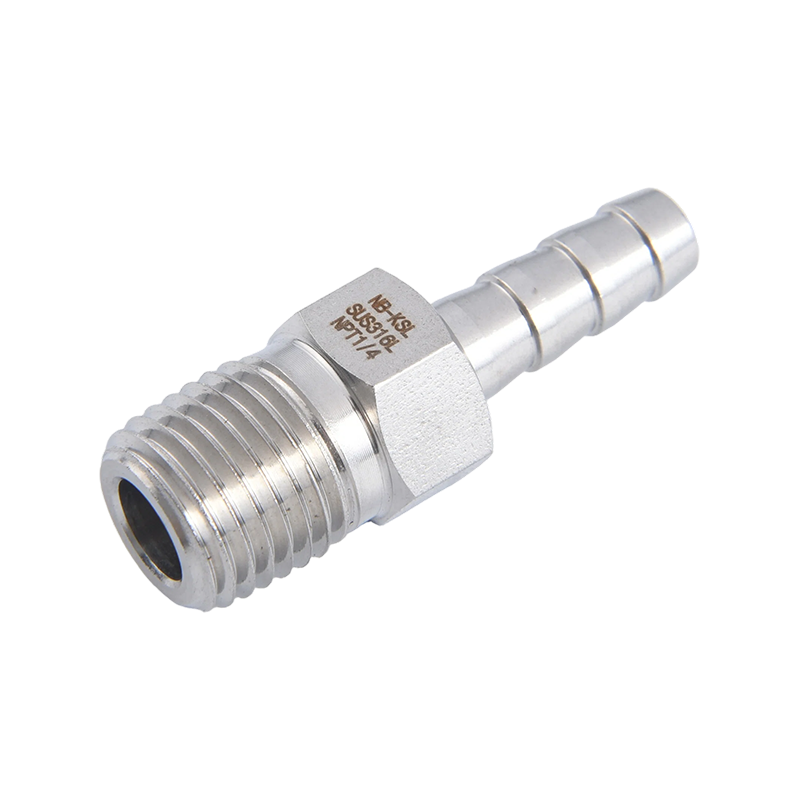

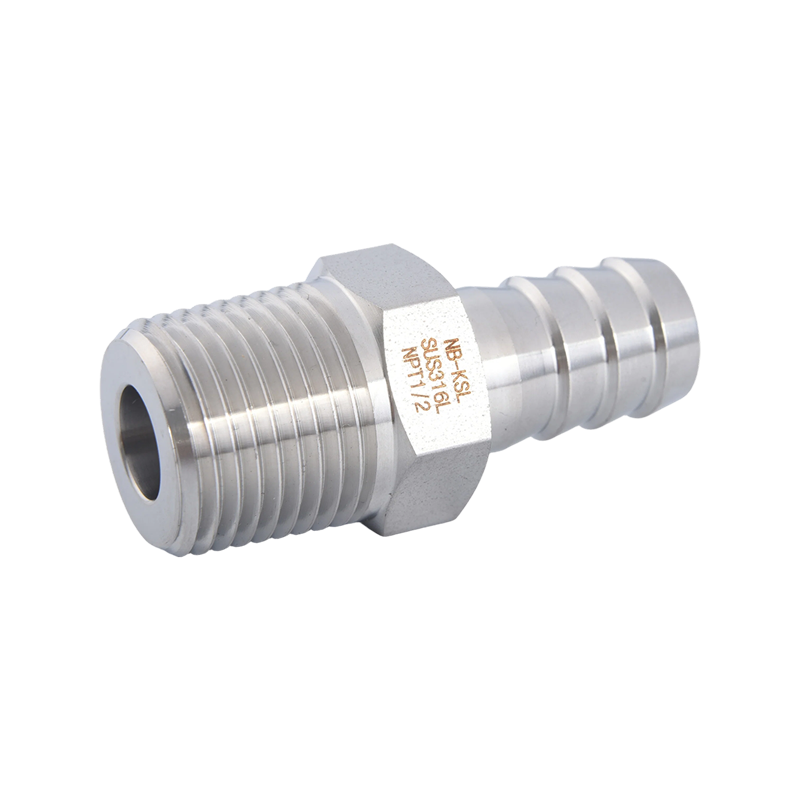

316L stainless steel male-thread hose barb fitting, precision CNC-machined with clearly defined barbs for a secure, reliable grip on hoses. Features standard threading for easy assembly. Resistant to acids, alkalis, and corrosion, with a passivated finish for superior rust resistance. Compatible with rubber, silicone, and PVC hoses; widely used in water treatment, new energy, instrumentation gas lines, chemical fluid handling, and laboratory piping systems. Custom thread specifications available. Minimum order quantity: 50 units.

  • Description
  • Contact Us

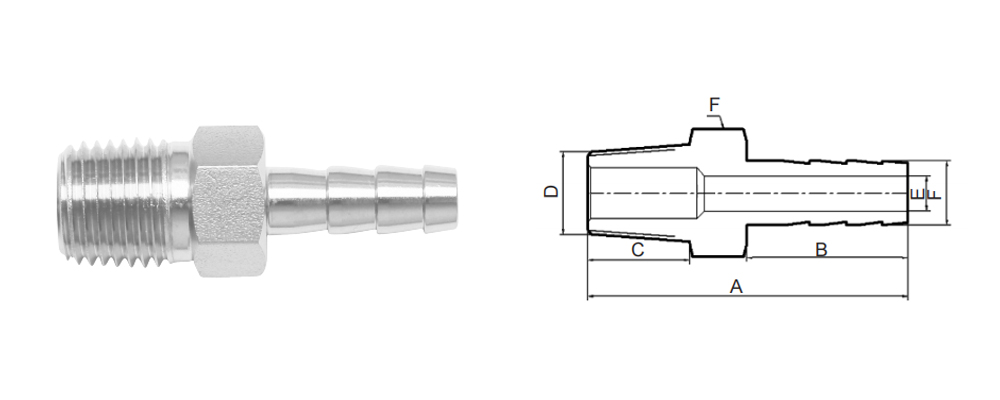

HOSE CONNECTOR

Connects metric tube to pipe

CATALOG NUMBER

A

B

C

D

E

D

F

1/4NPT-6mm

PJM-6-02-N

41.9

20.1

14

1/4NPT

4.8

7.27

14

1/4NPT-8mm

PJM-8-02-N

43.9

22.1

14

1/4NPT

5

9

14

1/4NPT-10mm

PJM-10-02-N

43.9

22.1

14

1/4NPT

7.1

11.9

14

1/2NPT-1/2

PJM-04-04-N

51.6

23.8

19

1/2NPT

9.7

15.12

22

All dimensions are in millimeters unless otherwise specified, only for reference subject to change.
