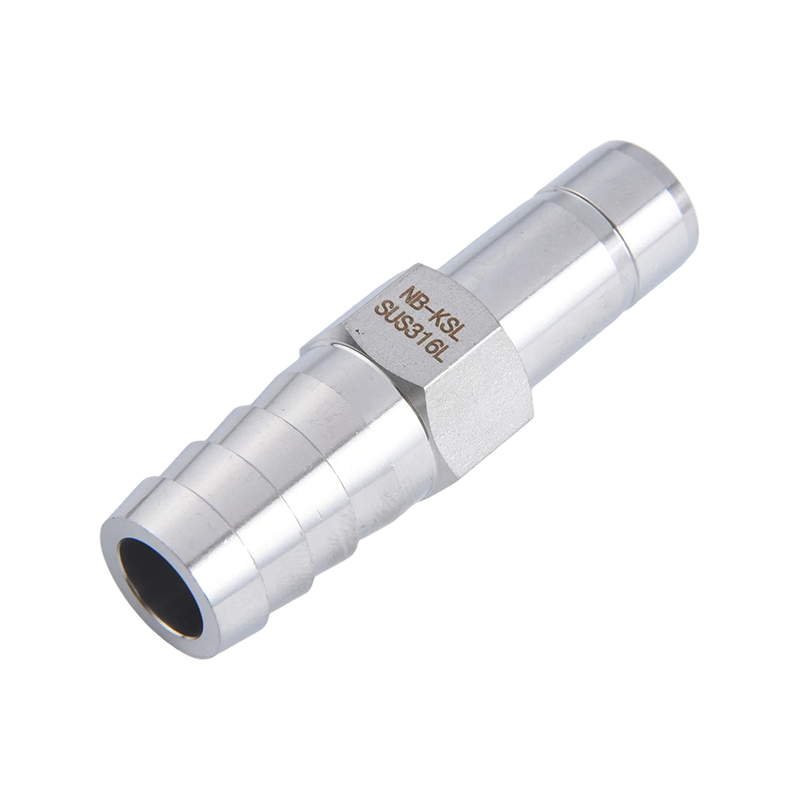

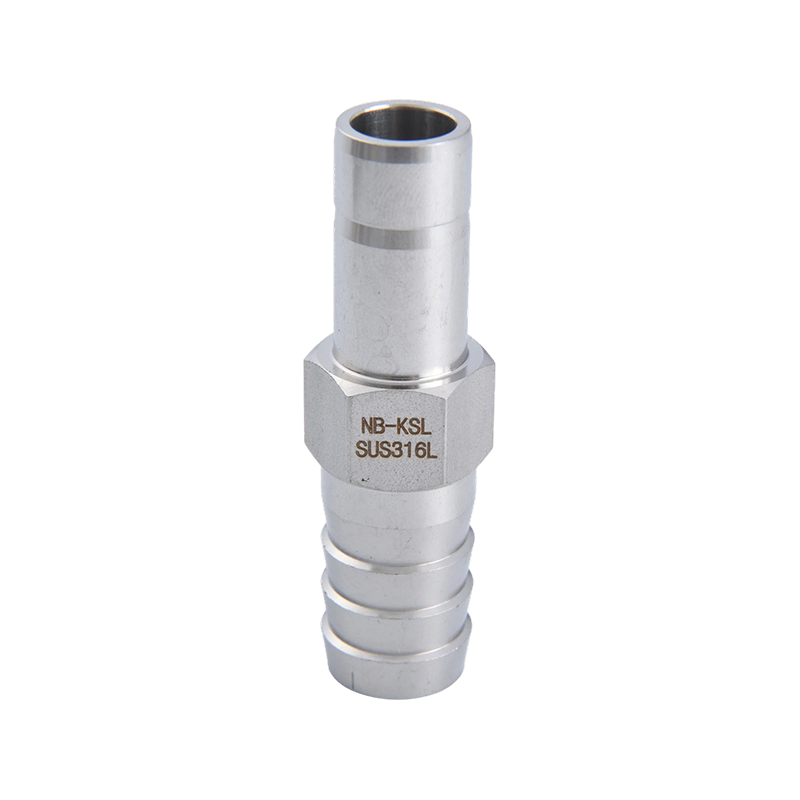

316L Stainless Steel Straight pipe pagoda connector

This connector is primarily used in straight pipe systems as a connecting component between two pipe sections, enabling rapid installation, disassembly, and maintenance. Its unique structure, featuring a pagoda-shaped stepped design, allows for even stress distribution under pressure, vibration, and temperature changes, reducing the risk of pipe leakage and wear. The pagoda-shaped structure is the core design concept of this connector. The multi-layered boss design increases the contact area between the connector and the pipe, enhancing mechanical stability; the stepped structure evenly distributes internal pressure and vibration forces, reducing the risk of fatigue failure; and the pagoda-shaped design facilitates multi-point sealing contact, improving overall sealing performance.

  • Description
  • Contact Us

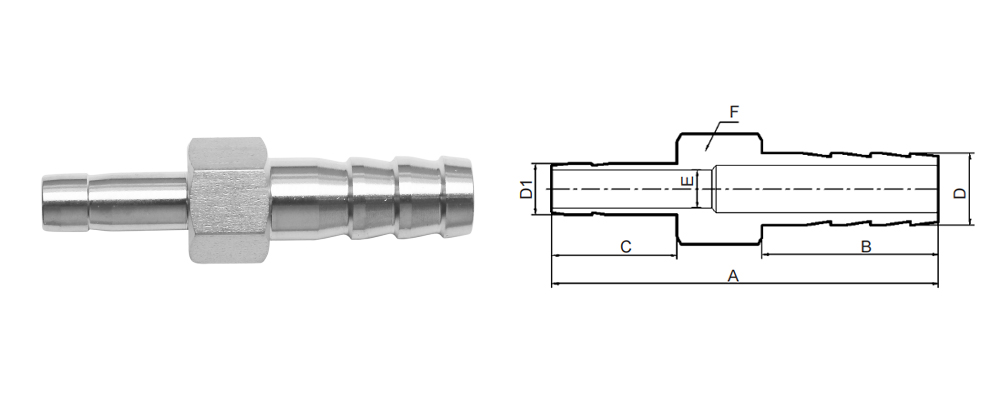

HOSE CONNECTOR

Connects fractional tube to pipe

CATALOG

NUMBER

A

B

C

E

D

D1

F

1/4-4mm

PJT-02-4

41.4

15

15.7

2.5

4.80

6.35

12

1/4-6mm

PJT-02-6

46.5

20.1

15.7

4.8

7.27

6.35

12

1/4-8mm

PJT-02-8

46.5

22.1

15.7

4.8

9

6.35

12

1/4-10mm

PJT-02-10

50.3

22.1

15.7

4.8

11.9

6.35

14

3/8-8mm

PJT-03-8

49.3

22.1

17.6

6

9

9.52

12

3/8-10mm

PJT-03-10

50.3

22.1

17.6

6

11.9

9.52

14

3/8-12mm

PJT-03-12

52.1

23.8

17.6

7.1

14.5

9.52

16

1/2-8mm

PJT-04-8

55.9

22.1

23.2

6

9

12.7

14

1/2-10mm

PJT-04-10

55.9

22.1

23.2

8

11.9

12.70

14

1/2-12mm

PJT-04-12

57.7

23.8

23.2

9.5

14.5

12.7

16

6mm-6mm

PJT-6-6

46.5

20.1

15.7

4.8

7.27

6

12

8mm-8mm

PJT-8-8

46.5

22.1

16.5

6

9

8

12

3/8-3/8

PJT-03-03

50.3

22.1

17.6

7.1

11.43

9.52

14

1/2-1/2

PJT-04-04

57.7

23.8

23.2

9.5

15.12

12.7

16

3/4-3/4

PJT-06-06

62

26.7

24.6

15

22.72

19.05

27
