316L Stainless steel angle type and 3 way port ball valve

This angle ball valve mainly consists of a valve body, valve ball, valve stem, sealing ring, valve cover, and handle. The L-shaped valve body allows for efficient pipeline layout at corner positions, reducing pipeline length and the number of bends. The three-way ball valve features a T-shaped internal channel design, enabling fluid diversion, merging, or switching. Three-way ball valves significantly reduce the number of valves in pipeline design, lowering installation costs and maintenance difficulty. The ball valve is operated by manually rotating the valve stem, causing the valve ball to rotate 90°, aligning the internal through-hole of the valve ball with the pipeline to achieve fluid flow on/off or switching. While angle ball valves achieve pipeline turning through a 90° bend, three-way ball valves achieve fluid diversion and merging operations by rotating the valve ball at different angles.

  • Description
  • Contact Us

Right-angle ball valve

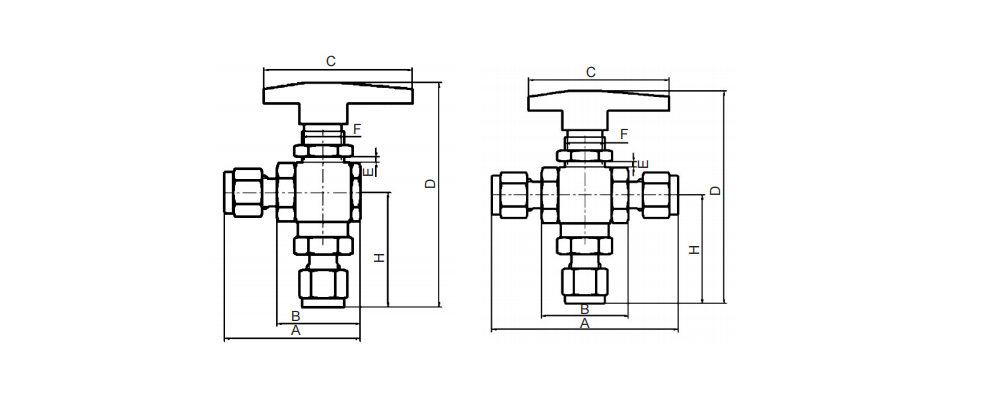

Specifications

A

B

D1 inner hole through-hole

C

D

H

E

F

BVL-010D

1/8LOK

44.5

28

2.4

50

74

37

14

BVL

02OD

1/4LOK

45.8

28

50

75.7

38.7

14

BVL

03OD

3/8LOK

47.6

28

50

77.7

40.7

14

BVL

04OD

1/2LOK

59.2

37

10

84

102

54.7

19

BVL-

06OD小体

3/4LOK

62.4

40

10

84

108

60.4

19

BVL

3OD

3mmLOK

44

28

2.4

50

74

37

14

BVL

6OD

6mmLOK

45.8

28

50

75.7

38.7

14

BVL

8OD

8mmLOK

46.7

28

50

76.7

39.7

14

BVL-100D

10mmLOK

47.6

28

50

77.7

40.7

14

BVL

12OD

12mmLOK

59.8

37

10

84

102

54.7

19

BVL

14OD

14mmLOK

59.8

37

10

84

101.6

54.2

19

BVL

01F

1/8

35.5

50

66.5

29.5

14

BVL

02F

1/4

39.5

50

69.5

32.5

14

BVL

03F

3/8

44.5

10

84

90.5

44.5

19

BVL-04F

1/2

45.5

/

10

84

91.5

45.5

19

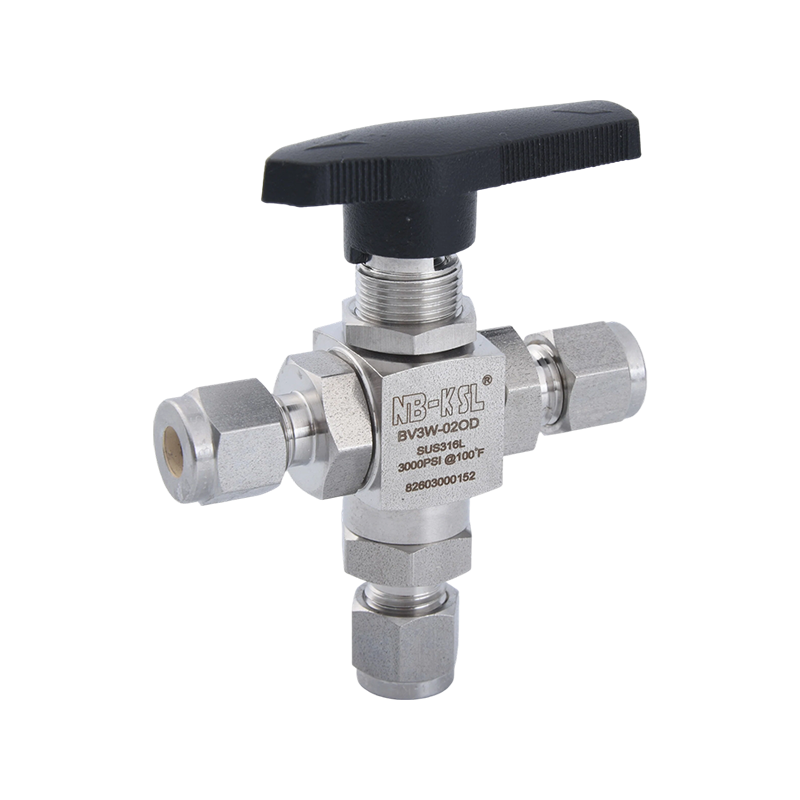

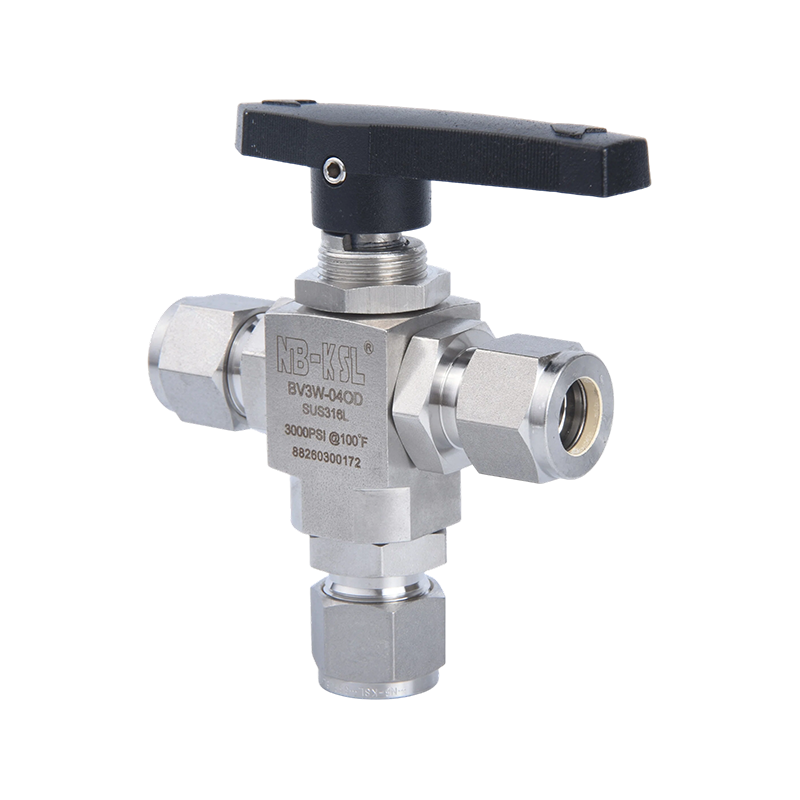

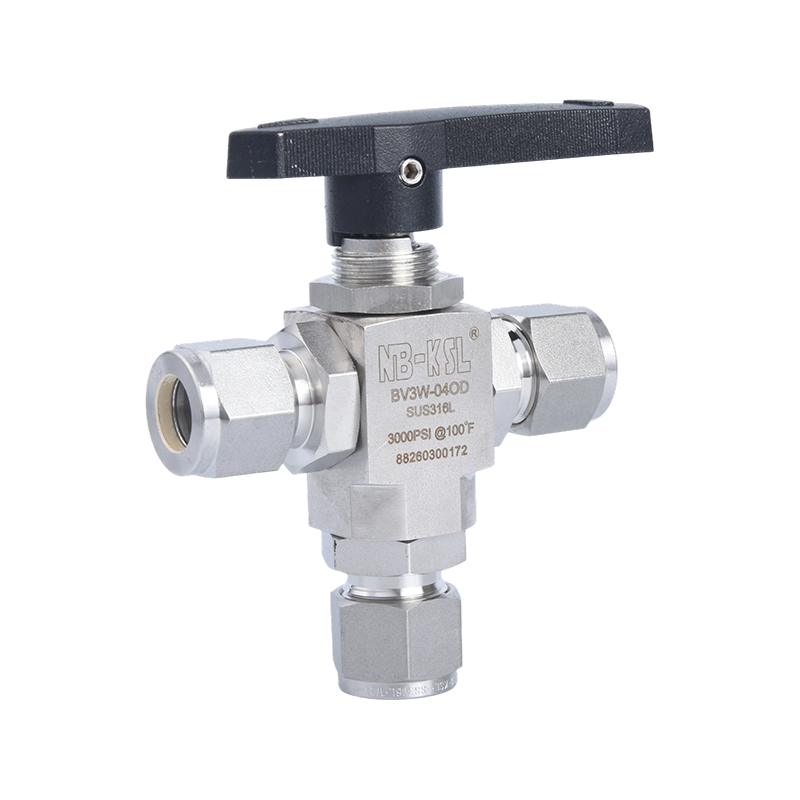

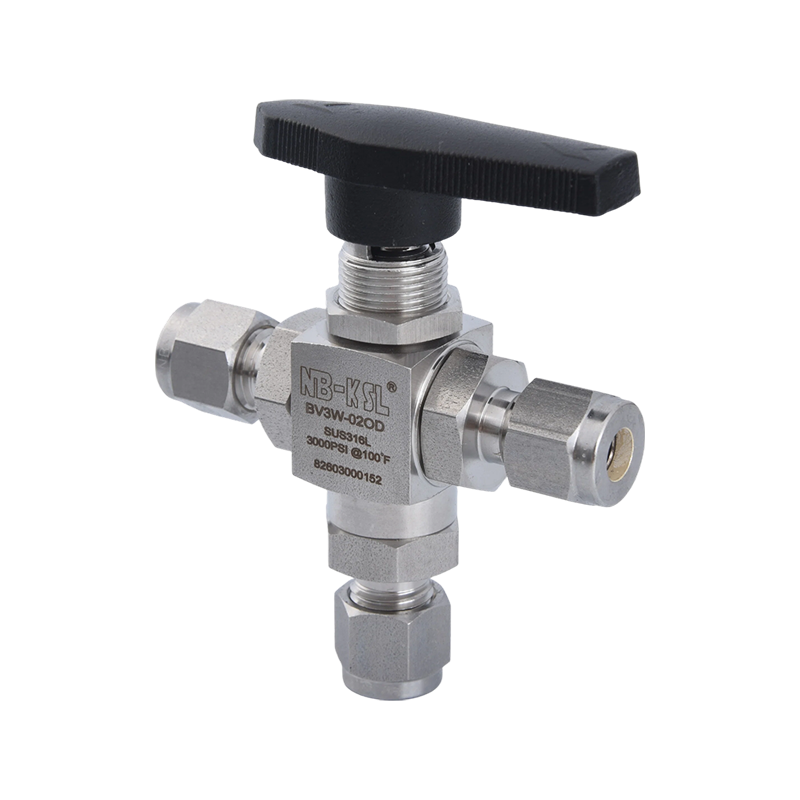

Three-way ball valve

Specifications

A

B

D1 inner hole through-hole

C

D

H

E

F

BV3W-010D

1/8LOK

63

31

2.4

50

74

37

14

BV3W 02OD

1/4LOK

66.4

31

50

75.7

38.7

14

BV3W-03OD

3/8LOK

70.5

31

50

77.7

40.7

14

BV3W-040D

1/2LOK

86

40

10

84

102

54.7

19

BV3W 06OD

3/4LOK

91

46

10

84

108

60.4

19

BV3W 3OD

3mmLOK

63

31

2.4

50

74

37

14

BV3W 4OD

4mmLOK

63

31

50

74

37

14

BV3W-6OD

6mmLOK

66.4

31

50

75.7

38.7

14

BV3W 8OD

8mmLOK

68.4

31

50

76.7

39.7

14

BV3W-100D

10mmLOK

70.5

31

50

77.7

40.7

14

BV3W 12OD

12mmLOK

86

40

10

84

102

54.7

19

BV3W-140D

14mmLOK

85

40

10

84

101.6

54.2

19

BV3W-160D

16mmLOK

85

40

10

84

101.6

54.2

19

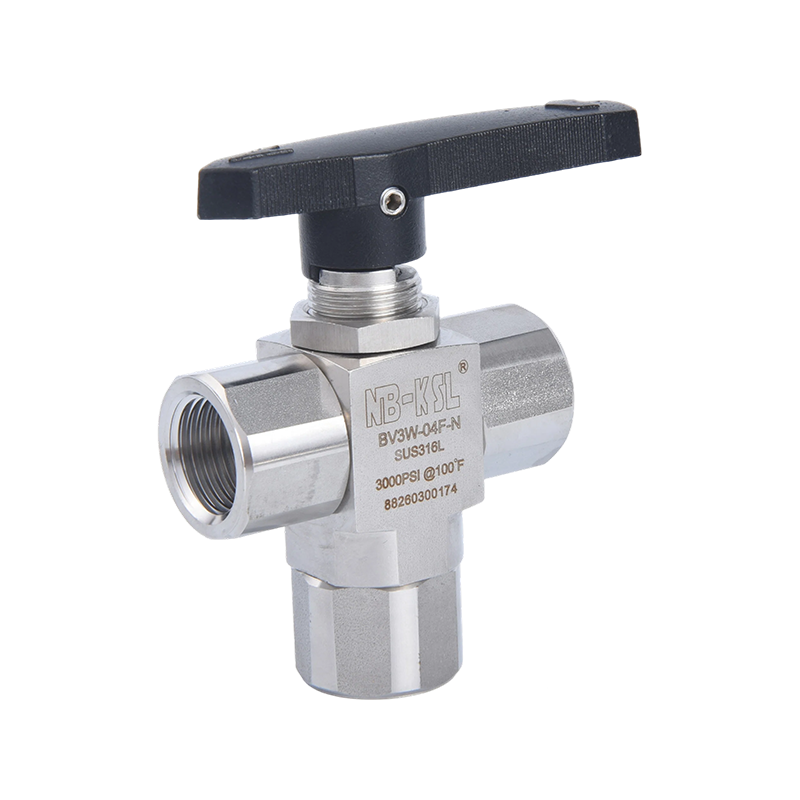

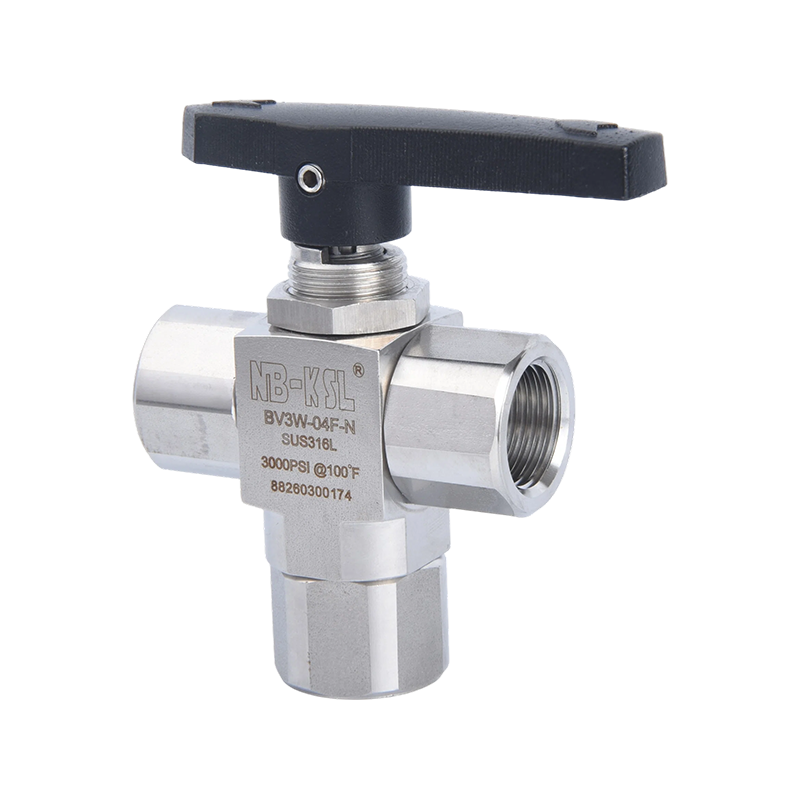

Three-way ball valve

NPT/PT

A

B

D1 inner hole through-hole

C

D

H

E

F

BV3W-01F

1/8

46

/

50

66.5

29.5

14

BV3W-02F

1/4

54

50

69.5

32.5

14

BV3W-03F

3/8

64

10

84

90.5

44.5

19

BV3W-04F

1/2

66

/

10

84

91.5

45.5

19
