316L Stainless steel straight-through internal and external thread connector

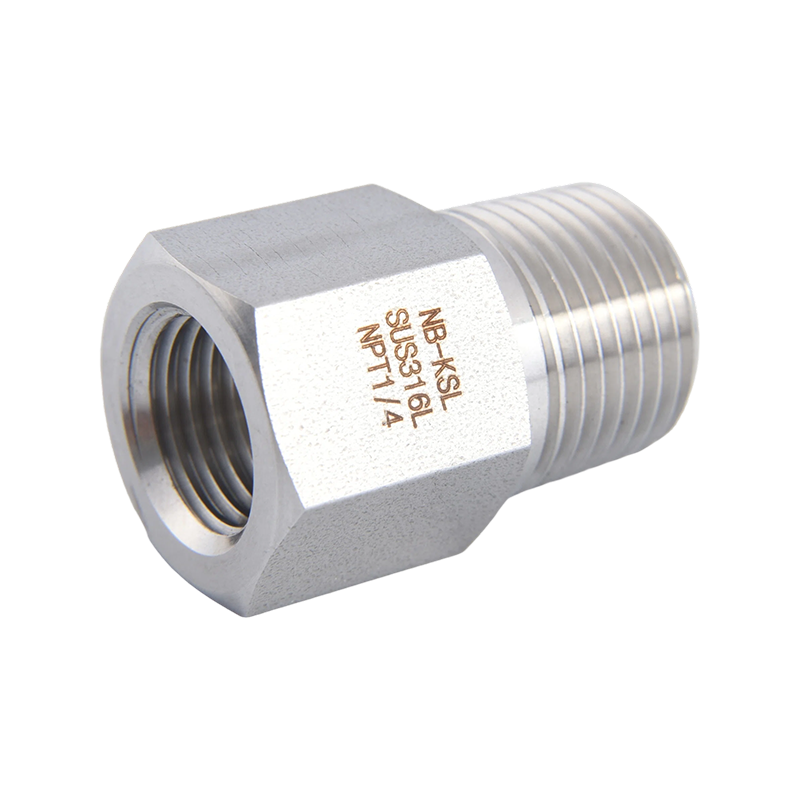

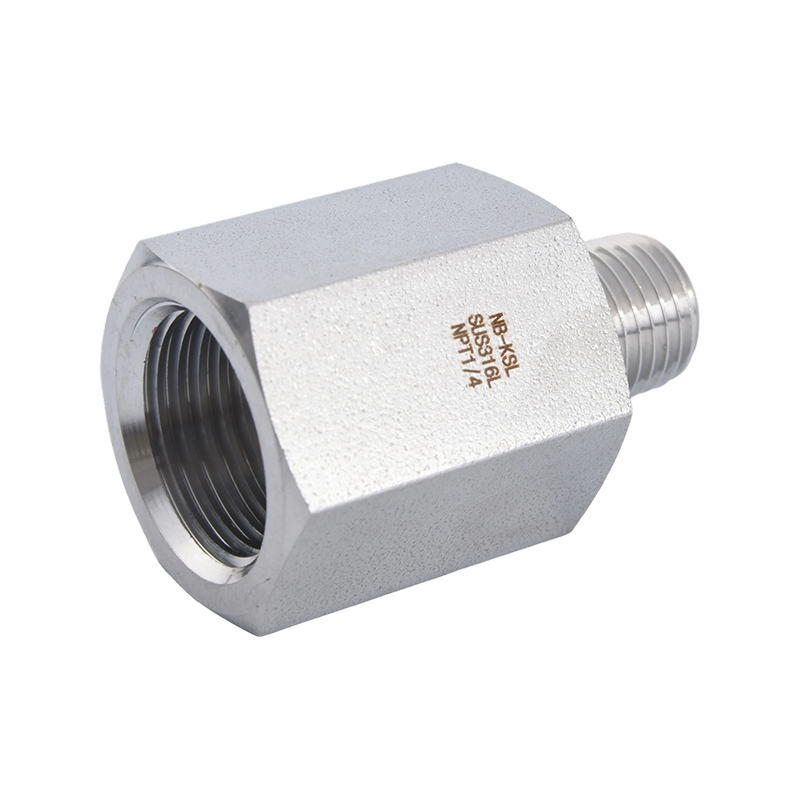

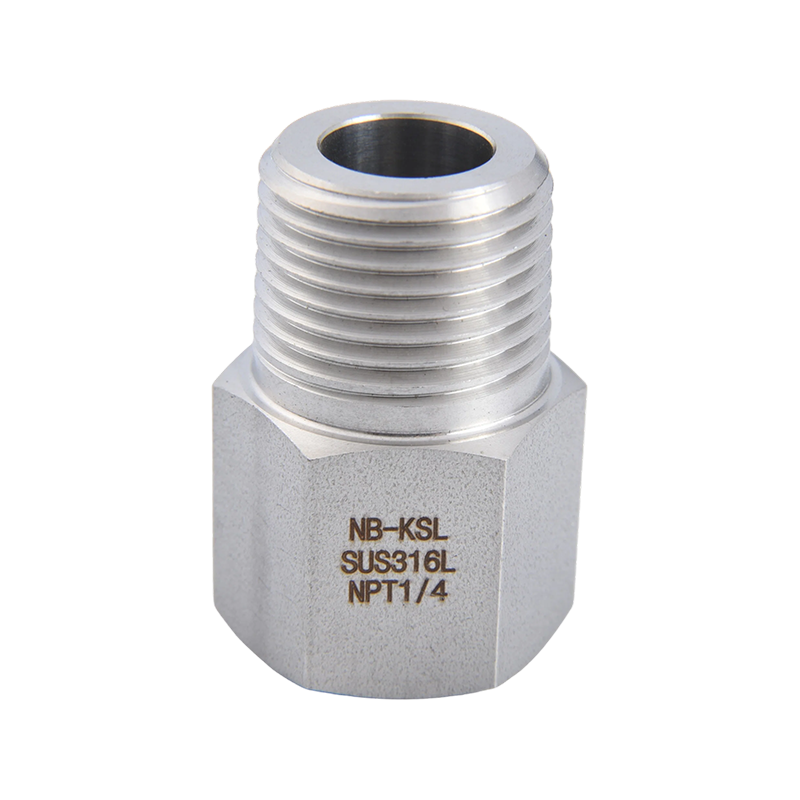

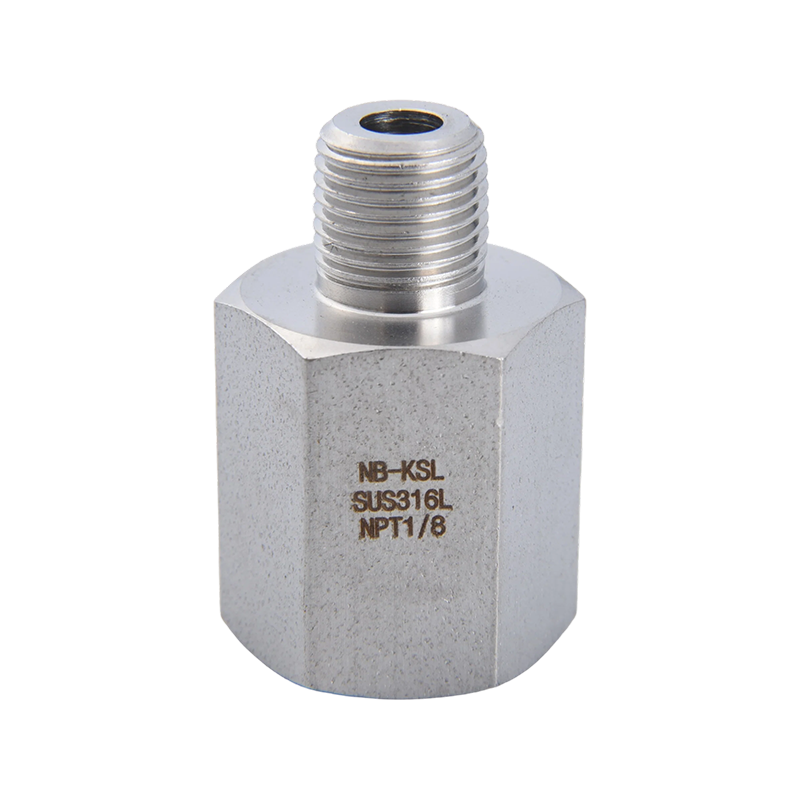

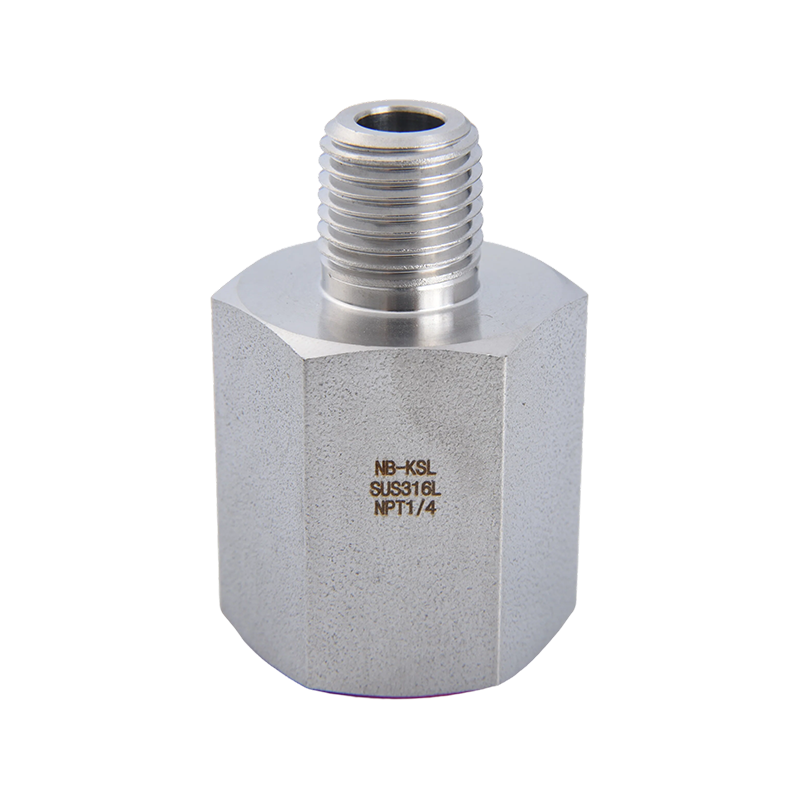

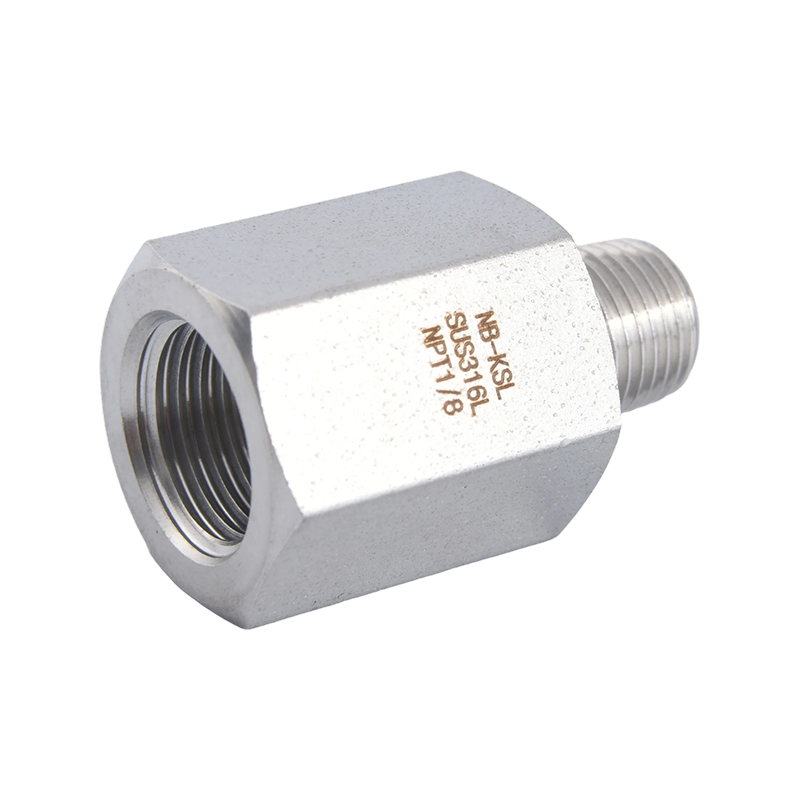

This fitting is a precision accessory used for changing connection types in piping systems. The product has a linear overall structure with a continuous internal flow channel. The connection end features an asymmetrical design with internal threads on one end and external threads on the other. Its core function is interface conversion and straight-line connection. It is primarily used to connect pipe fittings, valves, or equipment with the same nominal diameter but different interface types. This fitting is a crucial transition element when it is necessary to connect a valve port with external threads to a pipe flange or fitting with the same external threads, or when it is necessary to draw an externally threaded pipe from a tee or elbow with internal threads.

  • Description
  • Contact Us

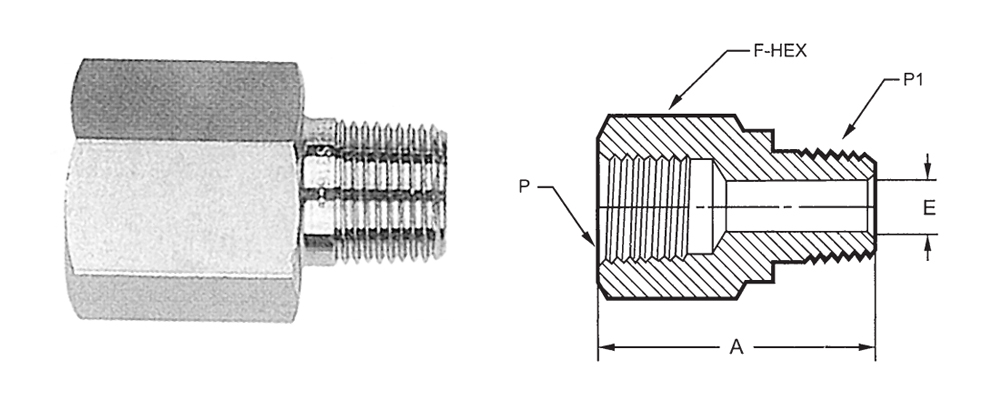

REDUCING ADAPTOR

P MALE PT/NPT SIZE

P1 MALE PT/NPT SIZE

CATALOG NUMBER

A

E MIN OPENING

F HEX FLAT

1/8

1/8

RA-01-01

27.7

4.8

14

1/4

1/8

RA-02-01

32

4.8

19

1/4

1/4

RA-02-02

35.6

7.1

19

3/8

1/8

RA-03-01

33.8

4.8

22

3/8

1/4

RA-03-02

38.1

7.1

22

3/8

3/8

RA-03-03

38.1

9.5

22

1/2

1/8

RA-04-01

40.1

4.8

27

1/2

1/4

RA-04-02

44.7

7.1

27

1/2

3/8

RA-04-03

44.7

9.6

27

1/2

1/2

RA-04-04

49.3

11.9

27

3/4

1/4

RA-06-02

46.2

7.1

32

3/4

3/8

RA-06-03

46.2

9.6

32

3/4

1/2

RA-06-04

51.3

11.9

32

1"

1/4

RA-08-02

49.8

7.1

41

1"

3/8

RA-08-03

49.8

9.6

41

1"

1/2

RA-08-04

54.9

11.9

41

1"

3/4

RA-08-06

55.1

15.7

41

All dimensions are in millimeters. Dimensions for reference only, Subject to change.
