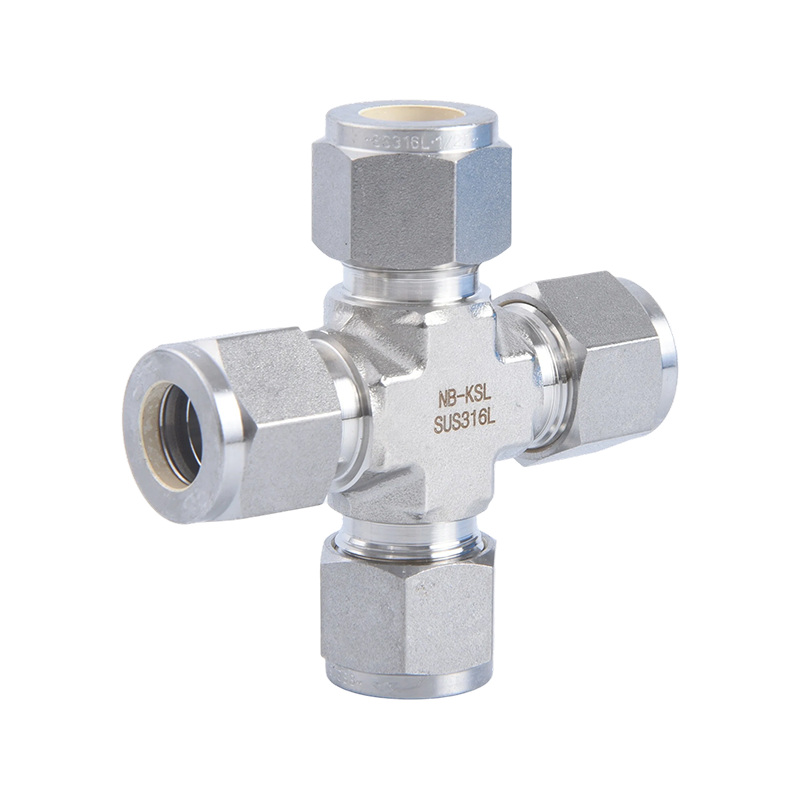

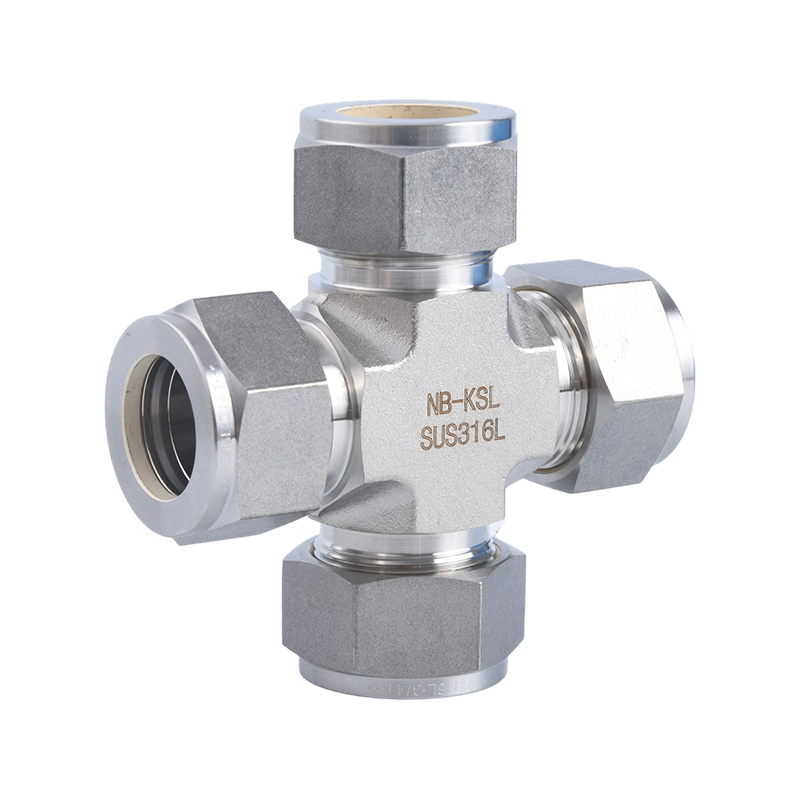

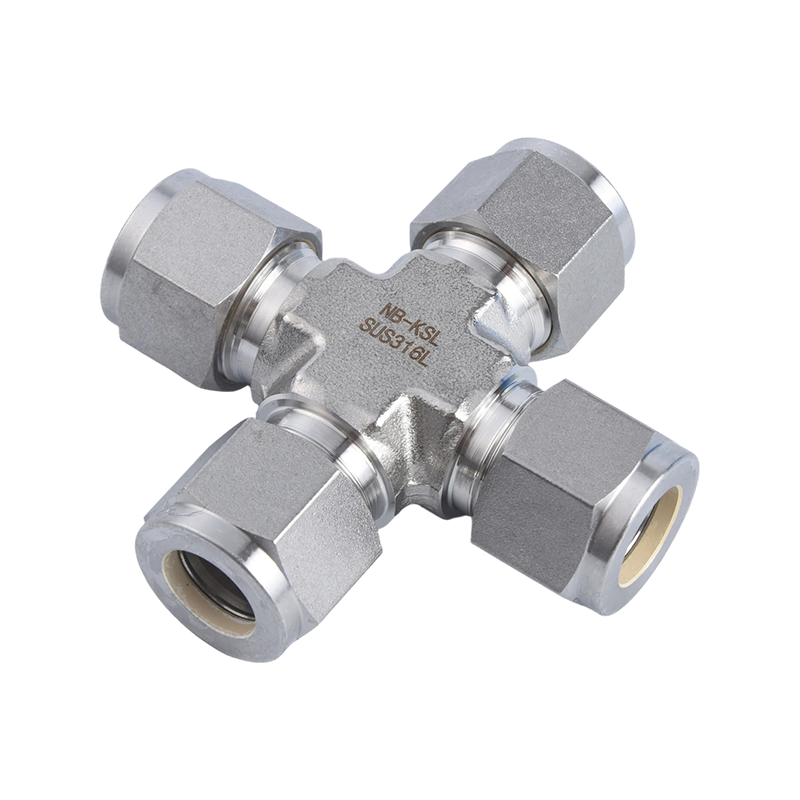

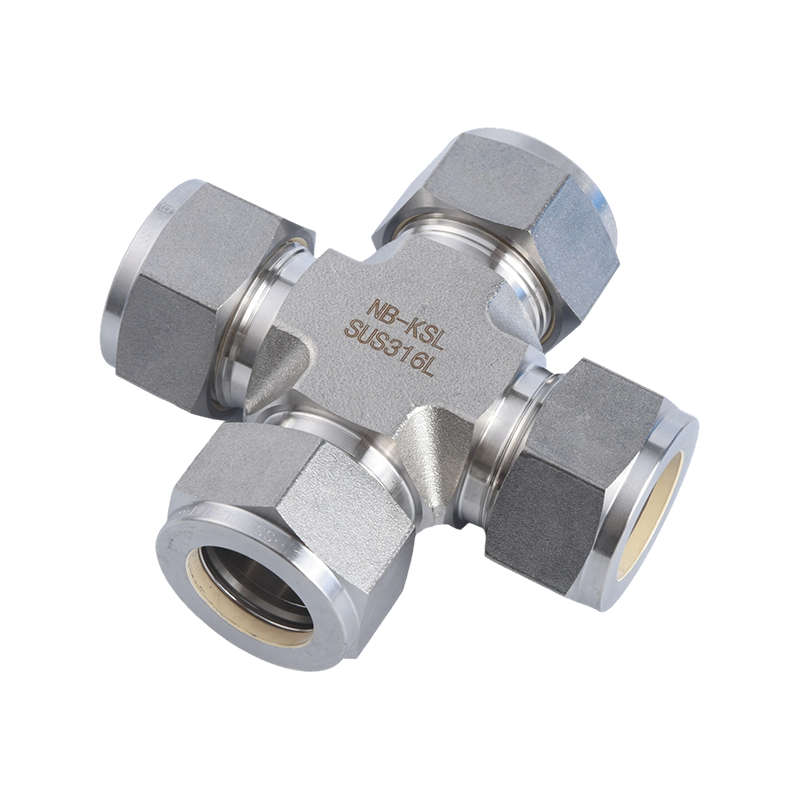

316L Stainless Steel Compression fitting four-way connector

In complex piping and control systems, the 316L Stainless Steel Compression Union Cross serves as a critical junction for multi-directional fluid distribution or convergence. By enabling four-way fluid communication through a single component, it significantly enhances system integration while minimizing space requirements and potential leak points.

Core Product Advantages

Integrated Precision Forged Structure:
Manufactured from high-strength 316L stainless steel through a solid forging process. Compared to welded components, the one-piece forged body offers superior structural integrity and mechanical strength, effectively resisting high-pressure pulses and external mechanical stress.

Ultimate Corrosion Resistance:
The ultra-low carbon 316L material provides exceptional resistance to various acidic or alkaline media and salt spray environments. Its excellent chemical stability makes it the ideal choice for harsh environments such as petrochemical and offshore engineering.

High-Reliability Double Ferrule Sealing:
The classic double ferrule design creates an airtight metal-to-metal seal at all four ports. This unique mechanical locking method ensures zero-leak performance even under continuous vibration, severe pressure fluctuations, or extreme high-to-low temperature cycling.

Symmetrical Flow Path Design:
Precise internal machining ensures that all four flow paths are perfectly symmetrical. This minimizes turbulence and pressure loss at fluid branches, providing a stable fluid environment for precise instrument parameter feedback.
