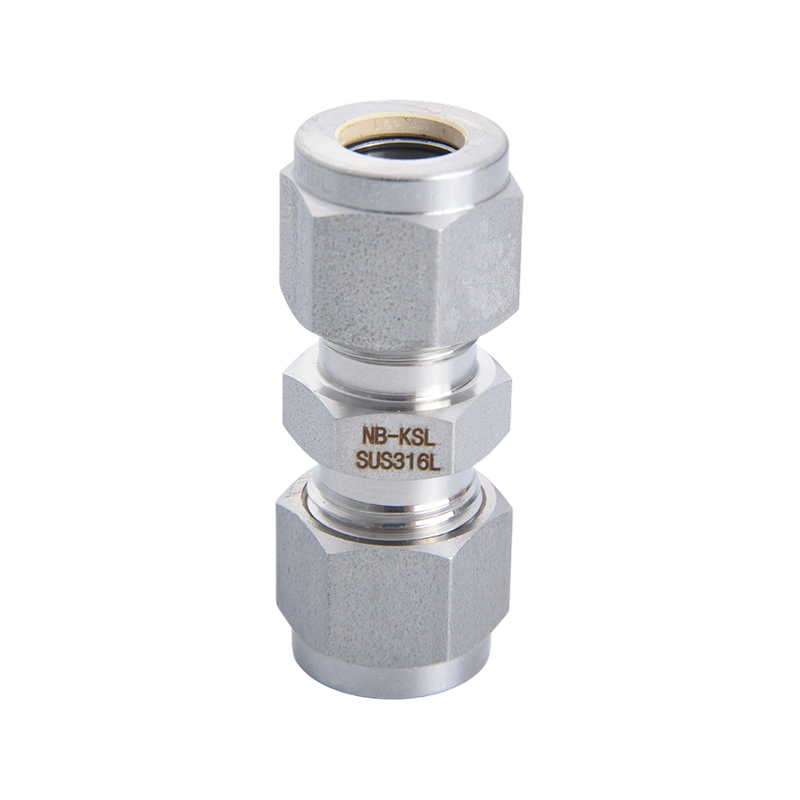

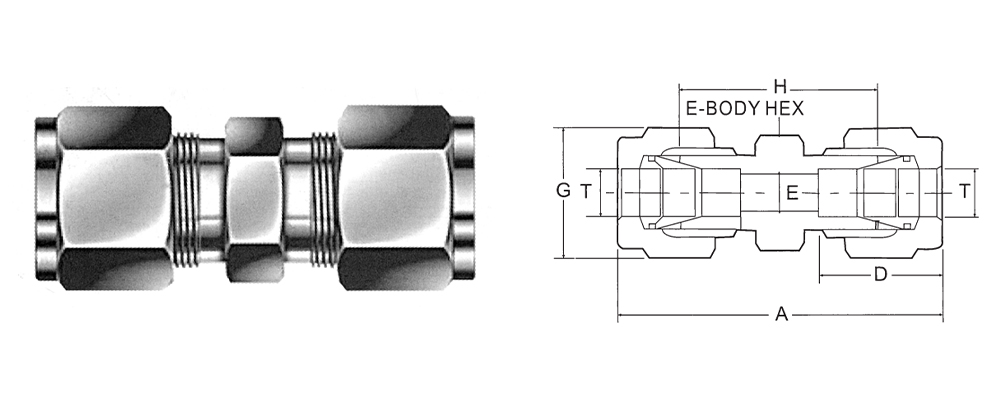

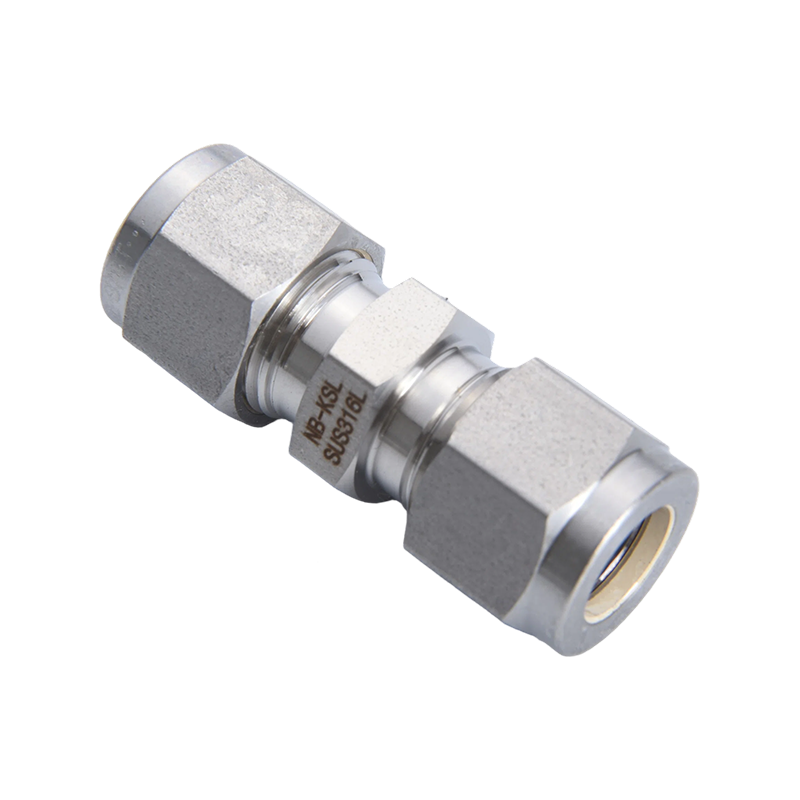

316L Stainless steel compression fitting straight connector

1. Superior Corrosion Resistance (316L Grade)
Low Carbon Advantage: The "L" stands for Low Carbon. Compared to standard 316, 316L minimizes carbide precipitation during welding or high-temperature exposure, effectively preventing intergranular corrosion.
Pitting Resistance: With a high molybdenum content, it provides excellent chemical stability against pitting and crevice corrosion in chloride-rich environments, such as seawater or acidic media.

2. Mechanical Double Ferrule Sealing
Zero-Leak Design: The double ferrule system utilizes a front ferrule for sealing and a back ferrule for tube gripping. This metal-to-metal seal ensures a leak-tight connection even in high-vacuum or gas-molecular transport applications.
Vibration Resistance: The spring-like action of the back ferrule dampens mechanical vibrations and pressure pulses within the system, preventing the nut from loosening over time.

3. High Pressure and Extreme Temperature Capability
Pressure Rating: Depending on the tube wall thickness, these fittings can typically handle working pressures from 3000 psi to 6000 psi (approximately 206 to 413 bar).
Wide Temperature Range: Operates reliably from cryogenic temperatures up to 649 degrees Celsius (1200 degrees Fahrenheit), maintaining seal integrity during thermal cycling.

4. Ease of Installation and Maintenance
No Welding Required: As a purely mechanical connection, it eliminates the need for fire, threading, or flaring, making it ideal for hazardous or explosive environments.
Reusability: The fitting can be disassembled and reassembled multiple times without damaging the sealing surfaces, significantly reducing long-term maintenance costs.
Consistency: By following the standard 1-1/4 turn pull-up rule, users can ensure consistent, high-quality connections regardless of the installer's skill level.

5. High Internal Cleanliness
Precision Surface Finish: 316L stainless steel is highly compatible with Electropolishing (EP) or Bright Annealing (BA). The smooth internal bore prevents particle entrapment and contamination, making it the preferred choice for high-purity gas and ultra-pure water systems.
