VCR External thread straight-through ball valve

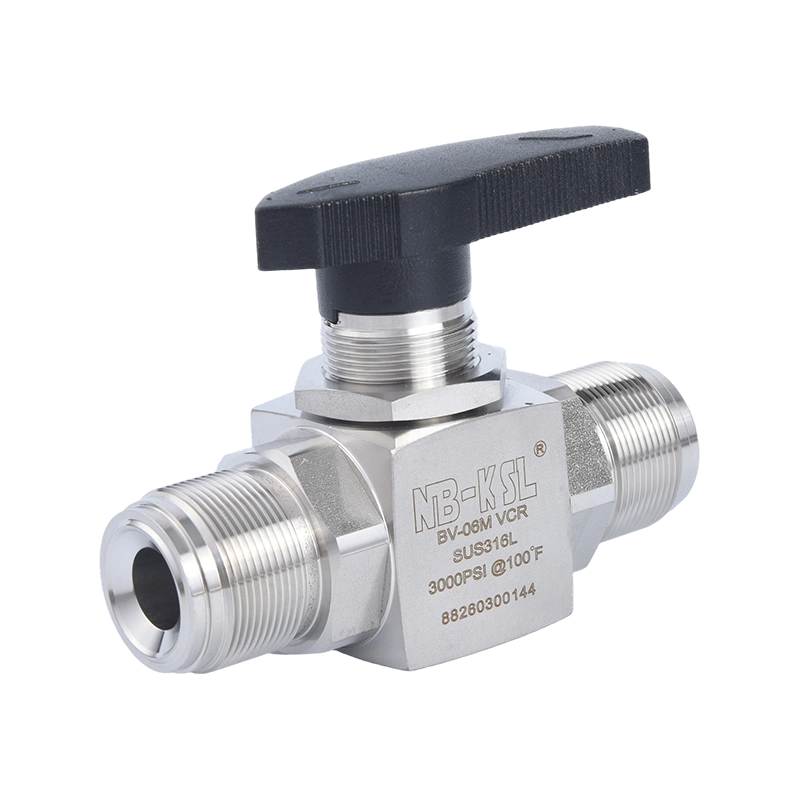

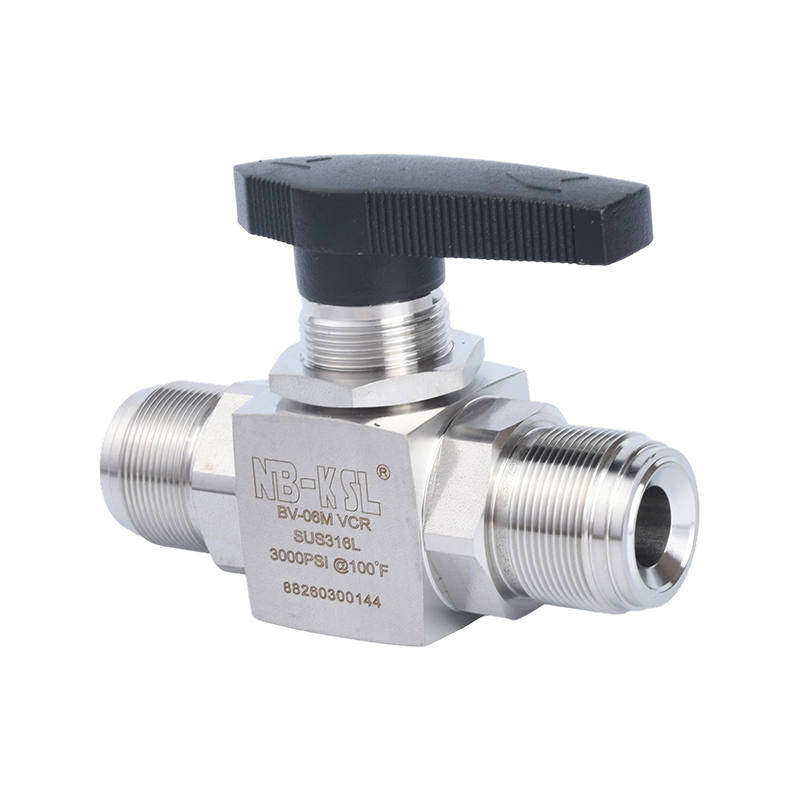

The VCR straight-through ball valve is a quarter-turn, quick-acting valve designed for ultra-high-purity piping systems in the semiconductor, hydrogen energy, and photovoltaic industries. Its body is machined from a single piece of 316L-VAR high-purity stainless steel bar stock and features integrated VCR male end connections; it utilizes a metal gasket to achieve an all-metal seal, eliminating the risk of contamination associated with rubber O-rings. Unlike VCR needle valves, which require slow, multi-turn adjustments, this ball valve transitions between fully open and fully closed with a simple 90-degree turn of the handle. Its straight-through, high-Cv flow path ensures minimal pressure drop, making it ideal for the rapid isolation and switching of high-purity gas lines, though it is not suitable for precision flow throttling. VCR nuts and metal gaskets are complementary consumables that must be selected separately; the valve is widely used in specialty gas cabinets, VMB panels, and vacuum process piping systems.

  • Contact Us
About Us
Ningbo Keshengli Stainless Steel Valve Co., Ltd.
Ningbo Keshengli Stainless Steel Valve Co., Ltd.

It is VCR External thread straight-through ball valve Suppliers and VCR External thread straight-through ball valve Factory.Our company specializes in the manufacturing and sales of stainless steel pipe fittings and valves in national (GB), American (ANSI/ASME), and British (BS) standards. We are equipped with advanced CNC machining centers, material testing and heat treatment facilities, a skilled technical team, and a robust production workforce. With a sound quality management system and excellent after-sales service, we sincerely serve customers worldwide.

Our main products include: ferrule-type fittings, threaded fittings, instrument fittings, instrument needle valves, instrument ball valves, ferrule needle valves, ferrule ball valves, compact high-pressure instrument needle valves, compact high-pressure instrument ball valves, and high-pressure check valves. The primary material is SS316 stainless steel. These products are widely used in petrochemical, petroleum, electric power, pharmaceutical, food, papermaking, marine, and general machinery industries.

We strictly control product quality at every stage and are committed to delivering superior quality through advanced technology and professional management. Adhering to the business philosophy of "Quality First, Customer Supreme, Integrity Foremost," we strive to build the "NB-KSL" brand image, better serve our customers, and work together with you to create a prosperous future.
