Male female thread tee

Home / Products / Stainless Steel Tube Fittings / Tube Fittings / Male female thread tee

Male female thread tee

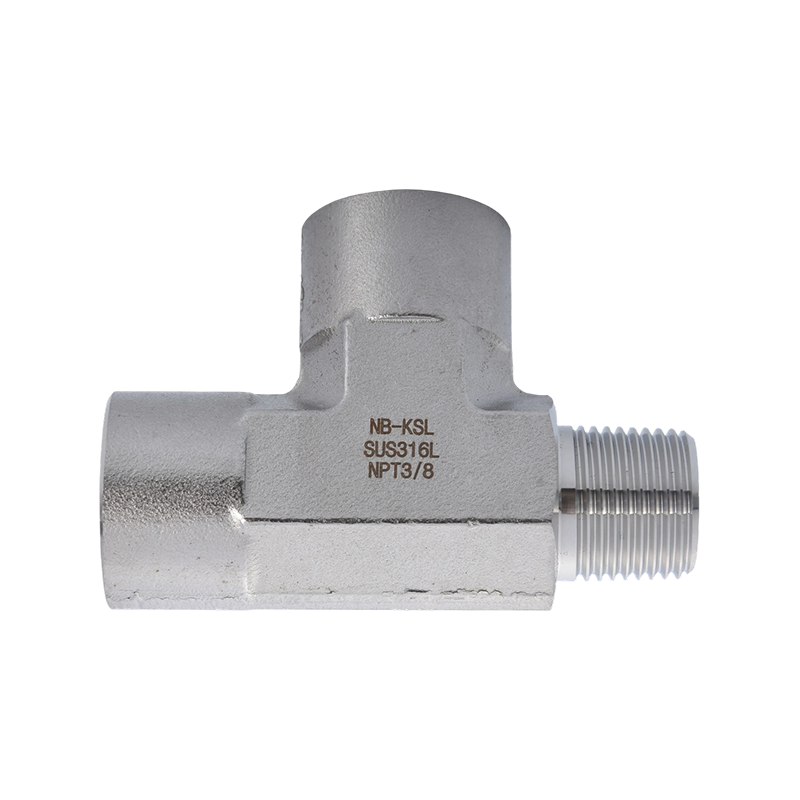

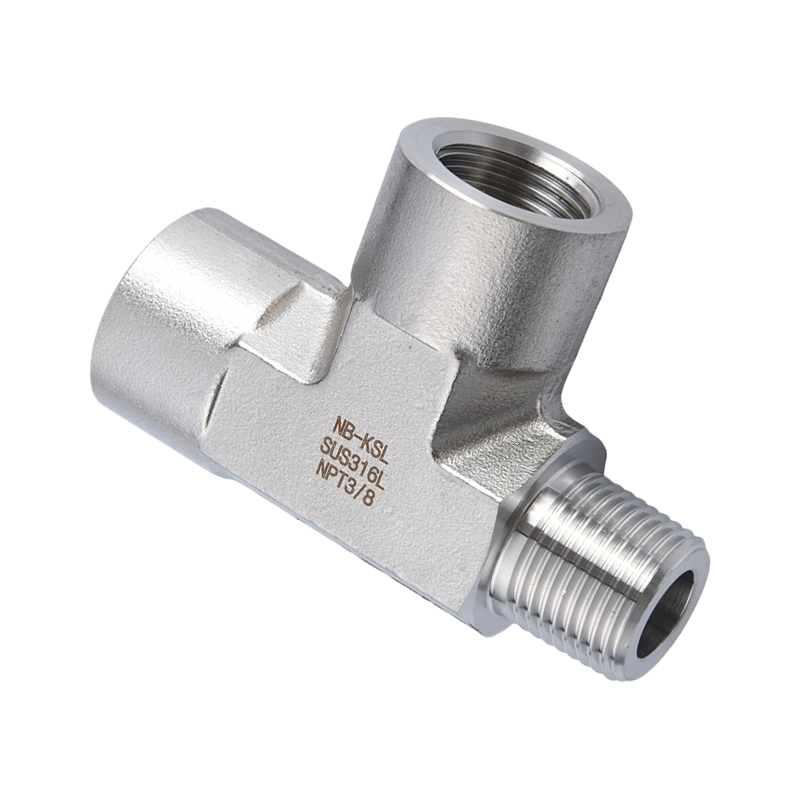

The 316L Male-Female-Female (MFF) tee is a T-shaped fitting designed for flow splitting or merging; it features one male threaded end and two female threaded ends and is manufactured via integral forging from ultra-low carbon 316L stainless steel. The male-threaded port connects to the main pipeline, while the two female-threaded ports facilitate flow splitting or media convergence. Alternatively, a female port can connect to the main line while the male port connects to a valve, with the remaining female port serving as a connection point for instrumentation (such as pressure sensing) or branch lines. Thread options include NPT, BSP, G, and M (metric) standards. These fittings utilize threaded connections—eliminating the need for welding—and are compatible with pipelines conveying gases, liquids, steam, and other industrial media, effectively resolving issues related to thread incompatibility at installation sites.

Contact Us Contact Us
PREV：Internal and external thread tee connector NEXT：External dental tee
  • Description
  • Contact Us

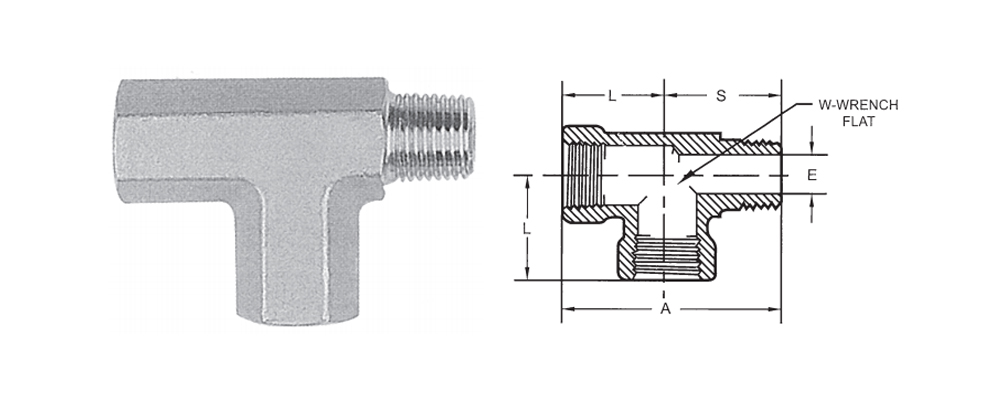

P MALE/FEMALE PT/NPT SIZE

CATALOG NUMBER

A

E

L

S

W

1/8

ST-01

46

4.8

23

23

16

1/4

ST-02

48.5

7.1

24

24.5

17.5

3/8

ST-03

63

9.6

32

31

23

1/2

ST-04

74

11.9

38

36

28

3/4

ST-06

76.7

15.9

35

41.7

34.5
