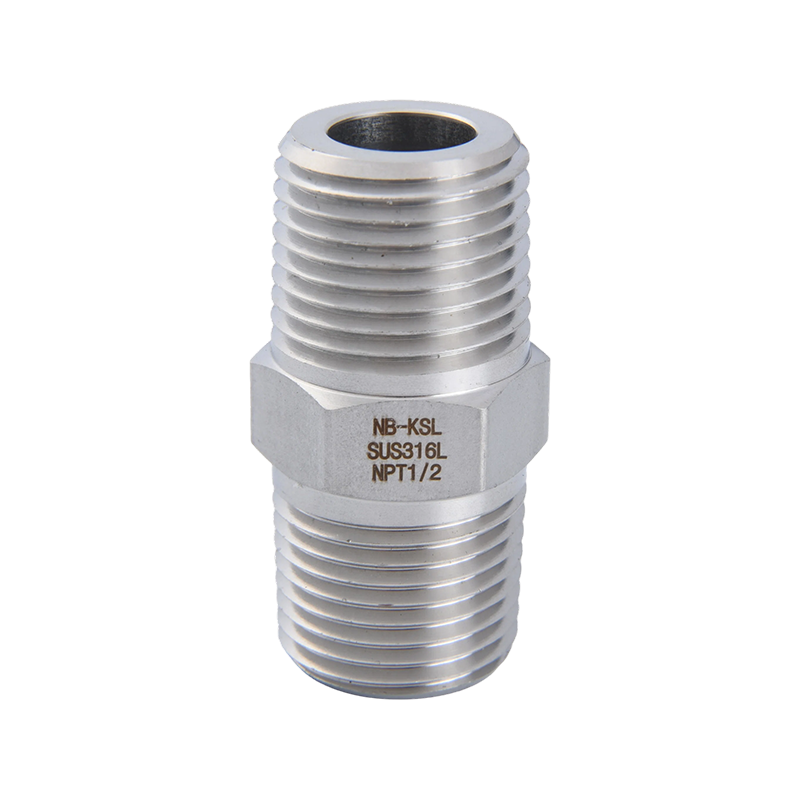

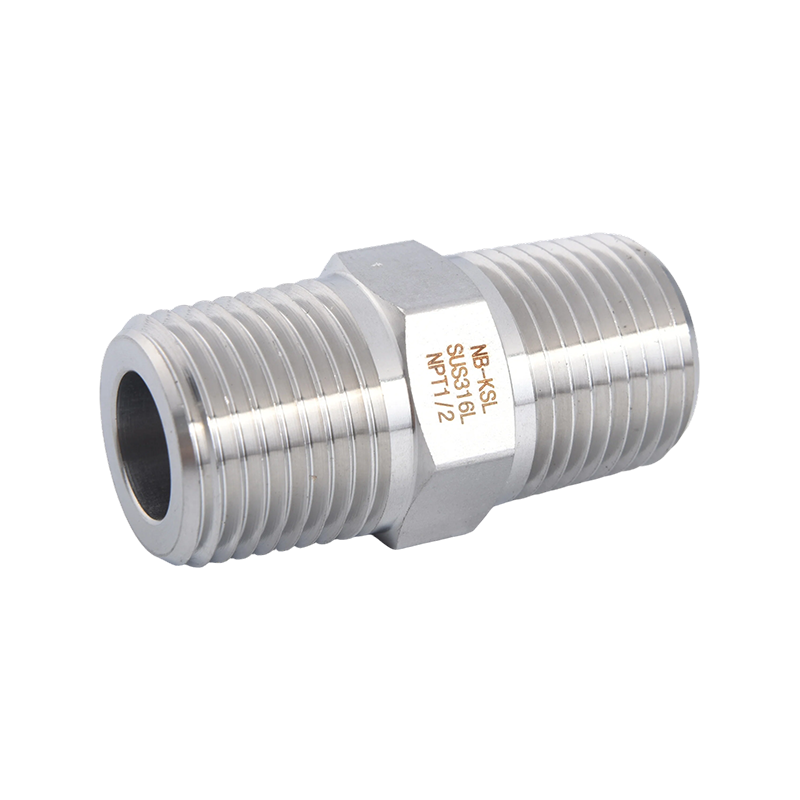

316L Stainless steel double external thread connector

The 316L Stainless Steel Double External Thread Connector is a linear mechanical fitting used for rigid connections in piping systems. Its core feature is that both ends have external threads, and the middle typically has a hexagonal or circular force-bearing drive section. This product is designed to achieve a straight connection and tight seal between two pipe, valve, or equipment ports with internal threads. The threaded sections at both ends of the body are the core areas for achieving the connection function; the middle force-bearing section is designed with a standard hexagonal head structure, and its face width conforms to the standard wrench opening specification. This part not only applies torque during installation but also acts as a structural reinforcement, increasing the overall tensile strength of the connector; the transition shoulder connects the threaded section and the hexagonal head, and is designed with a relief groove or chamfer to eliminate stress concentration points.

  • Description
  • Contact Us

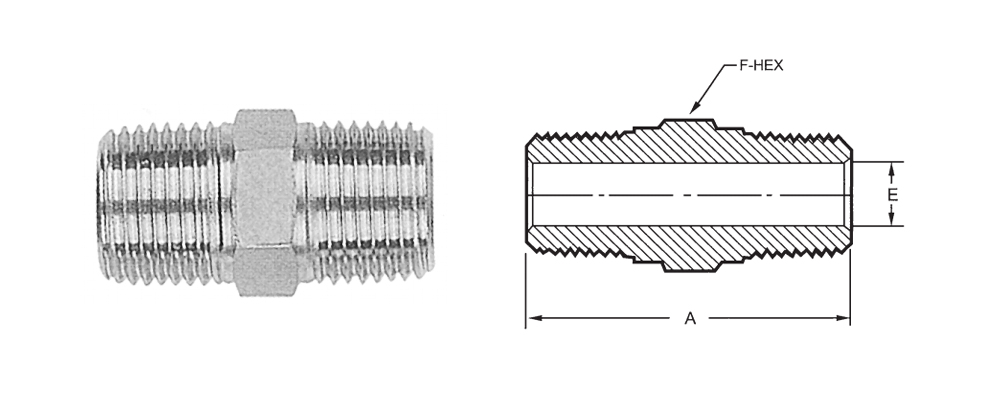

HEX NIPPLE

(METRIC)

  P MALE PT/NPT SIZE

CATALOG NUMBER

A

E MIN OPENING

F HEX FLAT

  1/8

HN-01

25.6

4.8

12

  1/4

HN-02

36

7.1

14

  3/8

HN-03

36.3

9.6

17

  1/2

HN-04

46.7

11.9

22

  3/4

HN-06

46.7

15.7

27

  1"

HN-08

58.9

21.5

35
