External dental tee

Home / Products / Stainless Steel Tube Fittings / Tube Fittings / External dental tee

External dental tee

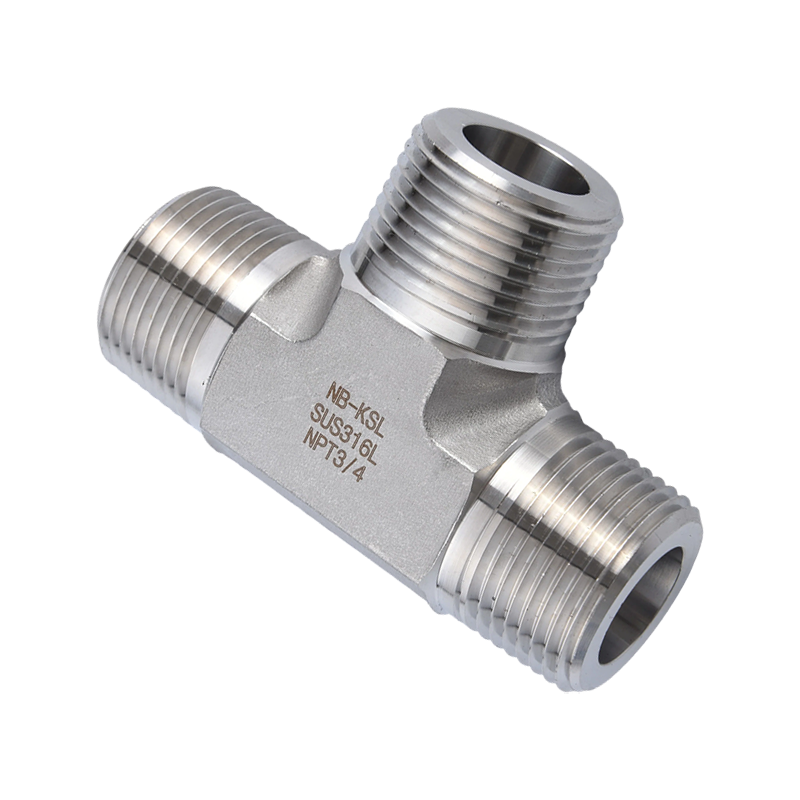

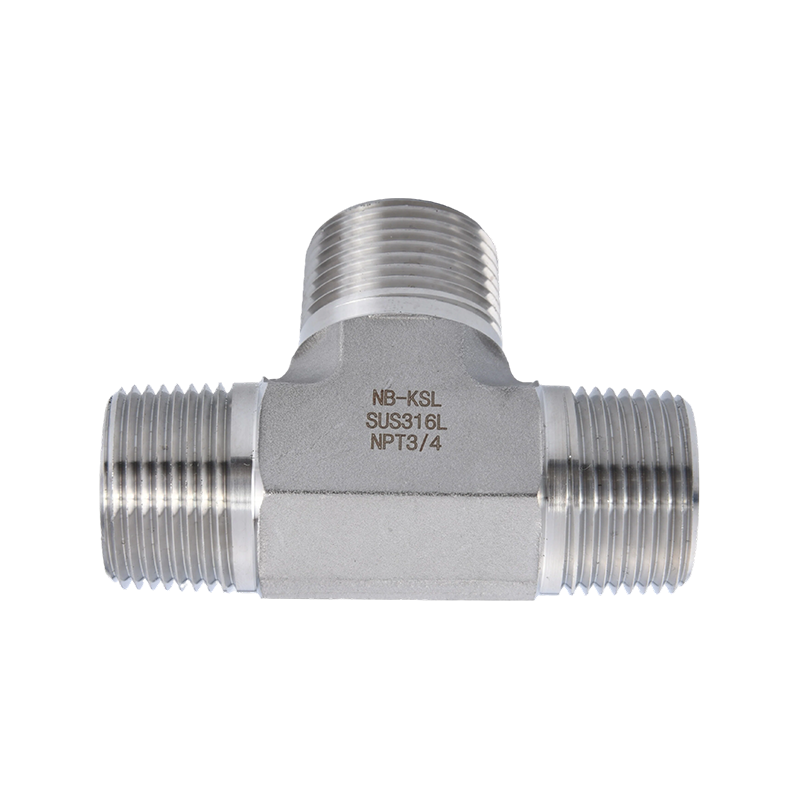

The 316L stainless steel male-threaded tee is a T-shaped fitting designed for flow splitting or merging, featuring male threads on all three ports and manufactured via integral forging from ultra-low carbon 316L stainless steel. It is suitable for splitting a single pipeline into two branches or merging two flow streams; the three male-threaded ports screw directly into female-threaded equipment connections, valves, instruments, and other components, eliminating the need for extra adapters and simplifying piping layouts. Thread options include NPT, BSP, G, and M standards; the threaded connections require no welding and are compatible with pipelines conveying industrial media such as gases and liquids.

  • Description
  • Contact Us

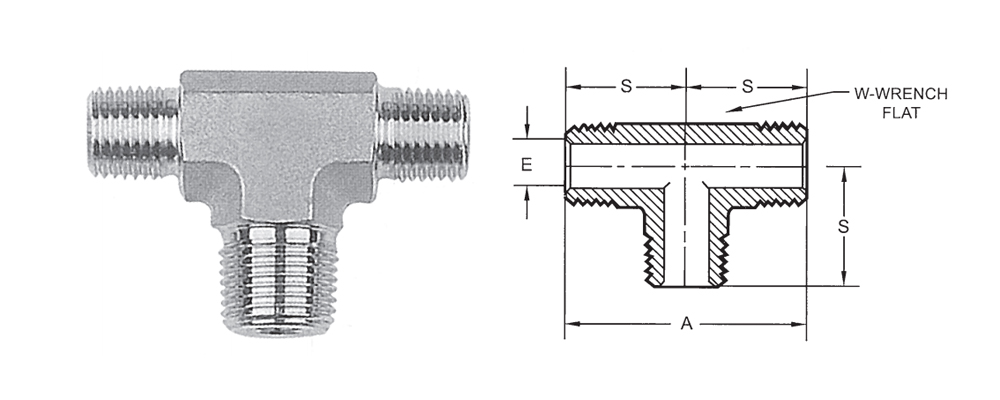

P PT/NPT SIZE

CATALOG NUMBER

A

E

S

  W

1/8

MT-01

40

4.8

20

  12.7

1/4

MT-02

48

6

24

  16

3/8

MT-03

52

9.5

26

  17.5

1/2

MT-04

66

11.9

33

  23

3/4

MT-06

73.6

15.7

36.8

  28

1/1

MT-08

90

21.5

45

  34.5

All dimensions are in Millimeters. Dimensions for Reference Only, Subject to Change.
