Internal and external threaded bends

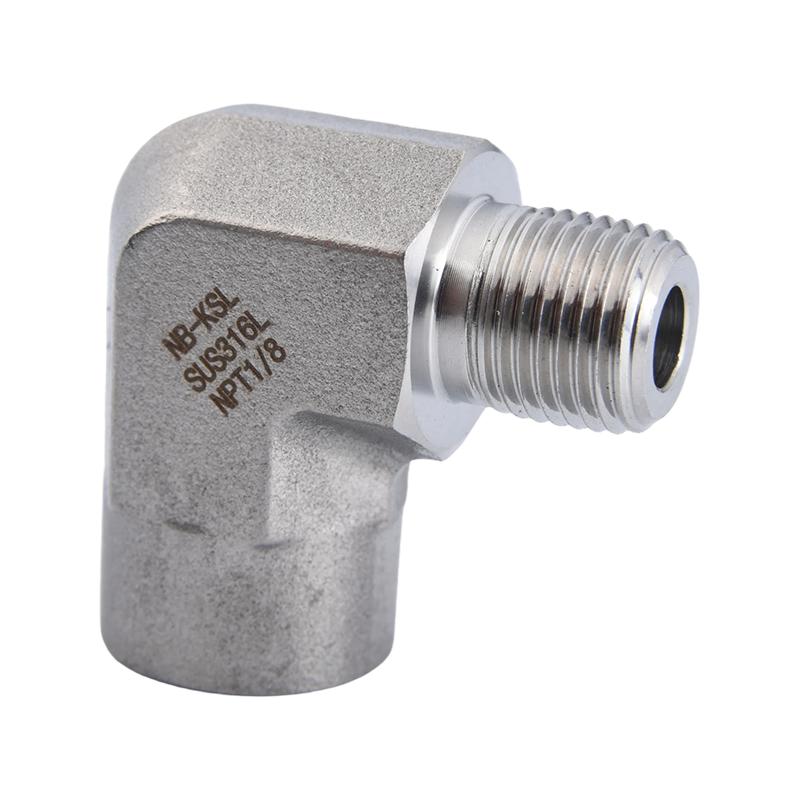

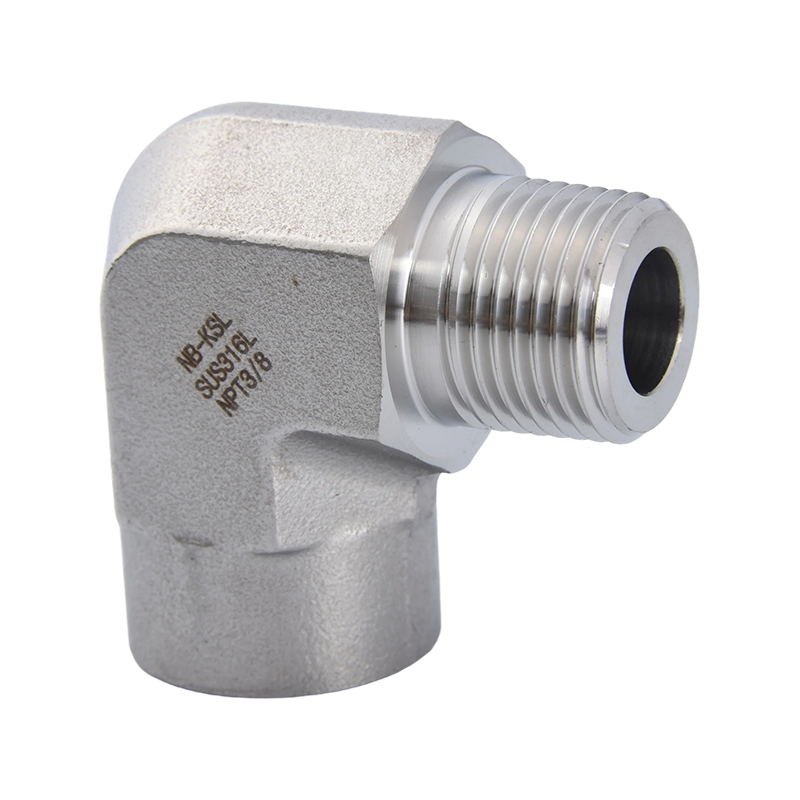

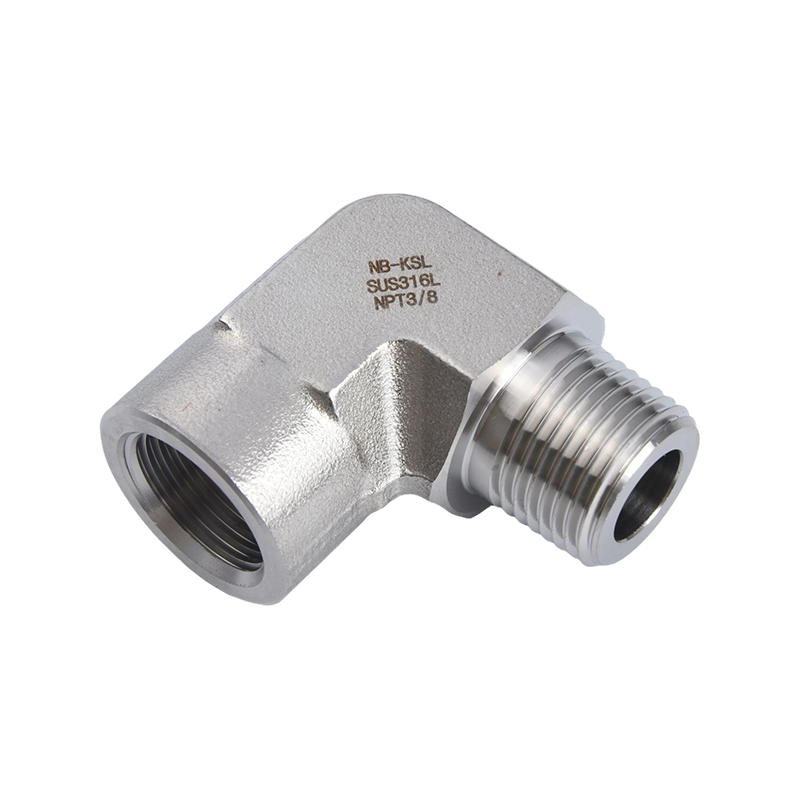

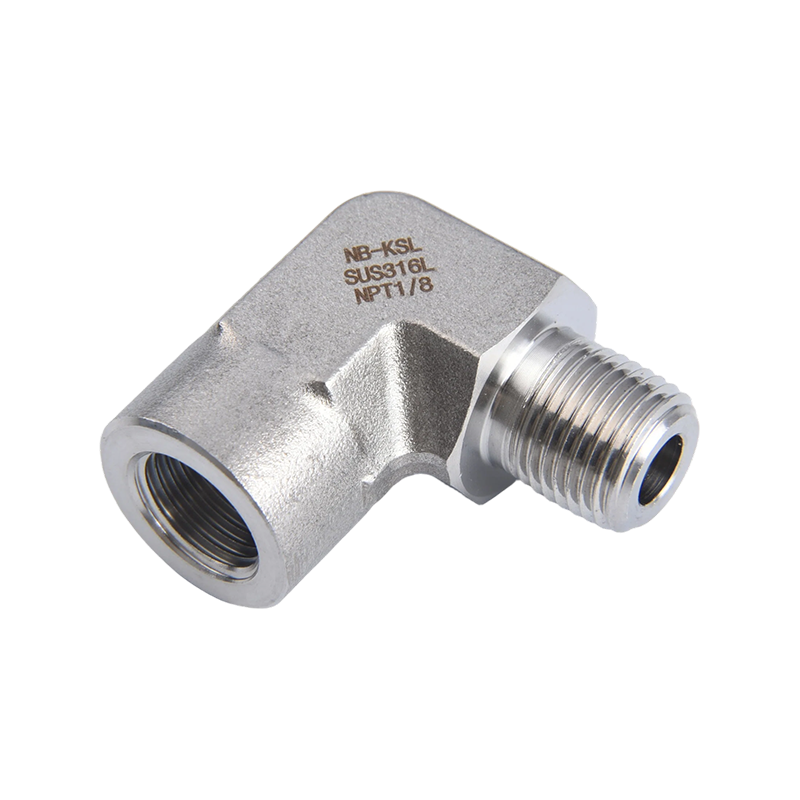

The 316L male-female elbow—also known as a male-female threaded elbow—is a 90-degree pipe fitting featuring a female thread on one end and a male thread on the other; it is forged as a single piece from ultra-low carbon 316L stainless steel. This fitting simultaneously enables a 90-degree change in piping direction and a transition between male and female threads, allowing male-threaded piping to connect to female-threaded equipment ports. It resolves thread mismatch issues on-site without requiring additional adapters, thereby saving installation space. It is commonly used in instrumentation, equipment outlets, and confined piping areas. Thread options include NPT, BSP, G, and M (metric/imperial) standards; the direct threaded connection eliminates the need for welding and is suitable for systems transporting liquids, gases, or steam.

  • Description
  • Contact Us

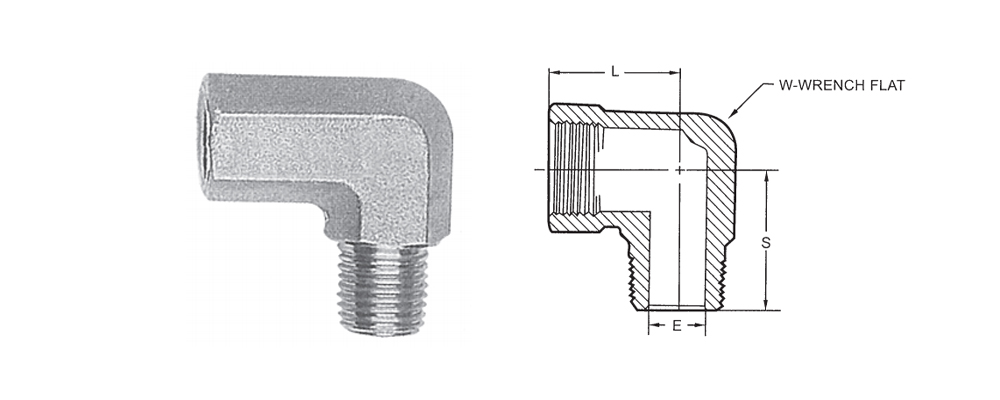

P MALE/FEMALE PT/NPT SIZE

CATALOG NUMBER

E

L

S

W

1/8

SE-01

4.8

20

21

15

1/4

SE-02

7.1

23

27

17.5

3/8

SE-03

9.5

27.7

29.7

23

1/2

SE-04

11.9

33

39

28

3/4

SE-06

15.9

36.8

41.7

34.5

1/1

SE-08

21.5

36.8

46.5

41

All Dimensions Are in Millimeters. Dimensions for Reference Only, Subject to Change.
