Internal dental tee

Home / Products / Stainless Steel Tube Fittings / Tube Fittings / Internal dental tee

Internal dental tee

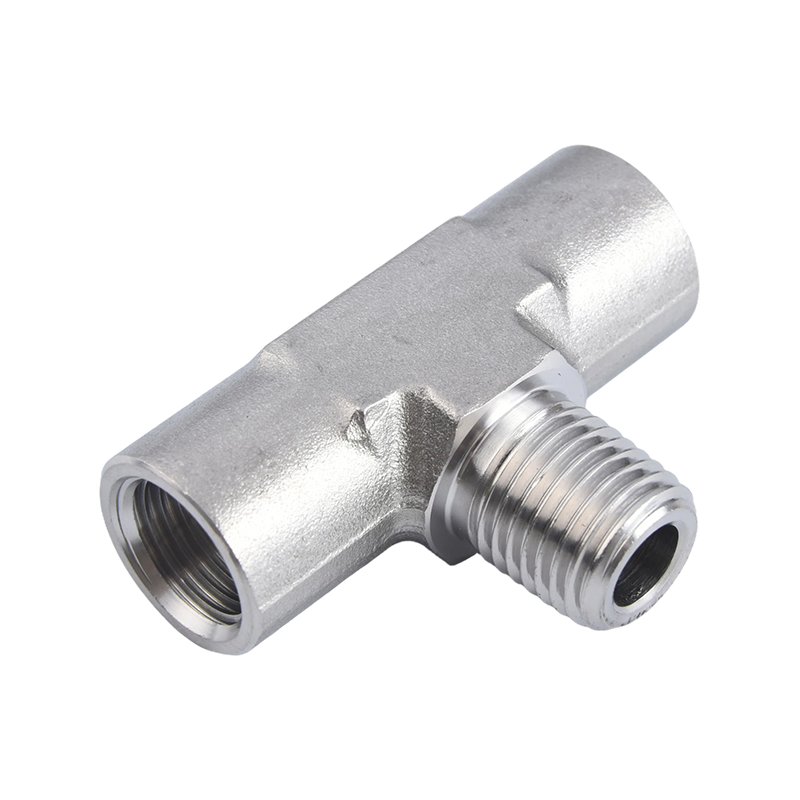

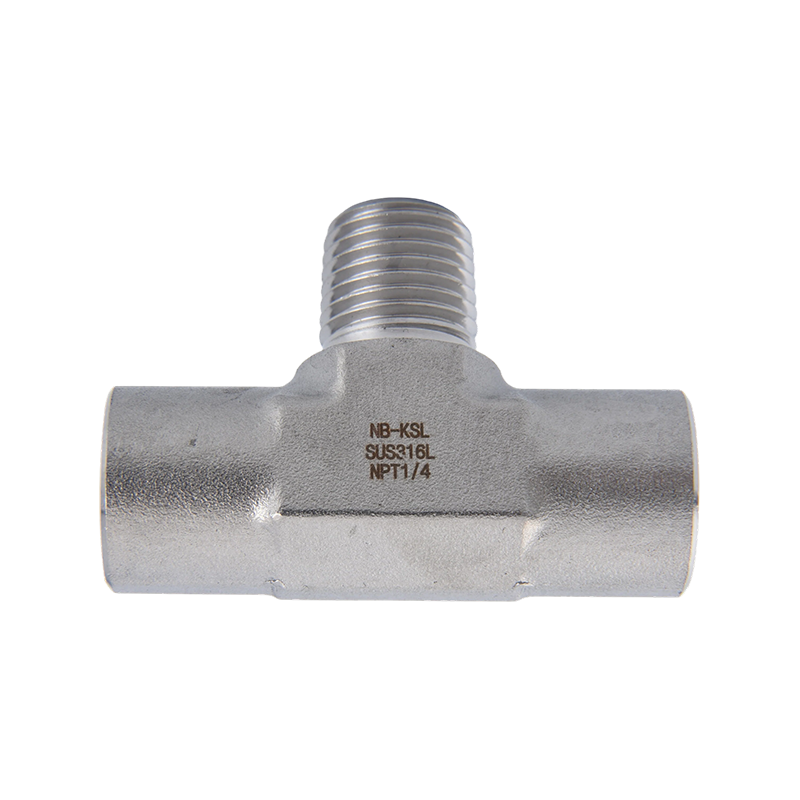

The 316L "two-female, one-male" tee fitting is designed for flow splitting or merging in piping systems. It features female threads at the left and right ends and a male thread at the central outlet, all precision-machined from a single piece of ultra-low-carbon 316L stainless steel. This fitting enables a single input stream to split into two, or two streams to merge into one; the central male-threaded port allows for direct connection to peripherals such as instruments, valves, and pressure sensors, eliminating the need for additional adapters. It is commonly used in applications involving instrument pressure tapping and process pipeline branching. Thread options include NPT, BSP, G, and M standards (covering both imperial and metric systems); the threaded connection requires no welding and is suitable for pipelines conveying gases or liquids.

Contact Us Contact Us
PREV：Internal and external threaded bends NEXT：Internal and external thread tee connector
  • Description
  • Contact Us

P FEMALE PT/NPT SIZE

CATALOG NUMBER

A

E

L

W

1/8

T-01

46

8.6

23

16

1/4

T-02

49.6

11

24.8

19

3/8

T-03

50

15

25

22

1/2

T-04

60

18.5

30

28

3/4

T-06

70

23

35

34.5
