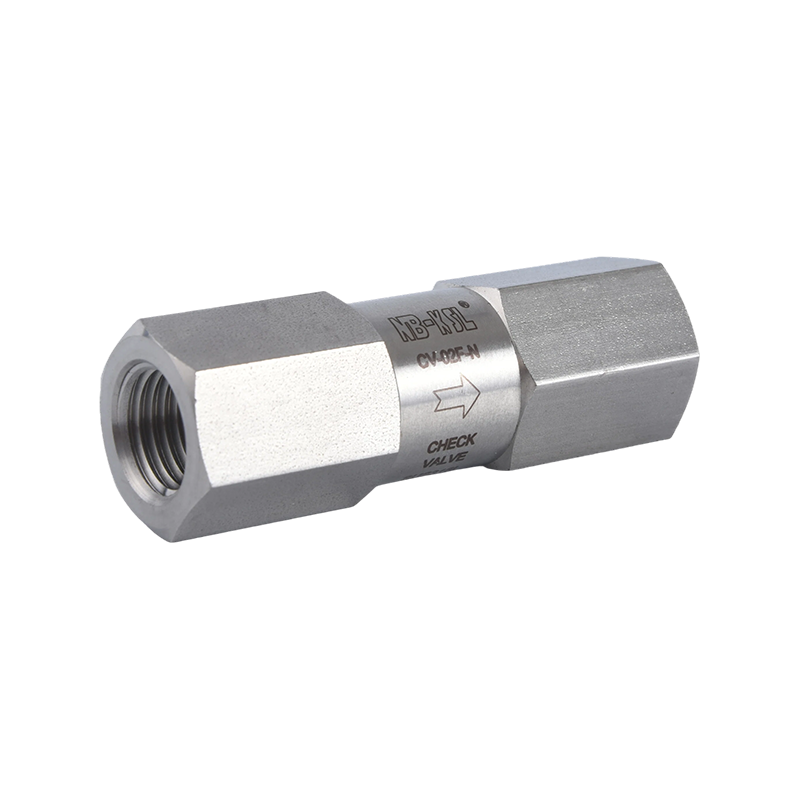

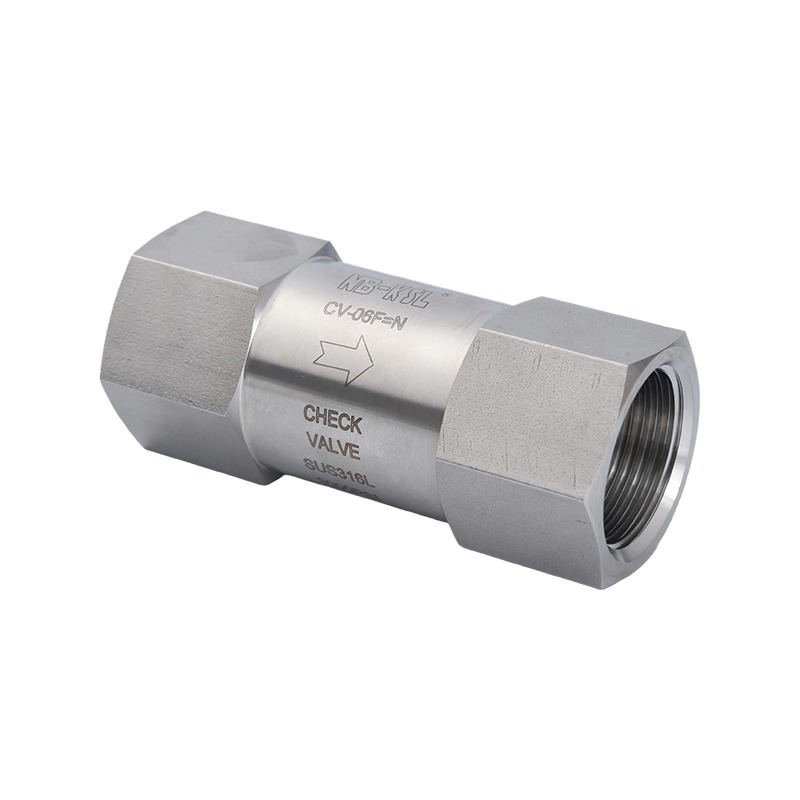

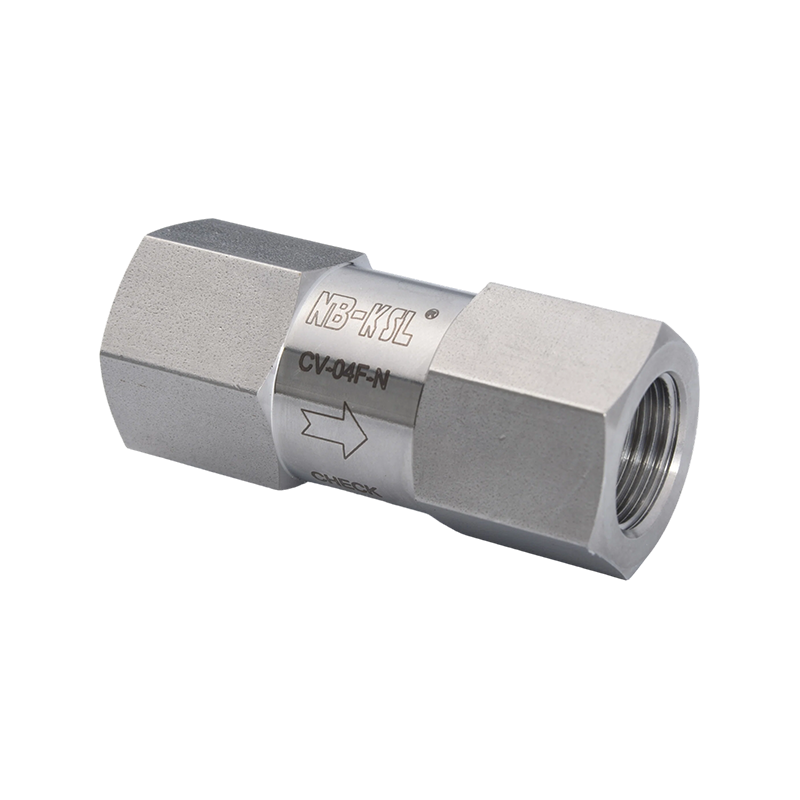

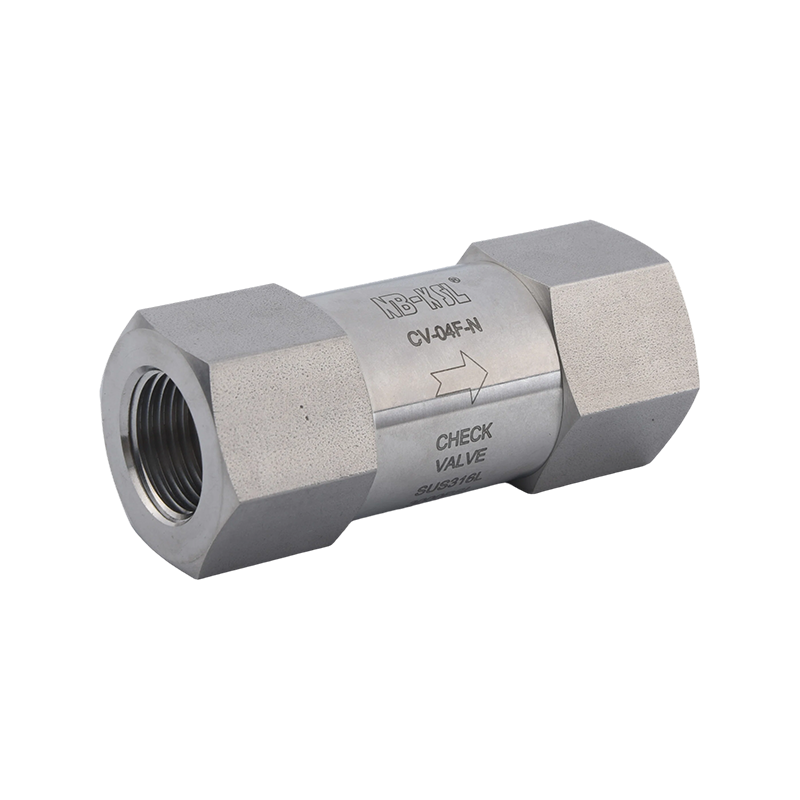

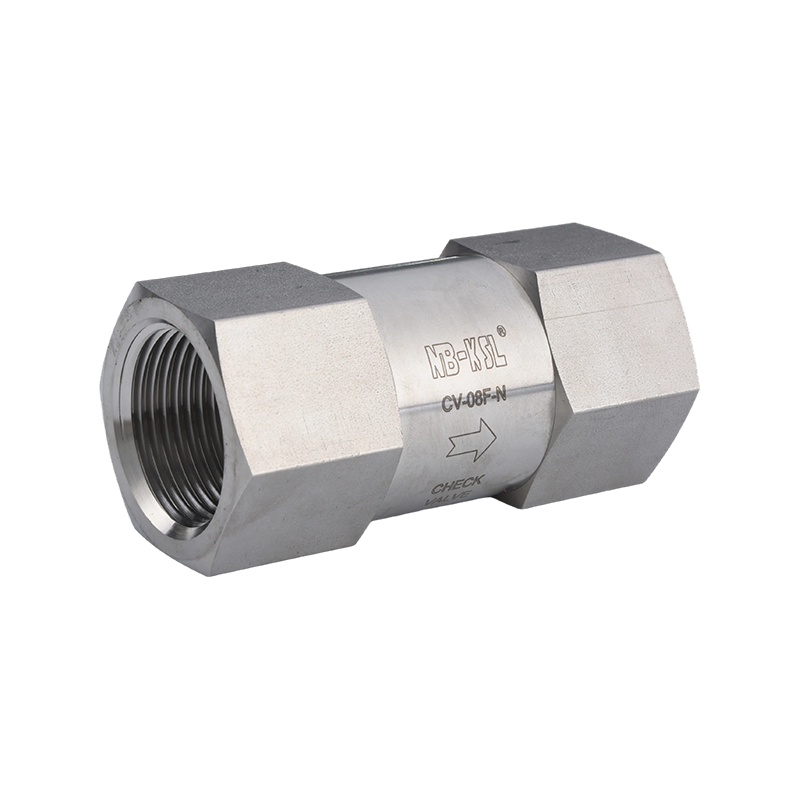

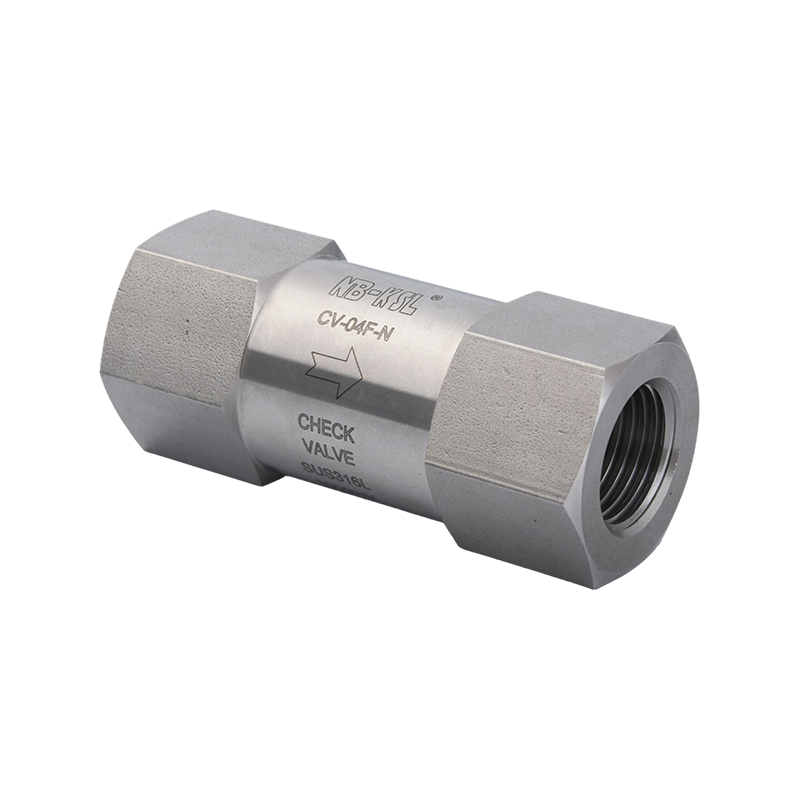

Internal thread check valve

The female-threaded straight-through check valve is a unidirectional flow component featuring female threads at both ends and a spring-loaded poppet (cone-seat) design. Machined from forged 316L stainless steel bar stock, it utilizes spring preload to seal against a conical seat, permitting flow in only one direction while automatically preventing backflow. Designed with standard female threads at both ends for direct inline installation between male-threaded pipe sections, this product differs from large-bore swing check valves used in general plumbing; it features an instrument-grade precision design suitable for both horizontal and vertical mounting. Independent of gravity, it protects pressure gauges, transmitters, pressure-reducing valves, and sampling circuits from reverse pressure surges, thereby preventing instrument damage or cross-contamination caused by backflow.

  • Description
  • Contact Us

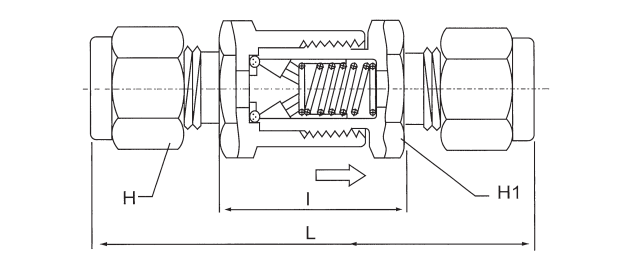

Internal thread

T Tongjing

L

1

H

H1

CV-01F

1/8

5

54.5

/

19

/

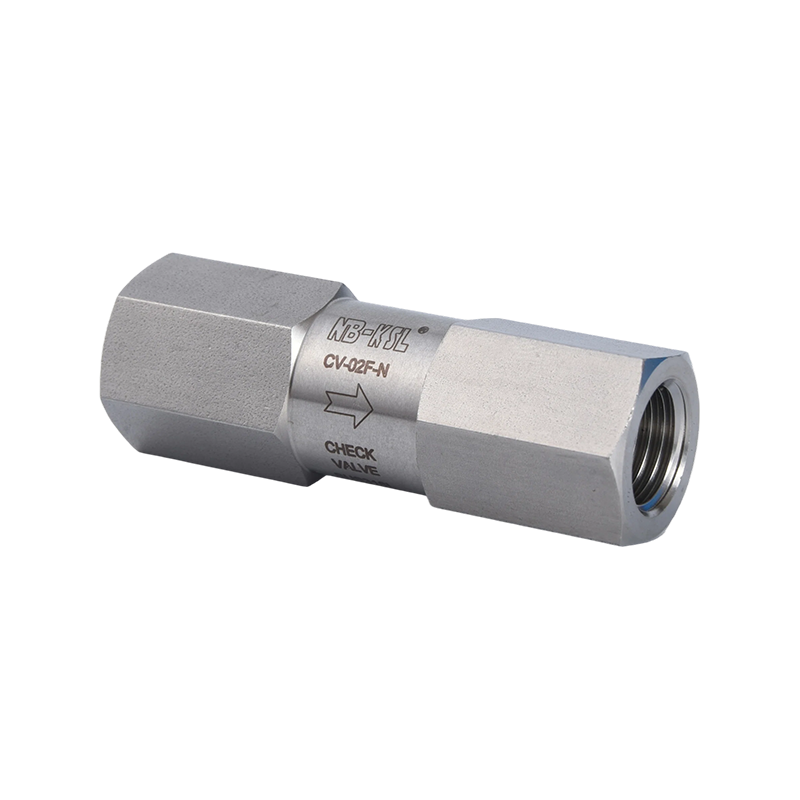

CV-02F

1/4

5

60.5

19

CV-03F

3/8

7.9

58.7

24

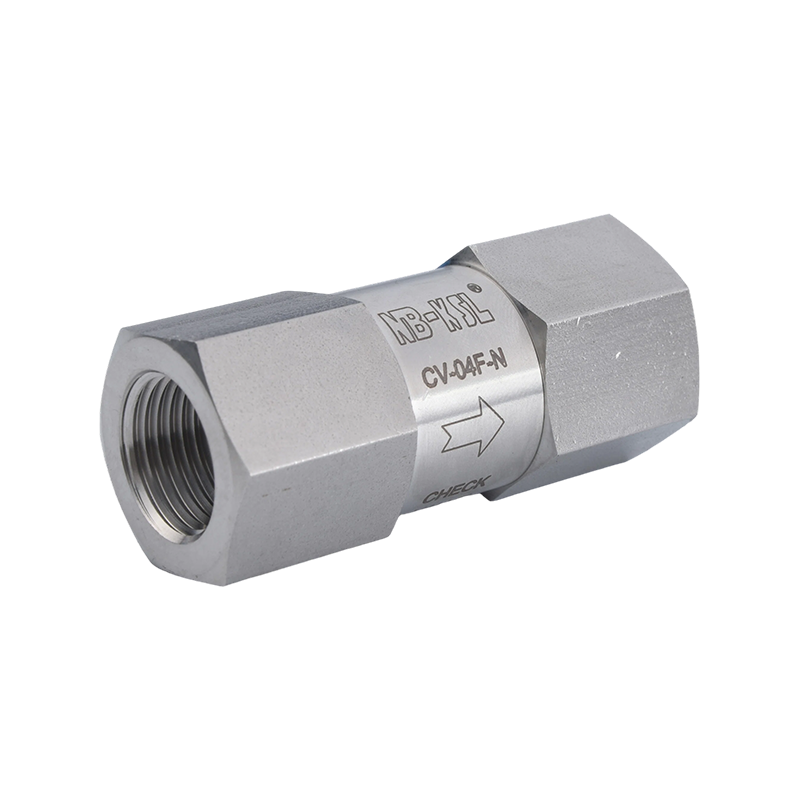

CV-04F

1/2

11.5

78.5

/

32

/

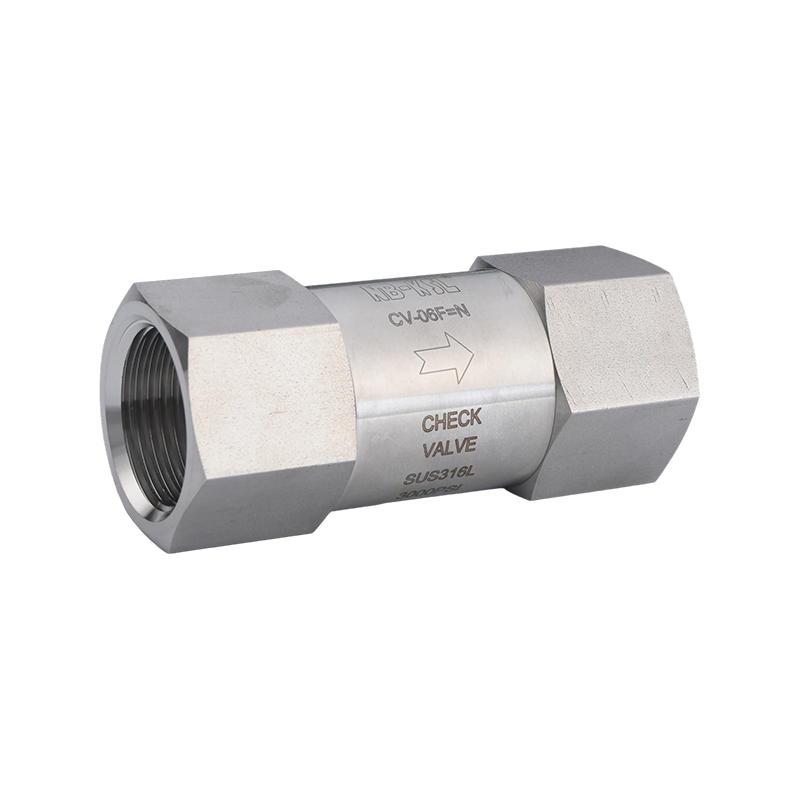

CV-06F

3/4

11.5

78.5

/

32

/

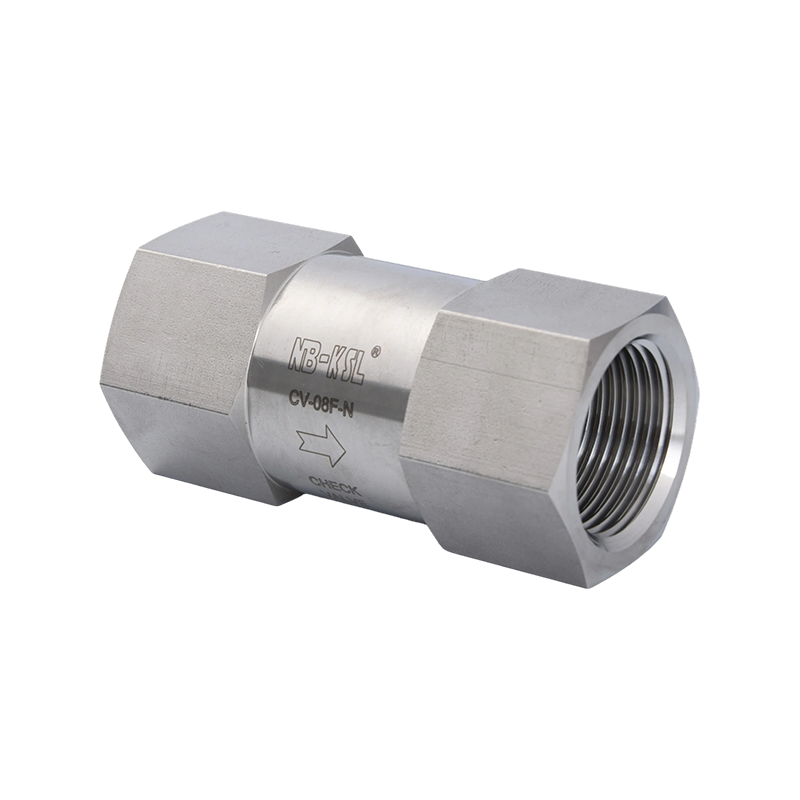

CV-08F

1"

18

89

/

41

/
