External thread needle valve

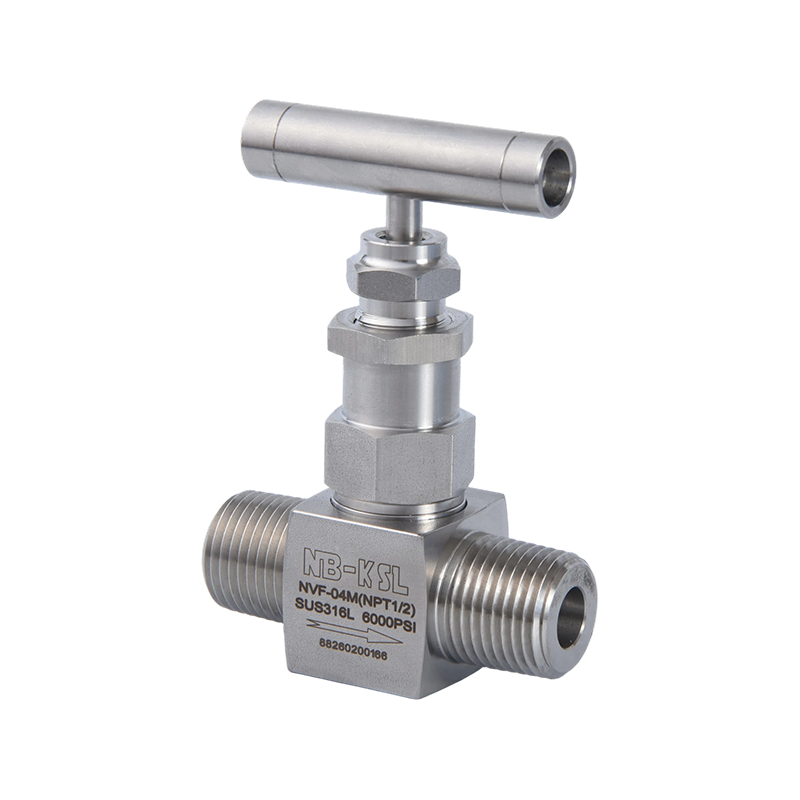

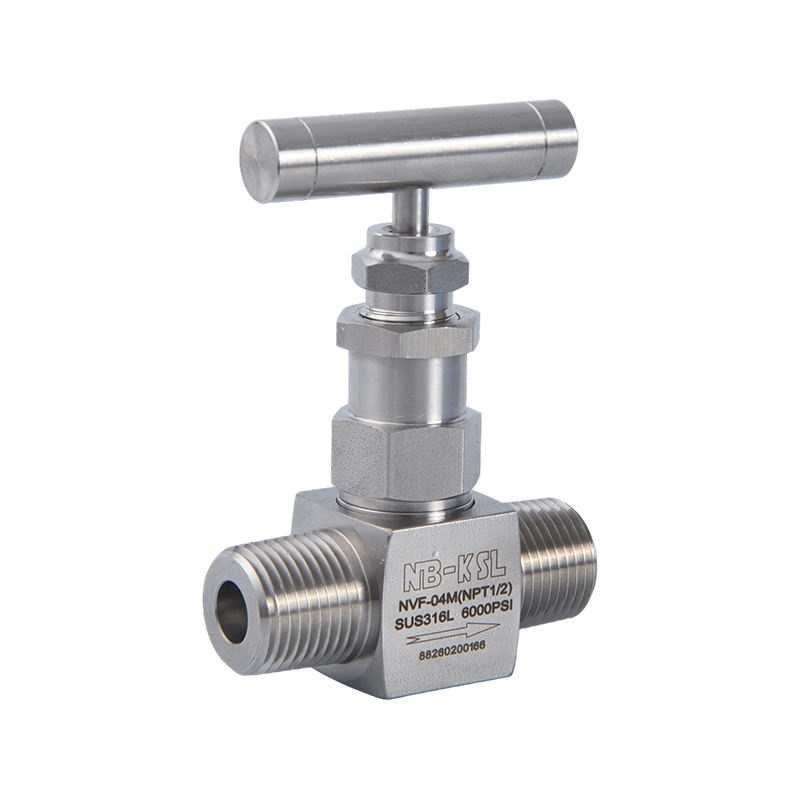

This male-threaded straight-through needle valve features male threads at both ends and a straight-through flow path; the valve body is forged from a single piece of 316L stainless steel, combining shut-off capabilities with precise, fine flow regulation. The male-threaded ends screw directly into valve blocks, equipment pressure-sensing ports, or pressure gauge bases, eliminating the need for intermediate adapters and thereby reducing assembly stress and the risk of leakage. A key distinguishing feature is the availability of various handle options; handle styles can be selected based on installation space, operating torque, and site conditions without replacing the valve body itself, offering a one-stop solution for diverse project requirements. It is widely used in applications such as instrument pressure sensing, equipment-end sampling, and high-pressure, low-flow threaded piping systems.

  • Description
  • Contact Us

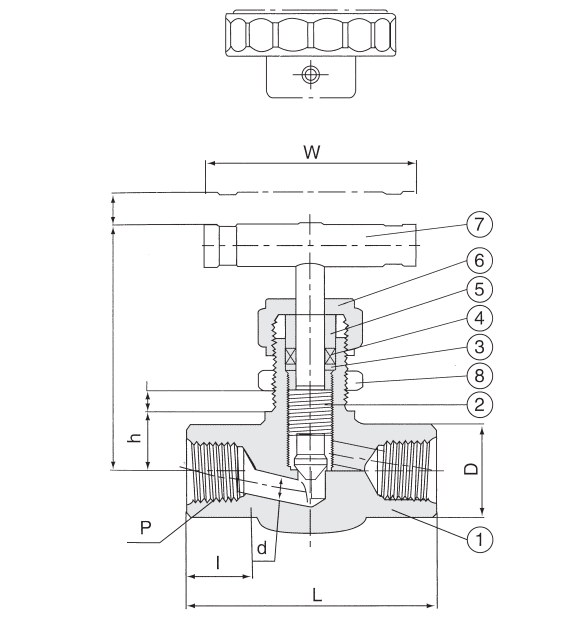

Order Model

NPT/PT

A

L

W

H

d

Panel Cutout

Traffic Channel

NV-03F

3/8

55

55

69

5

19

6.5

NV-01M

1/8

46

35

63

5

14

3.5

NV-02M

1/4

50

35

63

5

14

4.3

NV-03M

3/8

/

50

55

63

5

14

4.3
