Welding tees

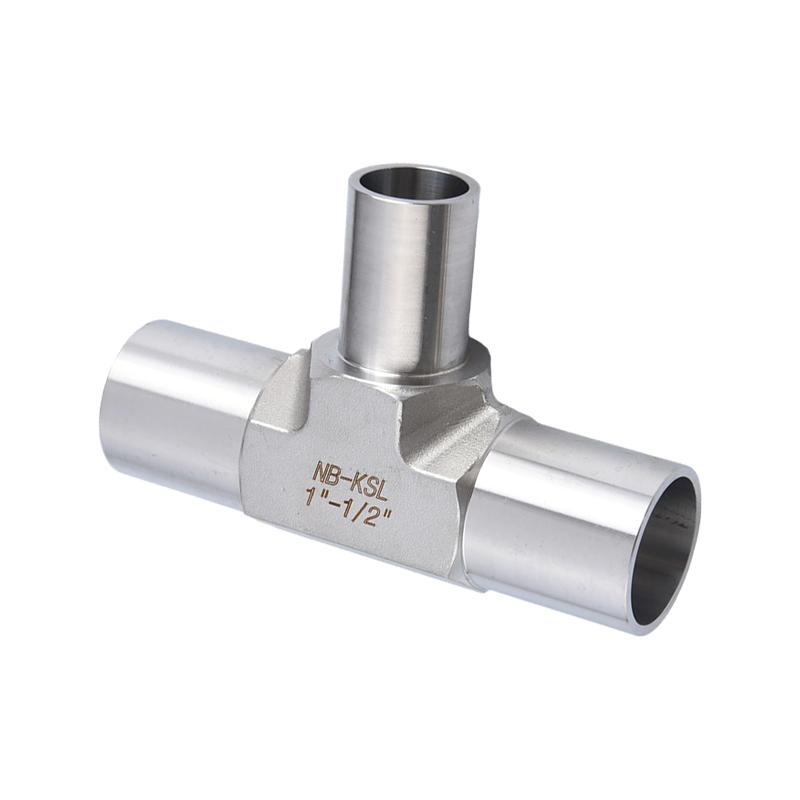

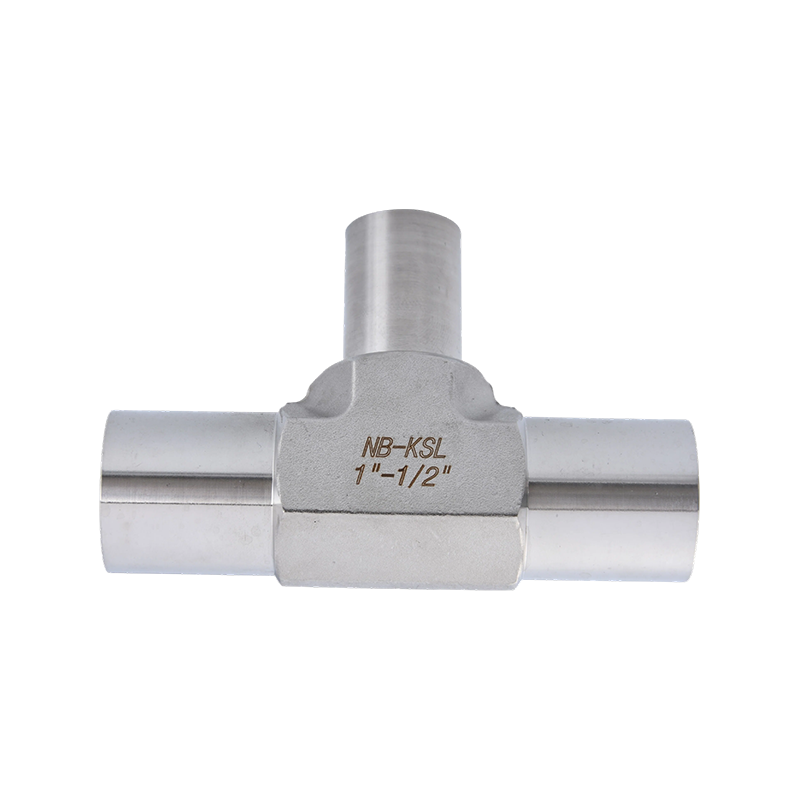

The 316L butt-weld reducing tee—also known as a reducing tee—features two main-run ports of equal diameter and a branch port of a different (smaller or larger) diameter. It is manufactured via integral hot-forming from seamless, ultra-low-carbon 316L stainless steel tubing, with all three ports prepared with standard weld bevels for butt-welding. The main run maintains a constant bore, while the branch facilitates a change in diameter for flow diversion or convergence. Commonly used to connect smaller-bore branch lines, instrumentation lines, or sampling lines to a main pipeline, it eliminates the need for separate reducers and reduces the number of weld joints; it is widely applied in process piping, high-purity fluid systems, and high-pressure piping networks.

  • Description
  • Contact Us

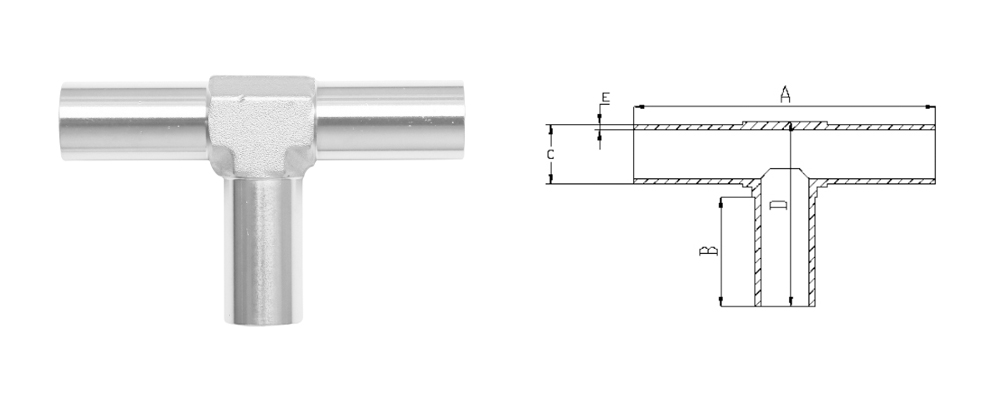

 CATALOG NUMBER

A

B

C

D

E

 HTW-02

1/4

60.5

23

6.35

36.4

0.89

 HTW-03

3/8

60.5

23

9.52

36.4

0.89

 HTW-04

1/2

64

23.5

12.7

39.5

1.24

 HTW-06

3/4

75

23

19.05

49.5

1.65

 HTW-08

1"

90

26

25.4

59

1.65
