Welded elbow

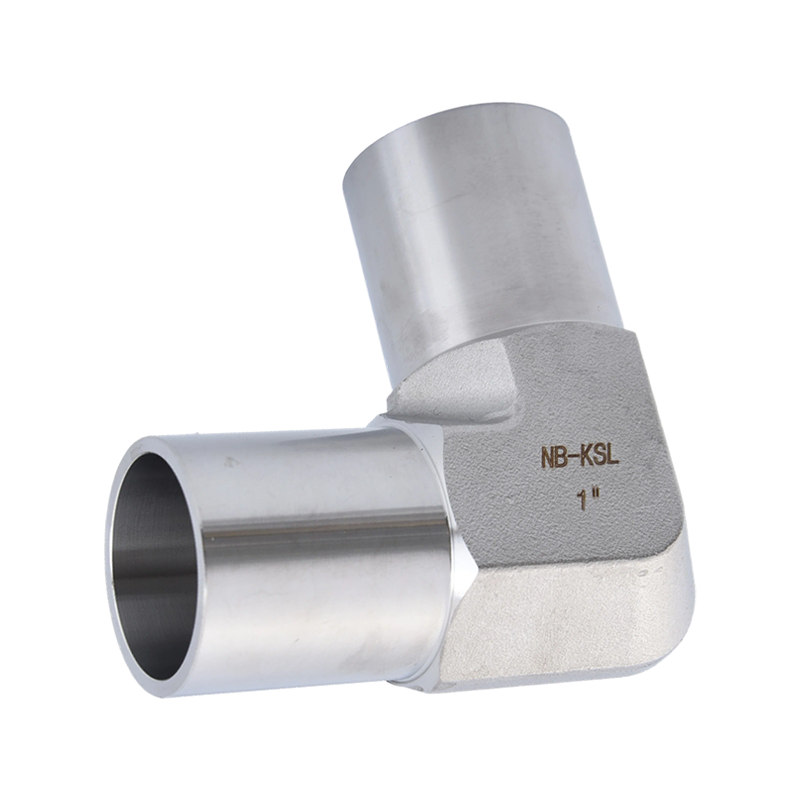

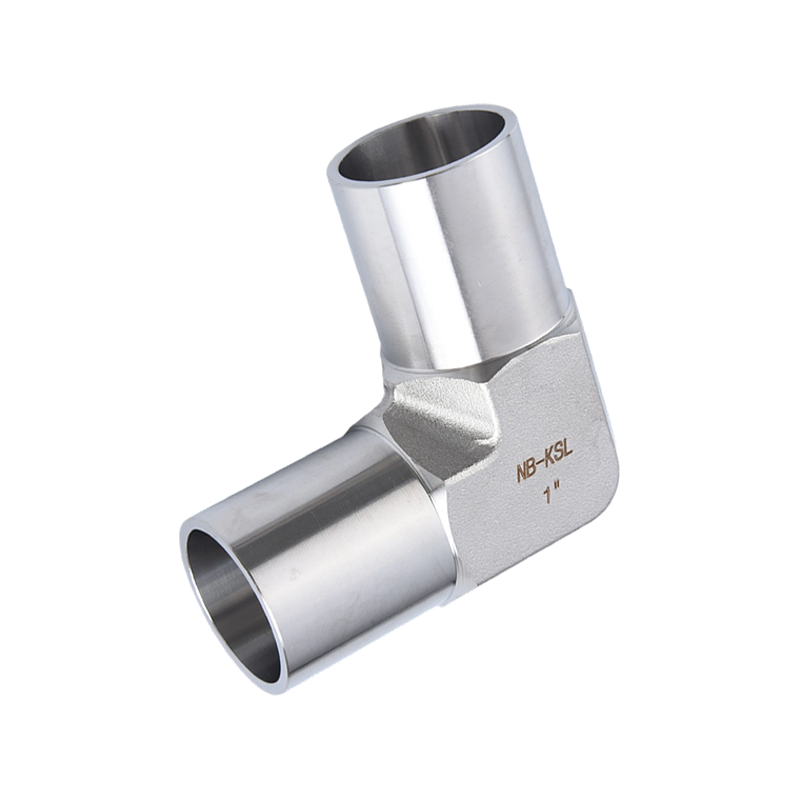

The 316L equal-diameter welded elbow—also known as a butt-weld 90° elbow—features identical diameters at both ends and is hot-formed from seamless, ultra-low-carbon 316L stainless steel tubing. Standard welding bevels are machined at both ends, enabling a 90° change in pipeline direction via butt welding. The fitting offers smooth internal and external flow paths with no dead zones for media accumulation, as well as high connection strength; it is suitable for high-pressure, vacuum, and high-purity fluid process pipelines, serving as a fundamental directional component in industrial welded piping systems.

  • Description
  • Contact Us

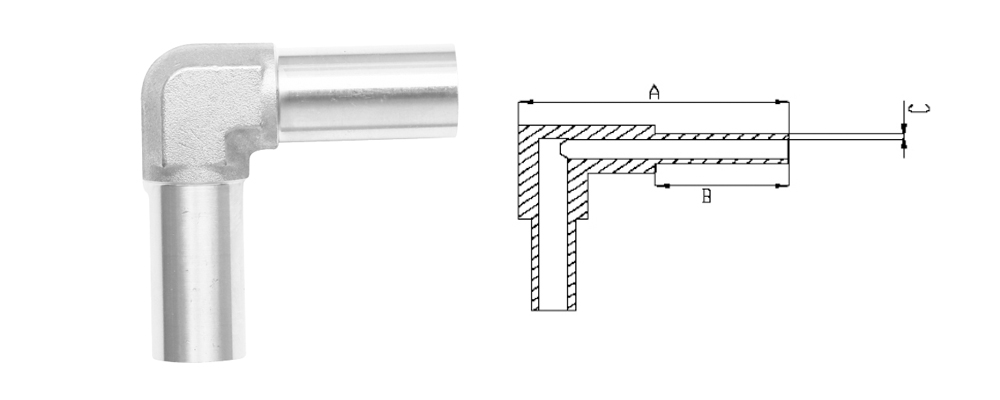

CATALOG NUMBER

A

B

C

HEW-02-0

535

20

1

HEW-03-0

35

20

1

HEW-04-0

42

24

1.24

HEW-06-0

51

24

1.65

HEW-08-0

59

26

1.65

All Dimensions Are in Millimeters. Dimensions for Reference Only, Subject to Change.
