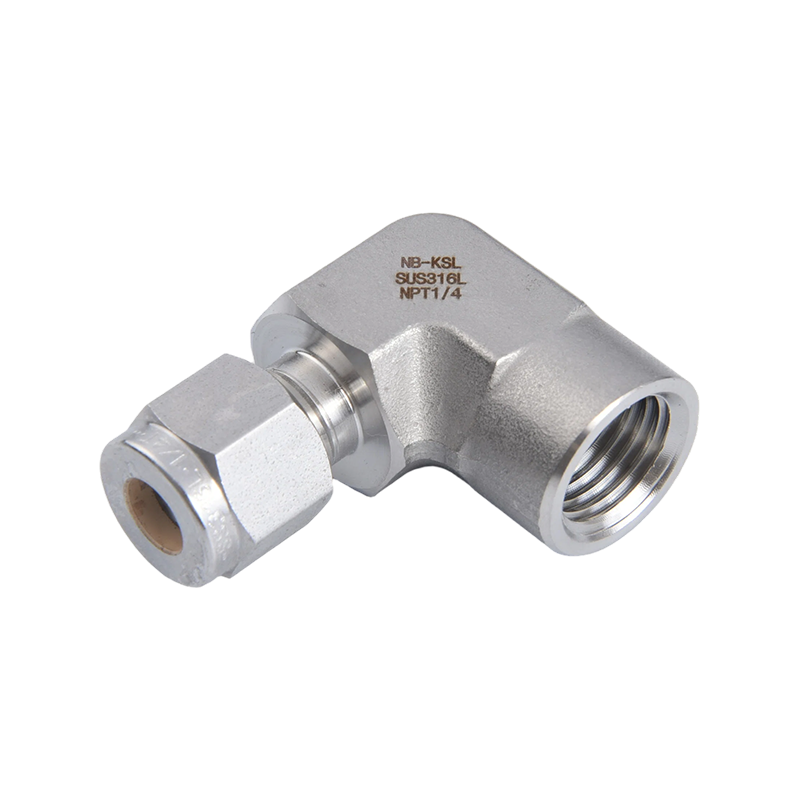

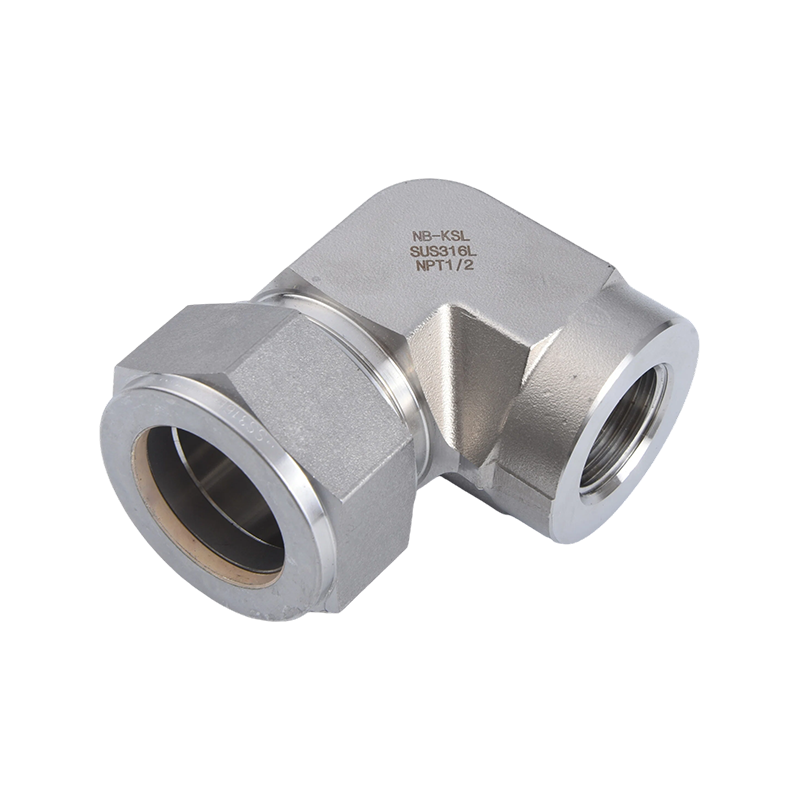

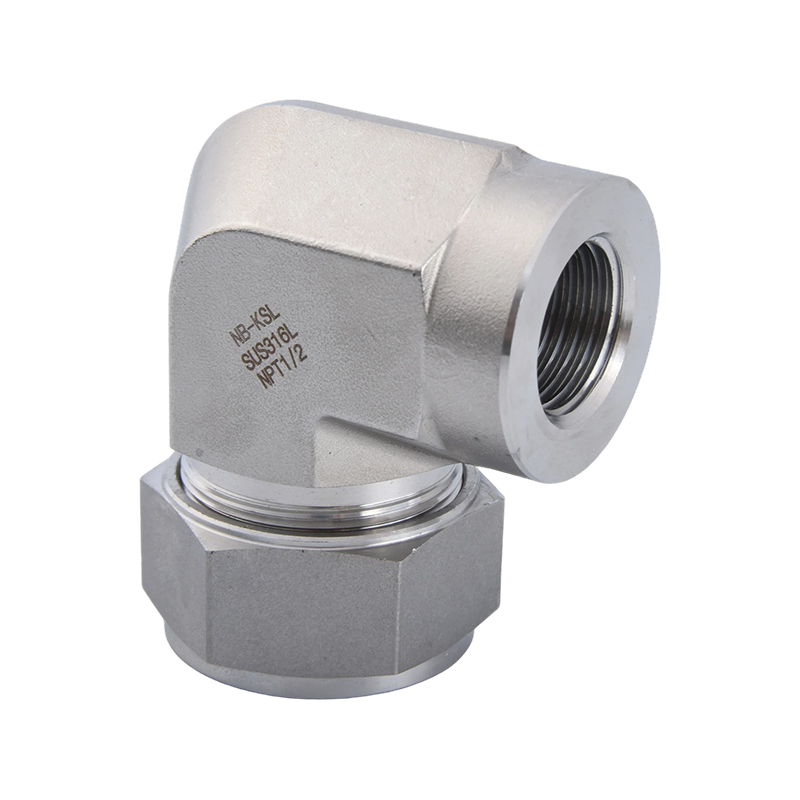

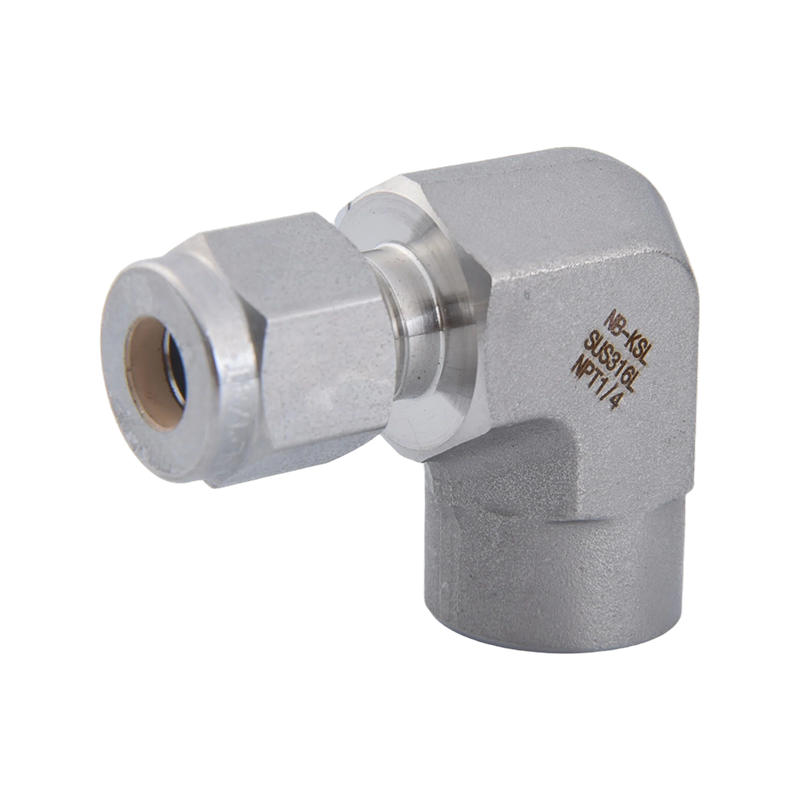

Compression fitting internal thread elbow

Home / Products / Stainless Steel Tube Fittings / Tube To Female Pipe / Compression fitting internal thread elbow

Compression fitting internal thread elbow

This product is made of high-quality 316L austenitic stainless steel and incorporates an advanced ferrule-type mechanical seal design, enabling it to maintain excellent sealing performance and mechanical stability even in high-pressure, high-temperature, and highly corrosive environments. Compared to ordinary 304 stainless steel, 316L stainless steel has a higher corrosion resistance rating, especially maintaining stable performance in acidic, alkaline, and saline environments over long periods. It features a precision-machined one-piece main body structure, combined with a front ferrule, a rear ferrule, and a lock nut to form a complete connection system. The connector body is machined with high-precision CNC to create a smooth internal flow channel; the front ferrule primarily provides the sealing function, forming a tight metal-to-metal contact with the pipe surface through axial compression during installation, thus achieving a highly reliable seal; the rear ferrule mainly provides mechanical support and locking, firmly securing the pipe and improving the vibration resistance of the connection.

Contact Us Contact Us
PREV：316L Stainless Steel Compression fitting internal thread through plate connector NEXT：316L Stainless Steel Compression fitting internal thread side tee
  • Description
  • Contact Us

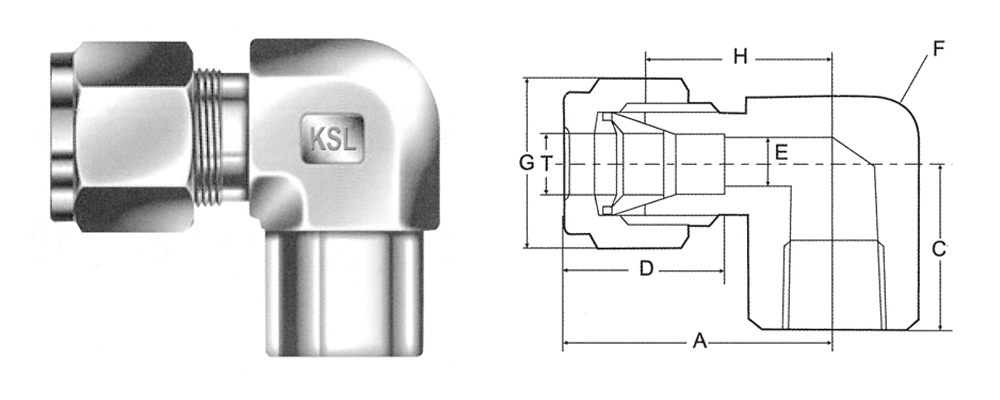

FEMALE ELBOW
