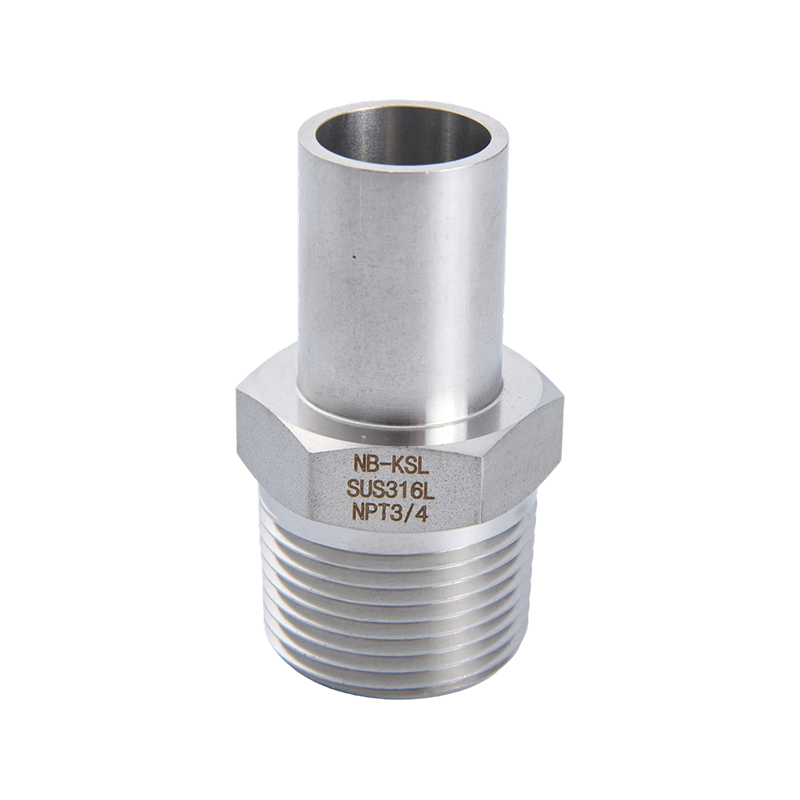

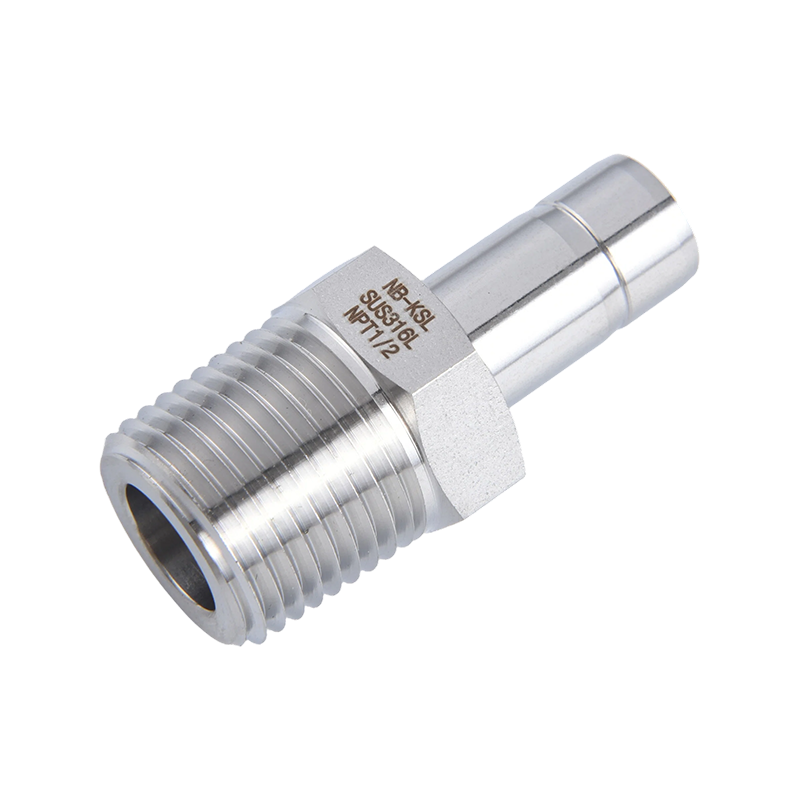

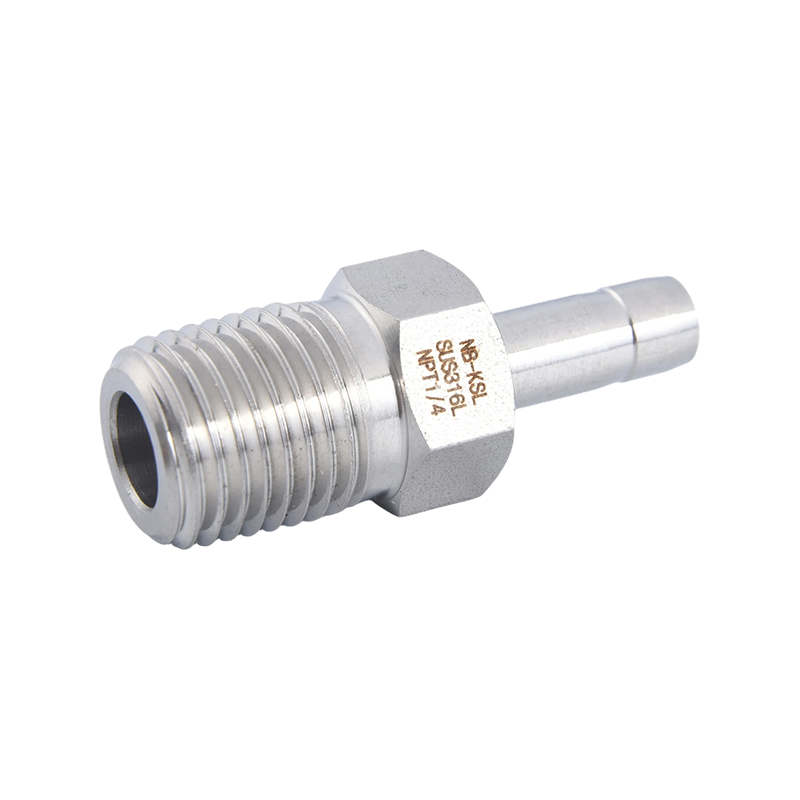

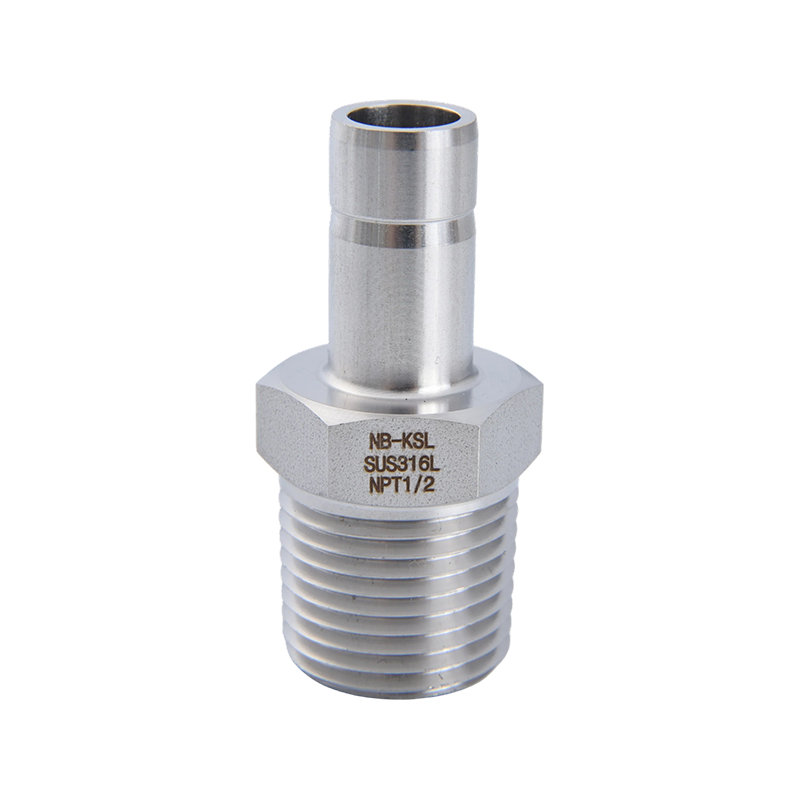

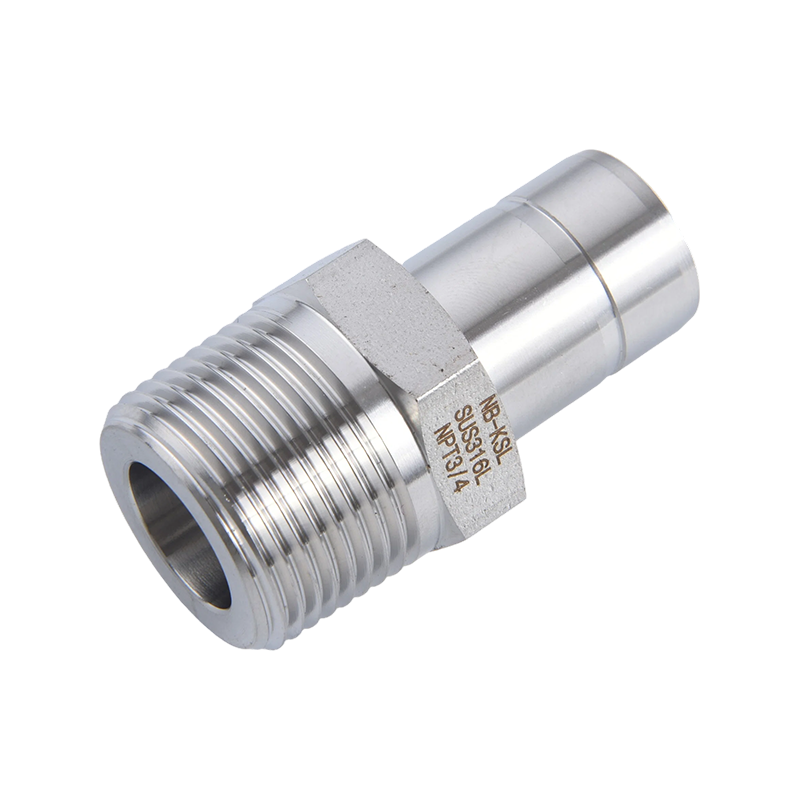

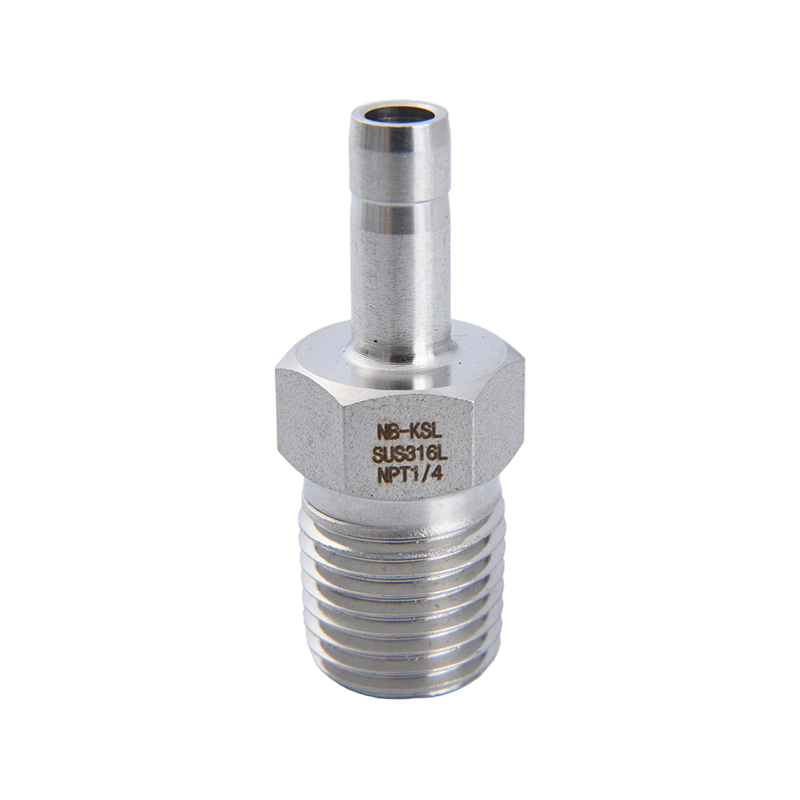

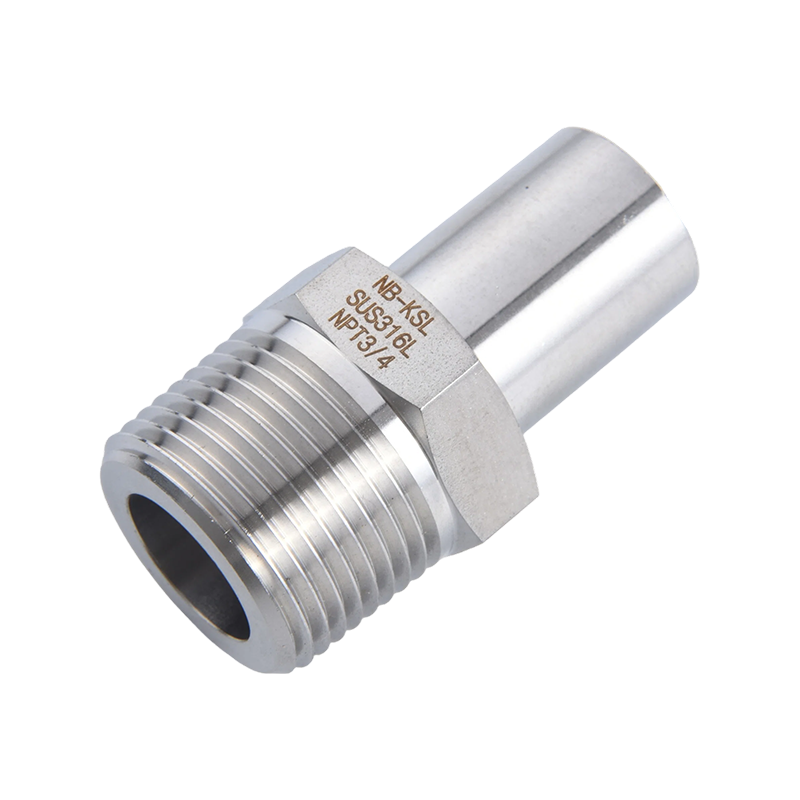

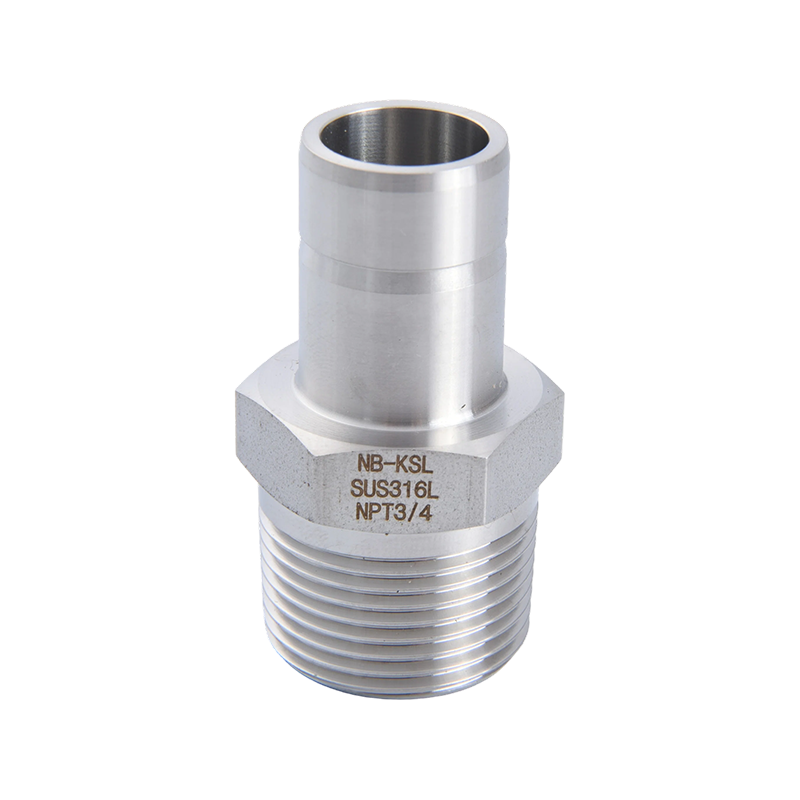

316L Stainless Steel Pipe to Pipe Thread Adapter

The 316L Stainless Steel Pipe to Pipe Thread Adapter is a high-performance pipe connector widely used in chemical, pharmaceutical, food processing, oil, natural gas, seawater treatment, and high-temperature, highly corrosive environments. It securely connects two pipes of different or the same diameter via threads, enabling the safe transport of fluids or gases. In chemical plants and refineries, the 316L Pipe Thread Adapter can be used to transport acid and alkali solutions, solvents, and high-temperature corrosive media, ensuring the long-term stable operation of the pipeline system. In the food processing and pharmaceutical industries, where hygiene standards are extremely high, the 316L material does not release harmful substances, and its smooth surface reduces microbial growth. It is also suitable for high-pressure gas and liquefied gas transportation: the threaded connection is reliable, leak-proof, and can withstand pressure fluctuations and temperature changes.

  • Description
  • Contact Us

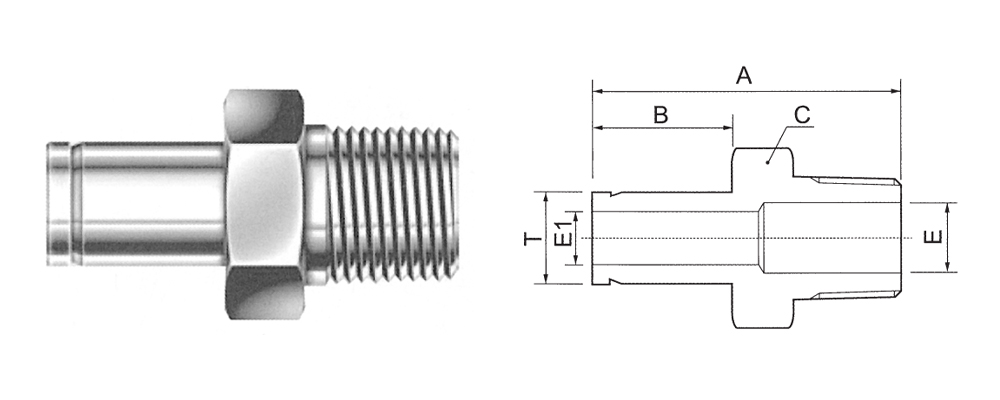

MALE  ADAPTER/Tube

Connects fractional NB-KSL port to female PT (NPT) thread

CATALOG NUMBER

T TUBE O.D.

PT-NPT FEMALE PIPE SIZE

A

B

C

E

E1

TAM-6-1

1/8

32.8

15.7

12

4.6

4.6

TAM-6-2

1/4

38.1

15.7

14

7.1

4.6

TAM-6-4

1/2

43.4

15.7

22

11.9

4.6

TAM-8-2

1/4

39.1

16.5

14

6.3

6.3

TAM-10-2

10

1/4

39.9

17.6

14

7.1

7.1

TAM-10-3

10

3/8

40.6

17.6

17

9.5

7.1

TAM-10-4

10

1/2

43.4

17.6

22

11.9

7.1

TAM-12-2

12

1/4

44.5

23.2

14

7.1

9.5

TAM-12-3

12

3/8

43.7

23.2

17

9.5

9.5

TAM-12-4

12

1/2

50.5

23.2

22

11.9

9.5

TAM-14-4

14

1/2

50.5

24.7

22

11

11

TAM-16-4

16

1/2

50.5

24.7

22

11.9

11.9

TAM-18-4

18

1/2

52.3

24.7

22

11.9

14

TAM-18-6

18

3/4

52.3

24.7

27

14

14

TAM-25-4

25

1/2

57.9

30.7

27

11.9

19.6

TAM-25-6

25

3/4

57.9

30.7

27

15

19.6

TAM-25-8

25

1"

65.1

30.7

35

19.6

19.6

All dimensions are in mulineters sonless otherwise specified, only for neference saubject to change.
