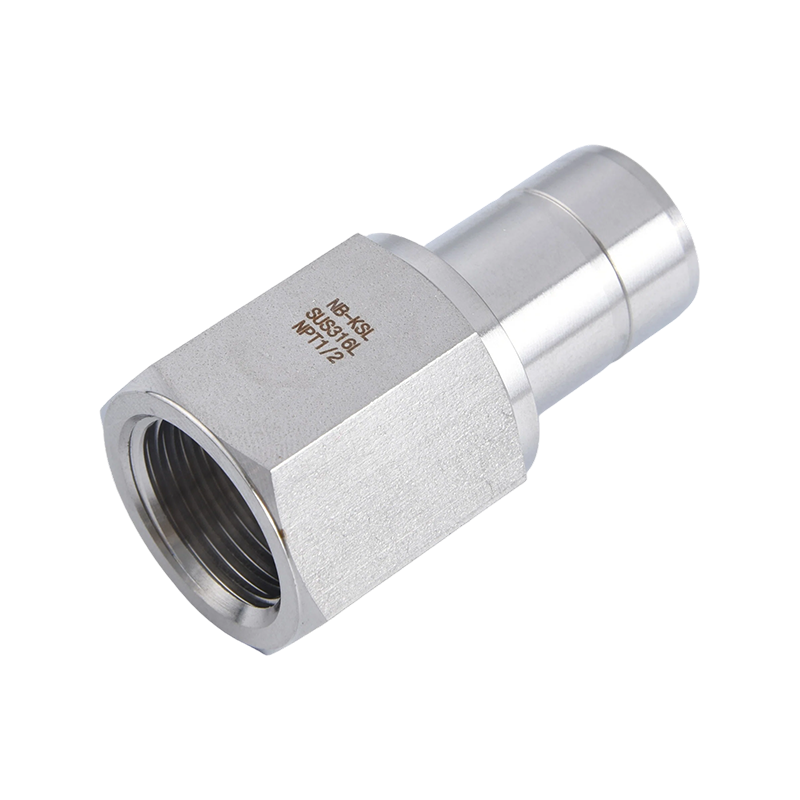

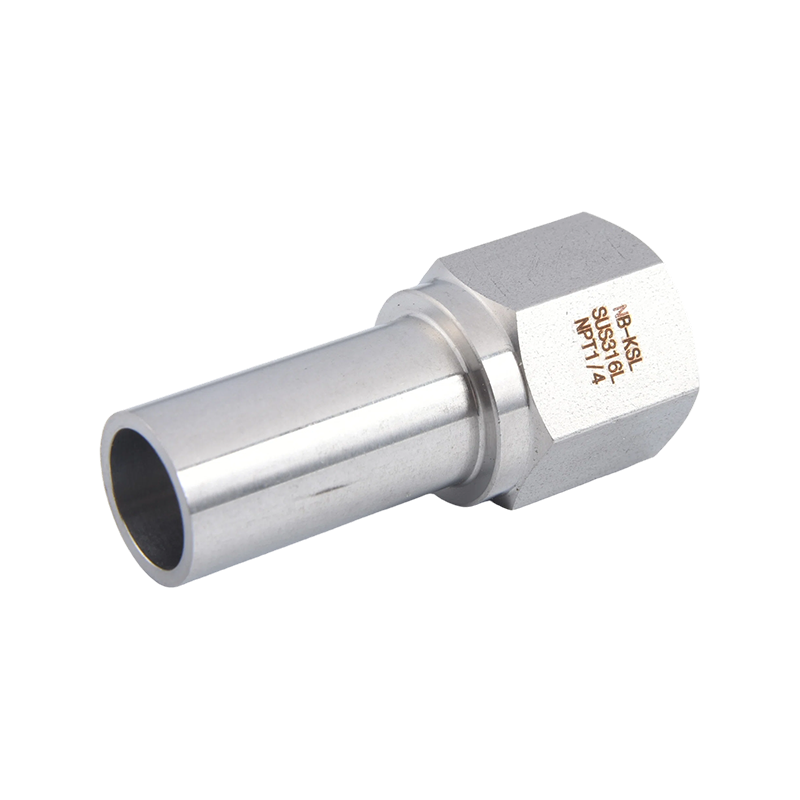

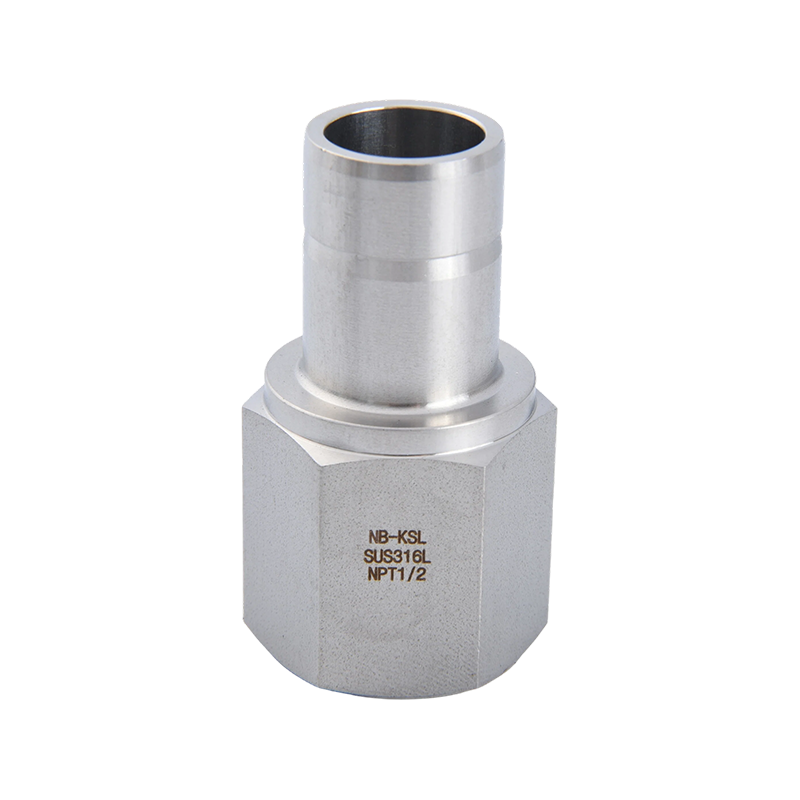

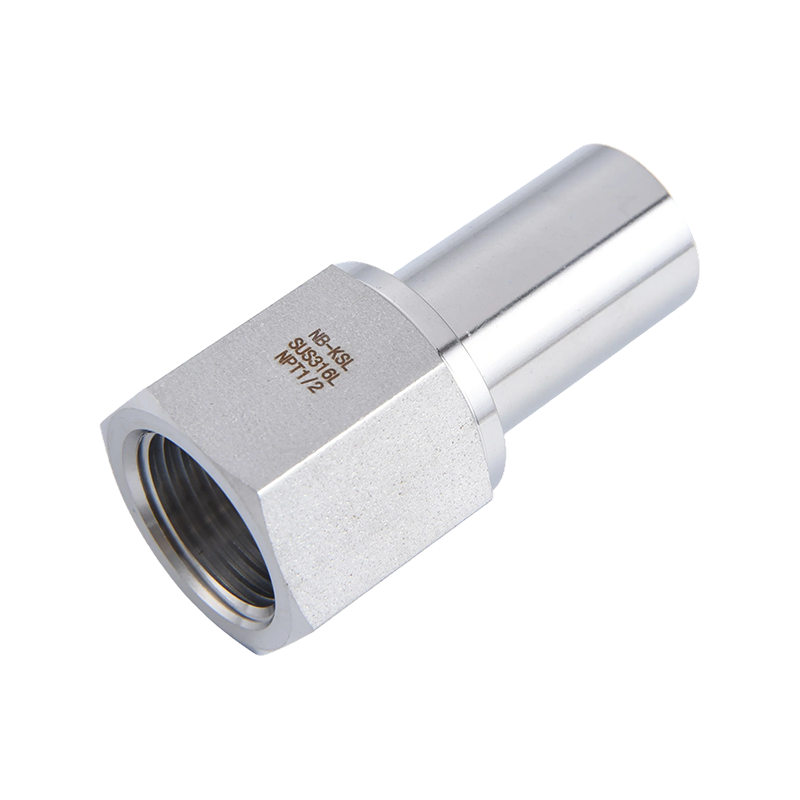

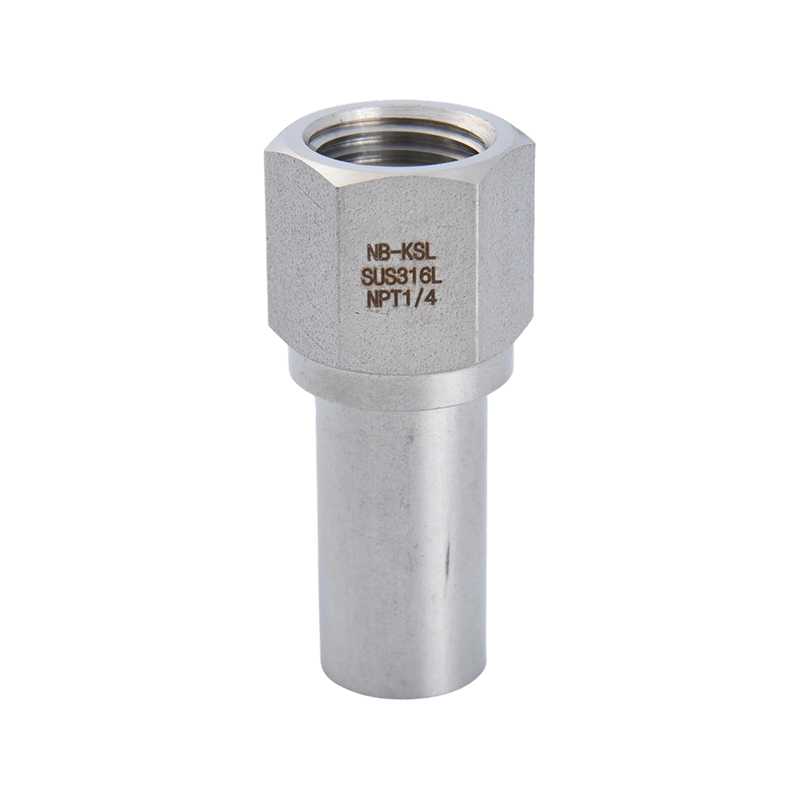

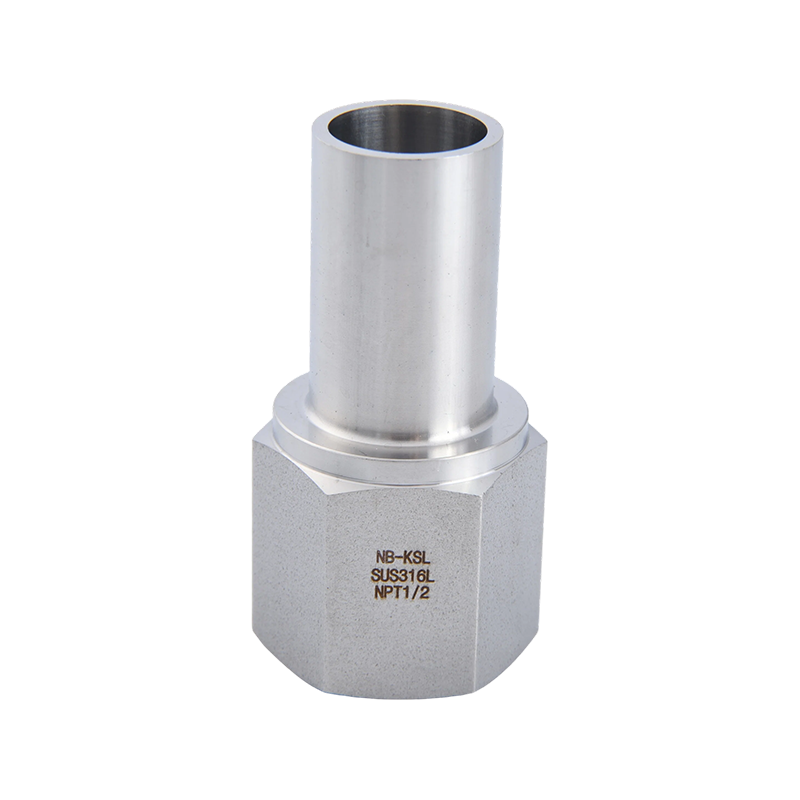

316L Stainless Steel Pipe to Pipe Internal Thread Adapter

The 316L Stainless Steel Pipe to Pipe Internal Thread Adapter is a transitional fitting for connecting piping systems. Its main structure is designed to connect two pipe or equipment ports. The core feature of this product lies in its composite connection method: one end (or both ends) is designed with a butt-weld bevel for permanent welding to the pipe; while the inside is machined with standard internal threads for connecting valves, instruments, fittings, or other components with external threads. The internal flow channel design prioritizes a smooth transition. The inner wall is finely polished, with a surface roughness typically controlled to Ra ≤ 0.8μm or even lower (Sanitary grade can reach Ra ≤ 0.5μm). This not only reduces the fluid resistance coefficient but, more importantly, prevents media retention and deposition at rough surfaces.

  • Description
  • Contact Us

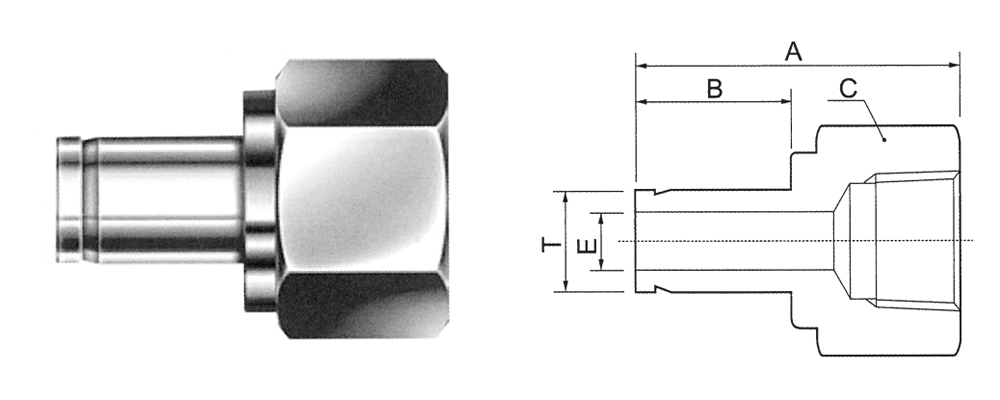

FEMALE ADAPTER/Tube

Connects fractional NB-KSL port to male PT(NPT) thread

CATALOG NUMBER

T TUBE O.D.

PT-NPT FEMALE PIPE
SIZE

A

B

C

E

TAF-02-1

1/4

1/8

33

15.7

14

4.4

TAF-02-2

1/4

1/4

37.1

15.7

19

4.4

TAF-02-3

1/4

3/8

39.5

15.7

22

4.4

TAF-02-4

1/4

1/2

45.5

15.7

27

4.4

TAF-03-1

3/8

1/8

34.3

17.6

14

7.1

TAF-03-2

3/8

1/4

38.1

17.6

19

7.1

TAF-03-3

3/8

3/8

40.4

17.6

22

7.1

TAF-03-4

3/8

1/2

46.7

17.6

27

7.1

TAF-04-2

1/2

1/4

43.4

23.2

19

9.9

TAF-04-3

1/2

3/8

45.5

23.2

22

9.9

TAF-04-4

1/2

1/2

52.3

23.2

27

9.9

TAF-06-4

3/4

1/2

53.8

24.7

27

15

TAF-06-6

3/4

3/4

54.9

24.7

32

15

TAF-06-8

3/4

1"

58.4

24.7

41

15

TAF-08-4

1"

1/2

60.7

30.7

27

18

TAF-08-8

1"

1"

64.2

30.7

41

19.6


Connects metric NB-KSL port to male PT (NPT ) thread

TAF-6-1 1/8 33  15.7  14  4.4
TAF-6-2 1/4 37.1  15.7  19  4.4
TAF-6-3 3/8 39.5  15.7  22  4.4
TAF-8-2 1/4 37.6  16.5  19
TAF-8-3 3/8 39.5  16.5  22
TAF-10-2 10  1/4 38.1  17.6  19  7.1
TAF-10-3 10  3/8 40.1  17.6  22  7.1
TAF-10-4 10  1/2 46.5  17.6  27  7.1
TAF-12-2 12  1/4 43.4  23.2  19  9.1
TAF-12-3 12  3/8 45.5  23.2  22  9.1
TAF-12-4 12  1/2 52.3  23.2  27  9.1
TAF-18-4 18  1/2 54.8  24.7  27  14

All dimensions are in millimeters unless otherwise specified, only for reference subject to change.
