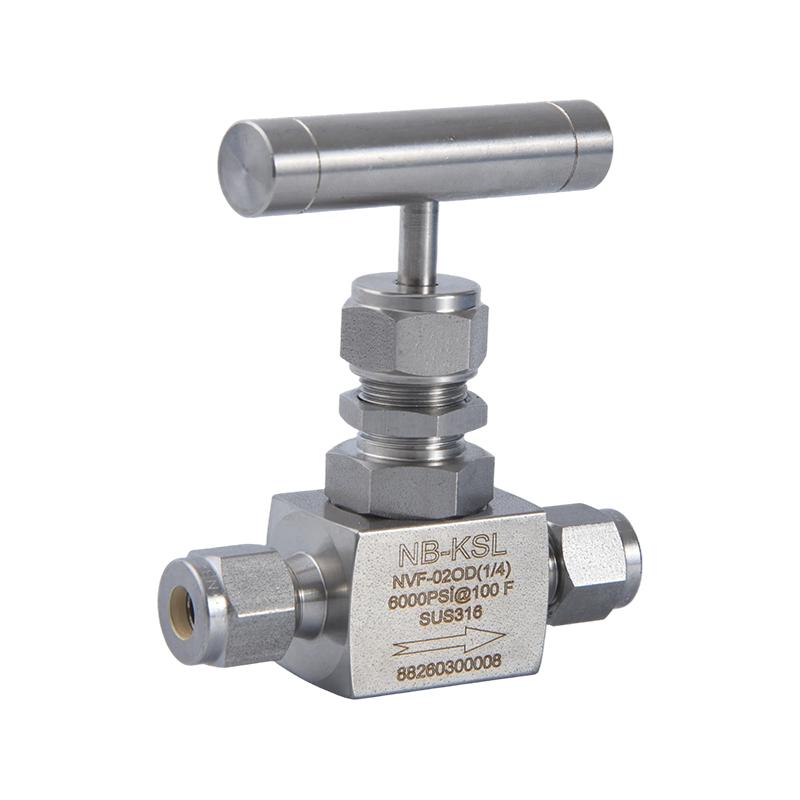

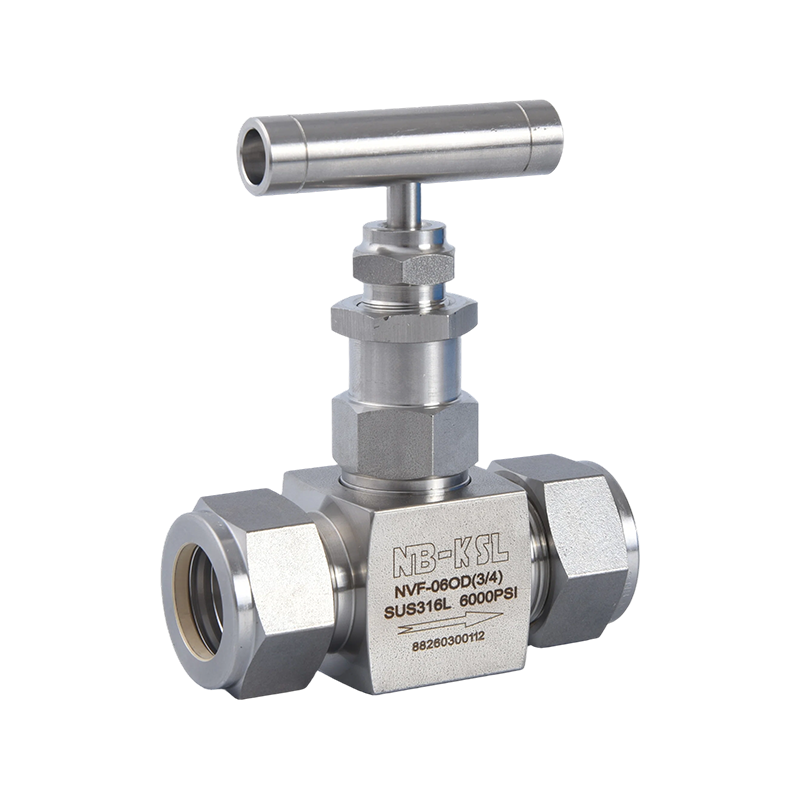

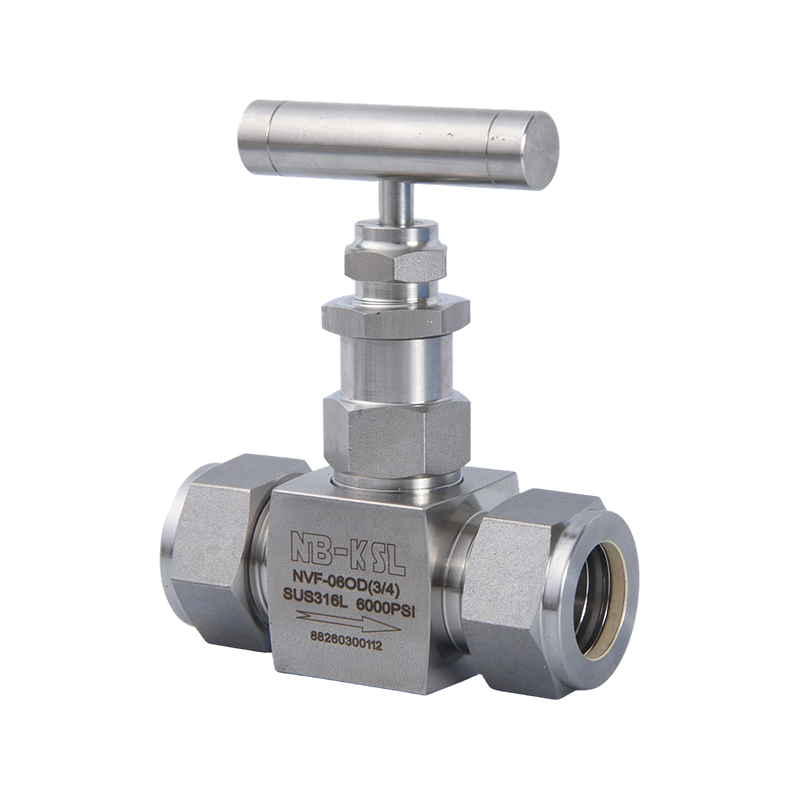

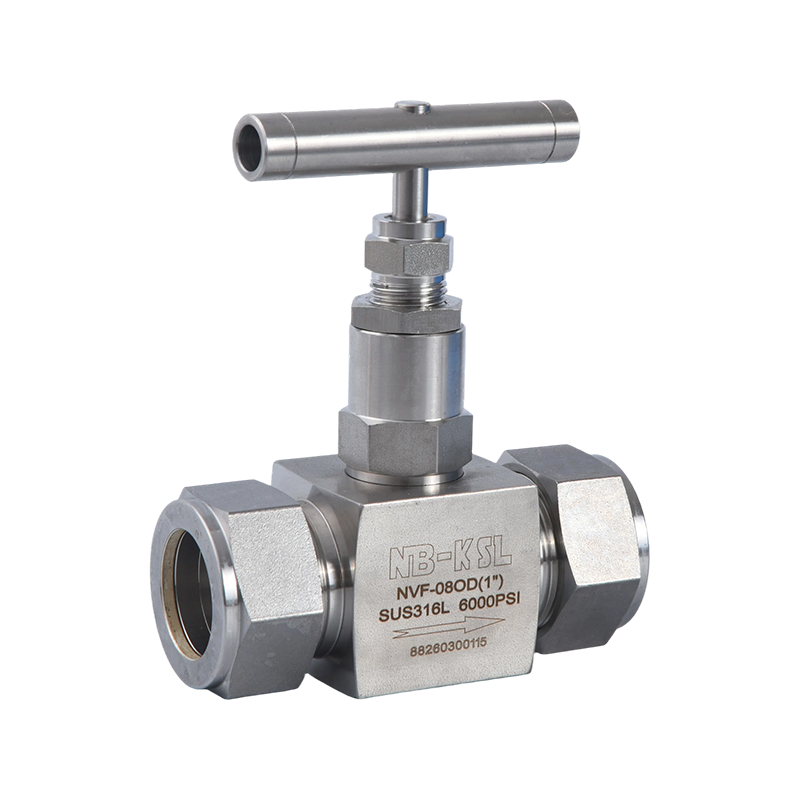

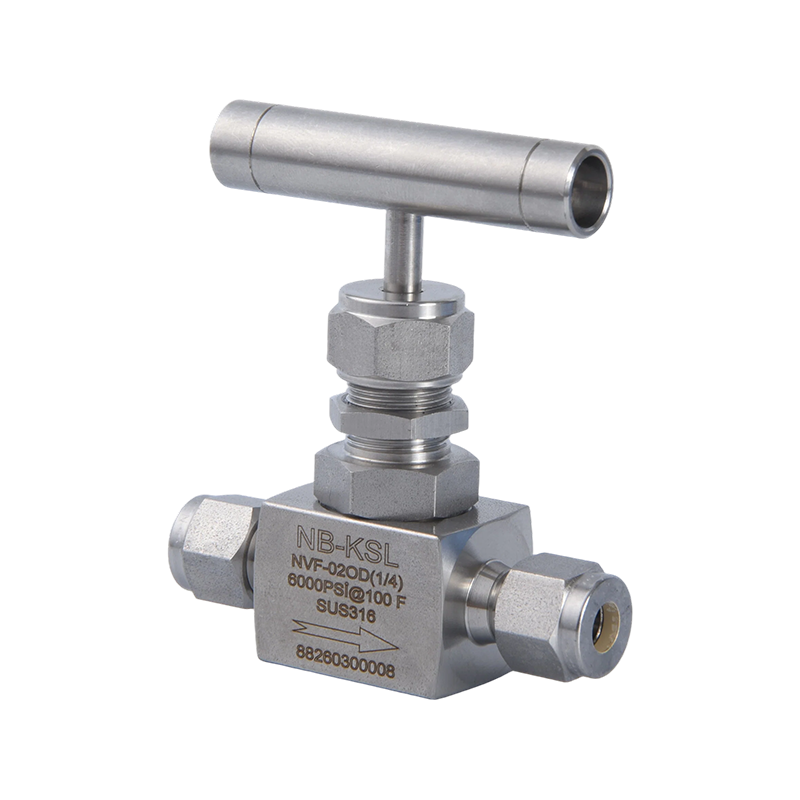

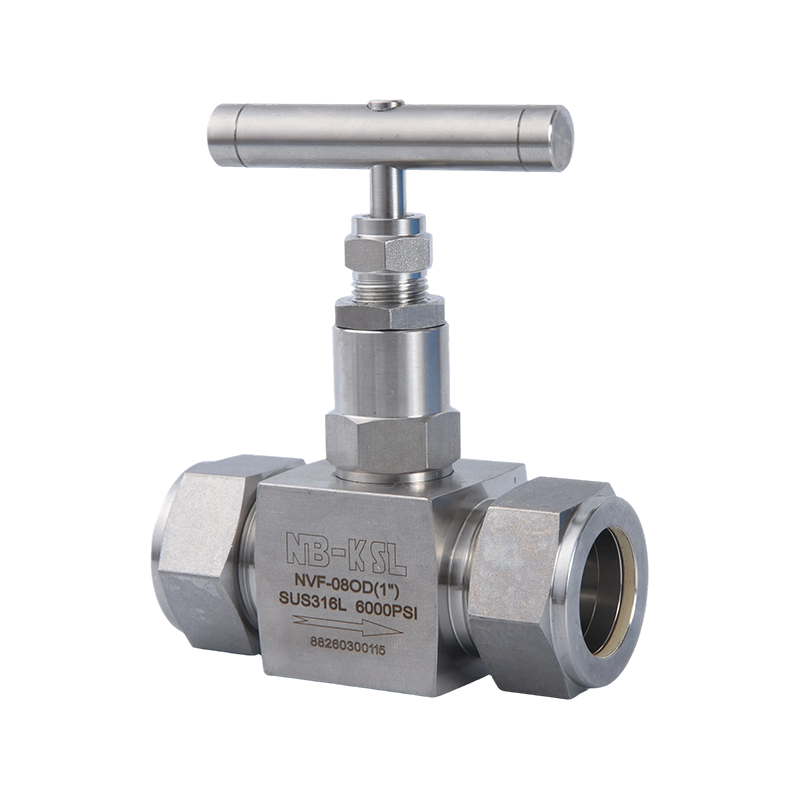

316L Stainless steel screwed bonnet needle valves

Features
Working pressure up to 10.000psig(689bar).
Temperature rating from -65F to 450°F(-54℃ to 232°C) with standard PTFE packing, and up to 1200F(648°℃) with optional Grafoil packing.
Body material available in 316SS, Carbon Steel and Alloy 400(Monel).
Working pressure up to 10.000psig(689bar).
100% factory tesled.

  • Description
  • Contact Us

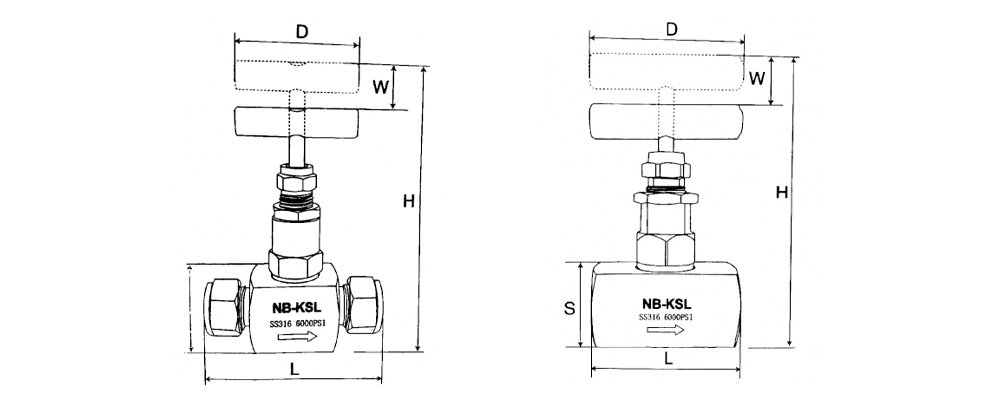

NVF Housing Connector Pin Valve Dimension Table

Order Model

Size

D

D1

L

H

S

W

 NVF-02OD

1/4LOK

55

65

74

22

 NVF-03OD

3/8LOK

55

65

74

22

 NVF-04OD

1/2LOK

55

77

96

28

 NVF-06OD

3/4LOK

55

77

96

28

 NVF-08OD

1"LOK

75

10

96

119

40

 NVF-6OD

6mmLOK

55

65

74

22

 NVF-8OD

8mmLOK

55

65

74

22

 NVF-10OD

10mmLOK

55

65

74

22

 NVF-12OD

12mmLOK

55

77

96

28

 NVF-14OD

14mmLOK

55

77

96

28

 NVF-16OD

16mmLOK

55

77

96

28

 NVF-18OD

18mmLOK

55

77

96

28

 NVF-20OD

20mmLOK

75

10

92

117

38

 NVF-22OD

22mmLOK

75

10

92

117

38

 NVF-25OD

25mmLOK

75

10

96

119

40

NVF Threaded Connection Needle Valve Dimensions Table

Order Model

P

D

D1

L

H

S

W

NVF-02F

1/4

55

55

74

22

NVF-02M

1/4

55

55

74

22

NVF-03F

3/8

55

55

74

22

NVF-03M

3/8

55

55

74

22

NVF-04F

1/2

55

65

96

28

NVF-04M

1/2

55

65

96

28

NVF-06F

3/4

75

10

71

117

38

NVF-08F

1"

75

10

71

119

40


NVF Screw Type Needle Valve External Dimensions Table

Order Model

P

D

D1

L

H

S

W

NVF-10W

10mm

55

108

74

22

NVF-12W

12mm

55

122

96

28

NVF-14W

14mm

55

122

96

28

The above size data is for reference only. Any changes will not be notified separately. If specifications are not indicated, please inquire with the factory for customization.
