External thread check valve

Home / Products / Stainless Steel Check Valves / External thread check valve

External thread check valve

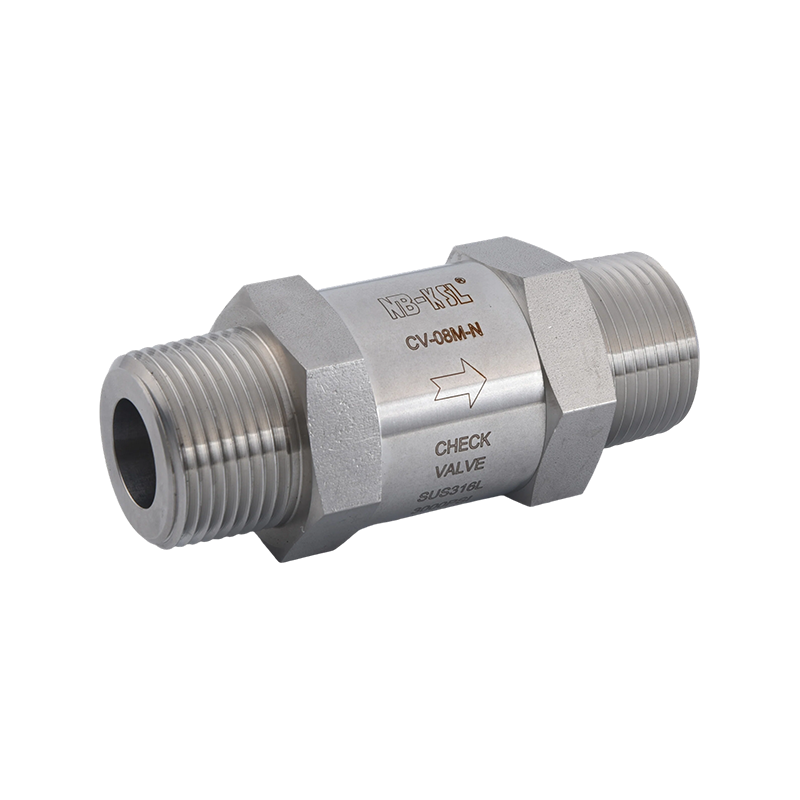

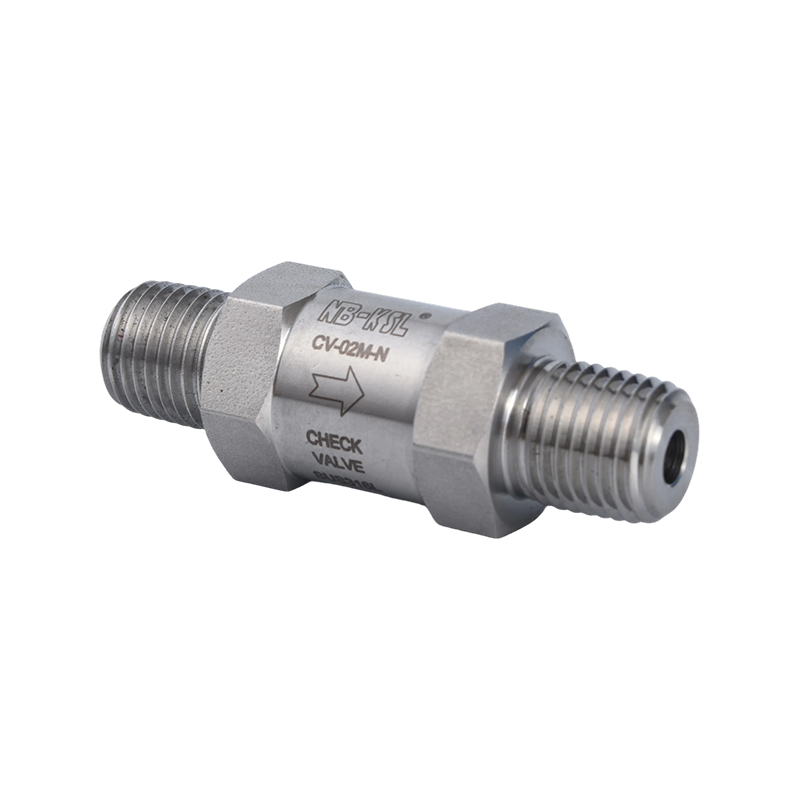

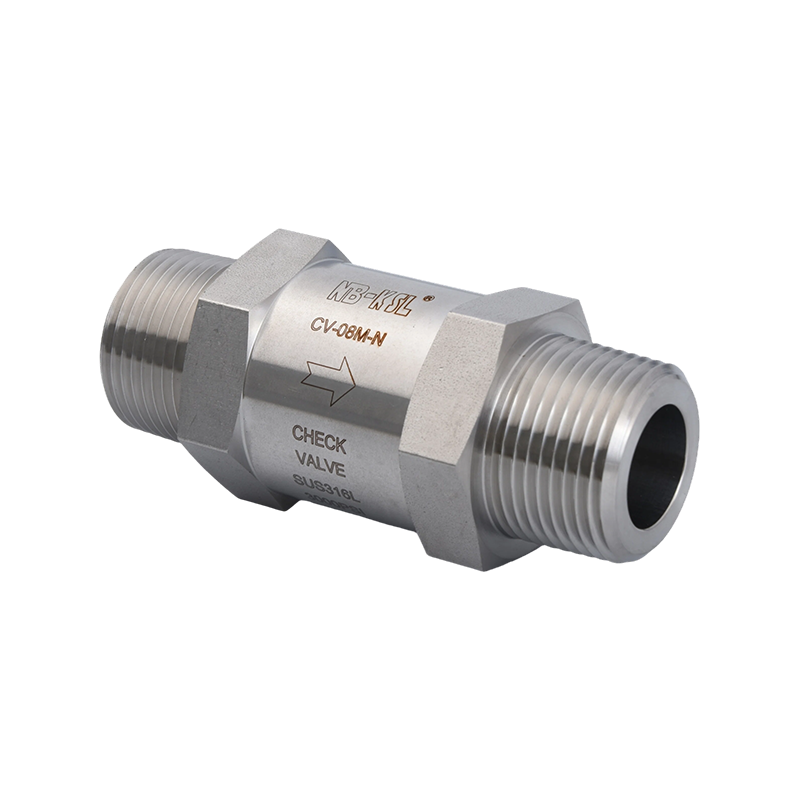

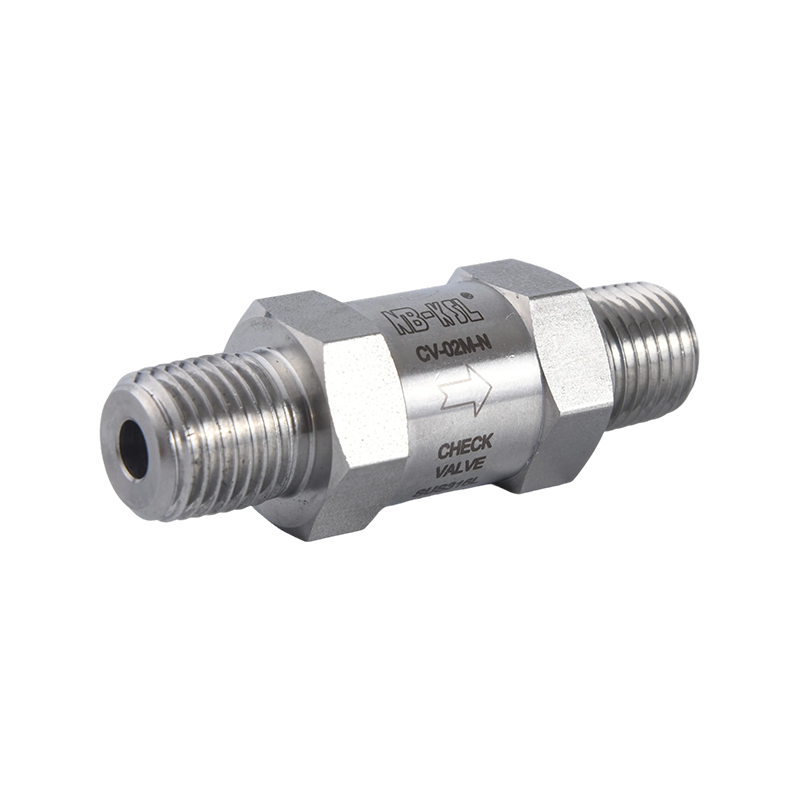

This male-threaded inline check valve features male threads at both ends and a spring-loaded poppet design. Machined from forged 316L stainless steel bar stock, it utilizes an internal spring to maintain a cone-seat seal, allowing unidirectional flow while automatically blocking backflow. With male threads at both ends, it screws directly into the female threaded ports of equipment, valve blocks, or pressure gauge bases without requiring additional adapters, making it an ideal backflow prevention component for instrumentation terminal points. Unlike gravity-actuated check valves, this model does not rely on gravity for resetting and can be installed in any orientation—horizontal or vertical. It protects transmitters, pressure-reducing valves, and pressure gauges from reverse pressure surges and prevents medium backflow or cross-contamination between branch lines.

Contact Us Contact Us
PREV：Internal thread check valve NEXT：External thread VCR check valve
