316L Stainless steel mini female thread needle valve

Home / Products / Stainless Steel Ball Valves / 316L Stainless steel mini female thread needle valve

316L Stainless steel mini female thread needle valve

The 316L stainless steel miniature internal thread needle valve is a precision instrument piping control component, primarily used for high-precision flow regulation and zero-leakage shut-off of fluid media. As a variant of the gate valve, this product achieves micron-level control of flow and pressure by changing the valve seat flow area through the linear displacement of the needle valve core. The valve body is forged from 316L round steel, rather than cast. The forging process eliminates internal porosity, sand holes, and loose structures, ensuring the valve body's tightness under high pressure.

  • Description
  • Contact Us

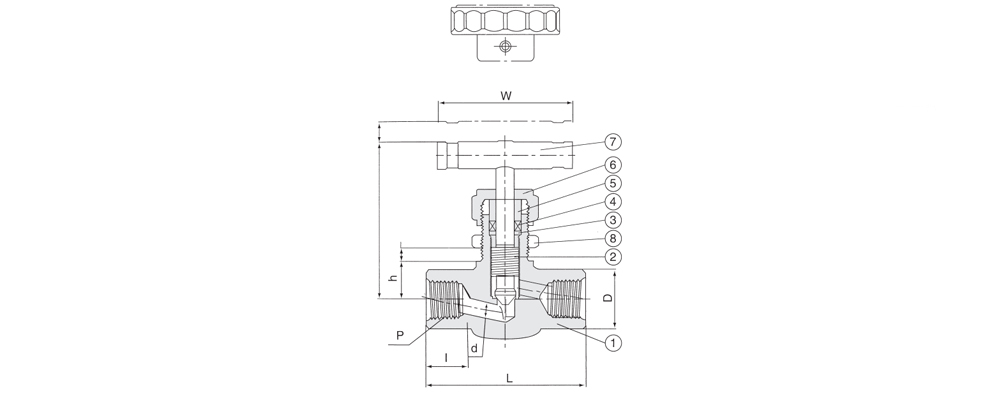

Serial Number

Name

SUS316 valve

Body

316 stainless steel

Stem

316 stainless steel

Gasket

316 stainless steel

Packing

PTFE

Bonnet

316 stainless steel

Fix Screw

316 stainless steel

Handle

aluminum alloy

Fix Nut

304 stainless steel
