316L Stainless Steel Compression fitting external thread branch tee

Home / Products / Stainless Steel Tube Fittings / Tube To Male Pipe / 316L Stainless Steel Compression fitting external thread branch tee

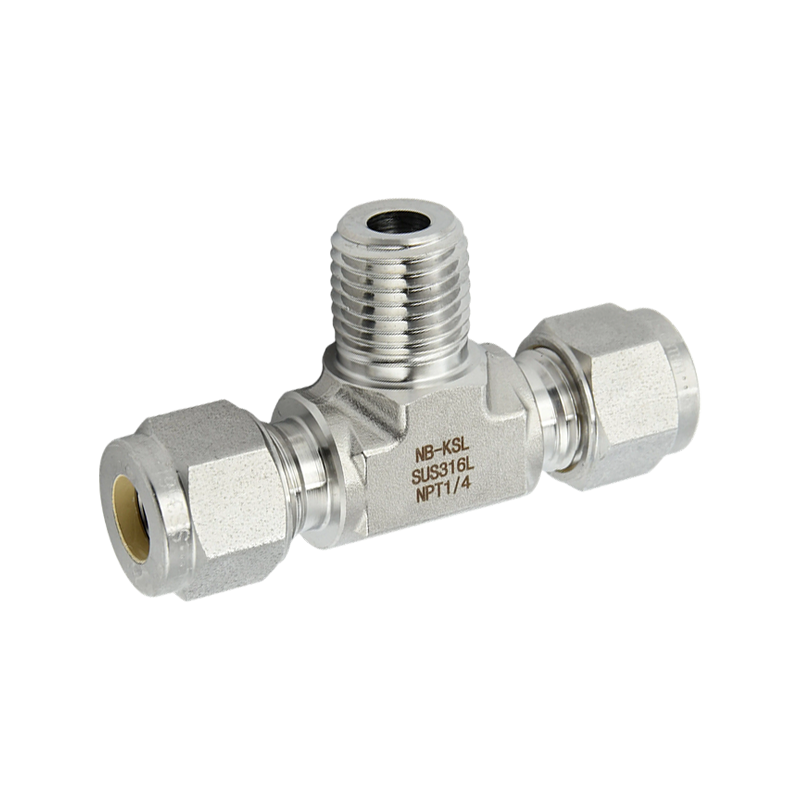

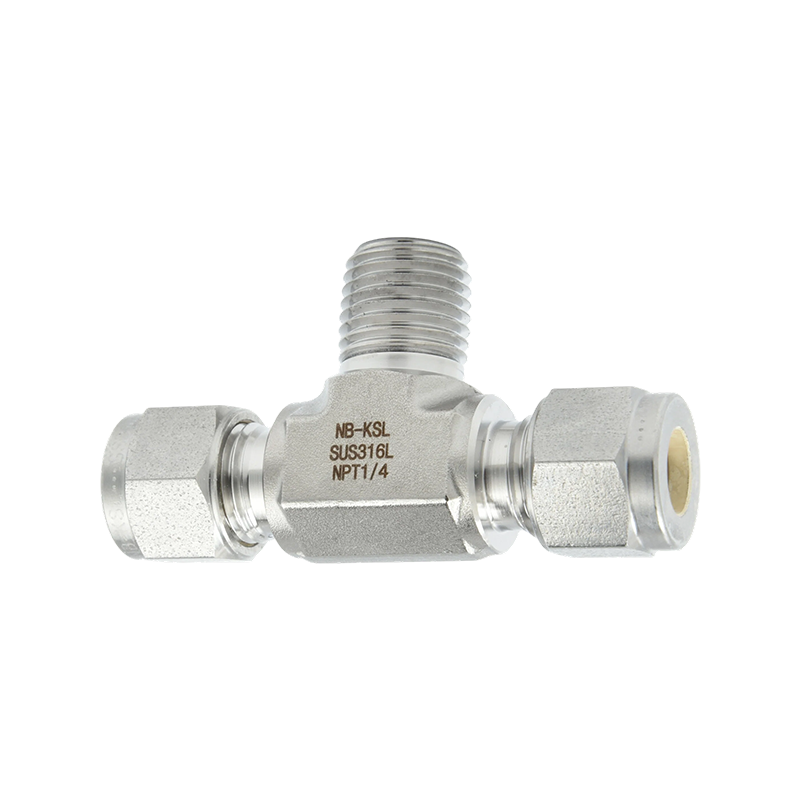

316L Stainless Steel Compression fitting external thread branch tee

The Male Branch Tee is an essential component in instrumentation piping systems. It features a male threaded port on the side branch, while the two ports on the run are compression tube fittings. This design allows a main tubing line to extend horizontally while simultaneously creating a perpendicular connection to valves, transmitters, or pressure vessels.

Core Product Advantages

Integrated Branching Structure:
This fitting cleverly combines tubing connection with equipment branching. Compared to using multiple adapters, the one-piece forged T-structure significantly reduces potential leak points and provides superior resistance to vibrational fatigue.

Ultimate 316L Corrosion Protection:
Manufactured from ultra-low carbon 316L stainless steel, it excels in resisting pitting and intergranular corrosion. It ensures long-term system stability even in harsh chemical processing, offshore platforms, or hydrogen applications.

Gas-Tight High-Pressure Sealing:
The two run ports utilize classic double-ferrule technology, while the male threaded branch is precision-ground. Whether operating under high pressures up to 6000 psig or handling highly penetrative gases (such as Hydrogen or Helium), it maintains a consistent “zero-leak” performance.

Convenient Installation Flexibility:
The male threaded end supports various international standards (NPT, BSPT, etc.), allowing for easy integration into various equipment ports. Following standard installation procedures, a reliable seal can be achieved with a simple wrench, and the fitting supports multiple disassembly and reassembly cycles.

Contact Us Contact Us
PREV：316L Stainless Steel Compression fitting external thread side tee NEXT：No next product
  • Description
  • Contact Us

(METRIC)

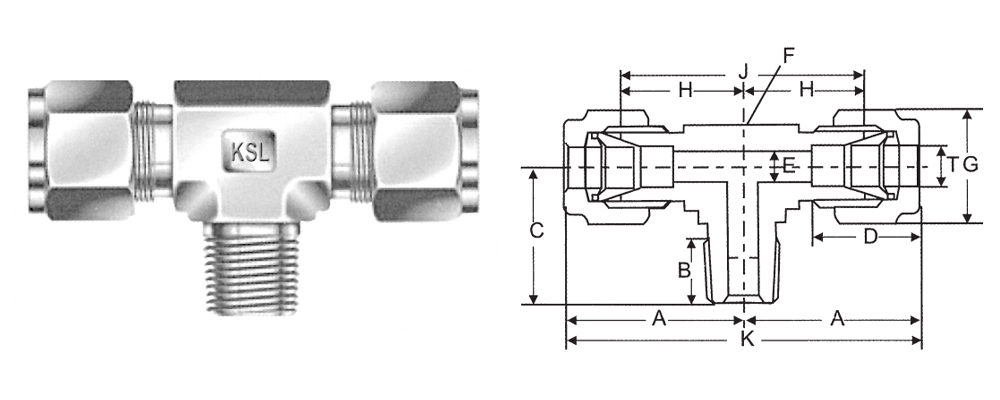

CATALOG NUMBER

T TUBE O.D.

PT-NPT MALE PIPE SIZE

A

B

C

D

E

F

G

H

J

K

MBT-4-1

4

1/B

25.7

10

19.6

13.7

3

12.7

12

19

38

51.4

MBT-4-2

4

1/4

27.5

14

24

13.7

3

16

12

20.8

41.6

55

MBT-6-1

6

1/8

274

10

19.6

15.8

4.8

12.7

14

19.6

39.2

54.8

MBT-6-2

6

1/4

292

14

24

15.8

4.8

16

14

21.4

42.8

58.4

MBT-6-3

6

3/B

302

14

24.5

15.8

4.8

17.5

14

22.4

44.8

60.4

MBT-6-4

6

12

31.7

19

33

15.8

4.8

20.6

14

23.9

47.8

63.4

MBT-8-1

8

1/8

30.1

10

21

16.7

6

16

16

22.4

44.8

602

MBT-8-2

8

1/4

30.1

14

24

16.7

6

16

16

22.4

44.8

602

MBT-8-3

8

3/B

30.8

14

24.5

16.7

6

17.5

16

23.1

46.2

61.6

MBT-8-4

8

1/2

32.6

19

33

16.7

6

20.6

16

24.9

49.8

652

MBT-10-1

10

1/8

33.5

10

22.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-2

10

1/4

33.5

14

26.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-3

10

3/B

33.5

14

26.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-4

10

12

33.5

19

33

19.6

7.9

20.6

19

25.9

51.8

67

MBT-12-2

12

1/4

36.7

14

28.2

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-3

12

3/B

36.7

14

28.2

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-4

12

12

36.7

19

33

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-6

12

3/4

38.8

19

36.8

23.8

9.5

28

22

28

56

77.6

MBT-14-3

14

3/B

39.5

14

29

24.8

11.1

22

27

28.7

57.4

79

MBT-14-4

14

12

39.5

19

34

24.8

11.1

22

27

28.7

57.4

79

MBT-14-6

14

314

38.8

19

36.8

24.8

11.1

28

27

28

56

77.6

MBT-16-3

16

3/B

39.1

14

29

24.4

12.7

22

27

28.7

57.4

782

MBT-16-4

16

1/2

39.1

19

34

24.4

12.7

22

27

28.7

57.4

782

MBT-16-6

16

3/4

38.4

19

36.8

24.4

12.7

28

27

28

56

76.8

MBT-18-3

18

3/B

38.8

14

32.5

24.8

15.1

28

30

28

56

77.6

MBT-18-4

18

1/2

38.8

19

36.8

24.8

15.1

28

30

28

56

77.6

MBT-18-6

18

34

38.8

19

36.8

24.8

15.1

28

30

28

56

77.6

MBT-20-4

20

1/2

46

19

41.7

25.5

15.9

34.5

32

35.5

71

92

MBT-20-6

20

34

46

19

41.7

25.5

15.9

34.5

32

35.5

71

92

MBT-22-4

22

12

46

19

41.7

25.5

18.3

34.5

32

35.5

71

92

MBT-22-6

22

3/4

46

19

41.7

25.5

18.3

34.5

32

35.5

71

92

MBT-25-4

25

1/2

49.5

19

41.7

31.7

21.8

34.5

38

36.8

73.6

99

MBT-25-6

25

34

49.5

19

41.7

31.7

21.8

34.5

38

36.8

73.6

99

MBT-25-8

25

1

49.5

22

44.5

31.7

21.8

34.5

38

36.8

73.6

99


(FRACTIONAL)

MBT-01-1

1/8

1/B

26.1

10

19.6

14

2.4

12.7

12

18.6

37.2

52.2

MBT-01-2

1/8

1/4

28

14

24

14

2.4

16

12

20.5

41

56

MBT-02-1

1/4

1/8

27.4

10

19.6

15.8

4.8

12.7

14

19.6

39.2

54.8

MBT-02-2

1/4

1/4

292

14

24

15.8

4.8

16

14

21.4

42.8

58.4

MBT-02-3

1/4

3/8

302

14

24.5

15.8

4.8

17.5

14

22.4

44.8

60.4

MBT-02-4

1/4

12

31.7

19

33

15.8

4.8

20.6

14

23.9

47.8

634

MBT-03-1

3/8

1/B

30.7

14

21

19.6

7.1

16

17

23.1

46.2

61.4

MBT-03-2

3/8

1/4

30.7

14

24

19.6

7.1

16

17

23.1

46.2

61.4

MBT-03-3

3/8

3/B

30.7

14

24.5

19.6

7.1

17.5

17

23.1

46.2

61.4

MBT-03-4

3/8

12

33.5

19

33

19.6

7.1

20.6

17

25.9

51.8

67

MBT-04-2

1/2

1/4

36.1

14

28.2

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-3

1/2

3/8

36.1

14

28.2

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-4

1/2

1/2

36.1

19

33

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-6

1/2

314

382

19

36.8

23.4

10.4

28

22

28

56

76.4

MBT-05-3

5/8

3/B

39.1

14

29

24.4

12.7

22

27

28.7

57.4

782

MBT-05-4

5/8

12

39.1

19

34

24.4

12.7

22

27

28.7

57.4

782

MBT-05-6

5/8

34

38.4

19

36.8

24.4

127

28

27

28

56

768

MBT-06-4

3/4

12

38.4

19

36.8

24.4

15.7

28

30

28

56

76.8

MBT-06-6

3/4

314

38.4

19

36.8

24.4

15.7

28

30

28

56

76.8

MBT-08-6

1"

3/4

49.5

19

41.7

31.7

22.4

34.5

38

36.8

73.6

99

MBT-08-8

1"

1"

49.5

22

44.5

31.7

22.4

34.5

38

36.8

73.6

99
